CE Certified Surface Mounted JS-31 screw connect door switch sensor in ABS material for door or window
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
www.jsusc.com
1.0 Specification
Surface mounted magnetic switch.
Ideal for wooden door/window.
*Housing: ABS material;fireproof ABS housing is available
*Standard color:white/brown/black color available
*Gap≥20mm,can be customized
*Certificates:CE,FCC,ROHS
*Screw terminal connect surface mounted
*Common out put is NC type,
*Max current:0.5A
*Max voltage:100V
*Max power:10W
*Initial resistance:200mΩ
2.o Packaging information:
2.o Packaging information:
Inner packing: 10pcs/bag
Carton: 600pcs/carton
Carton size: 37.5*29.5*30CM
G.W.:20.00KGS
N.W.:19.40KGS

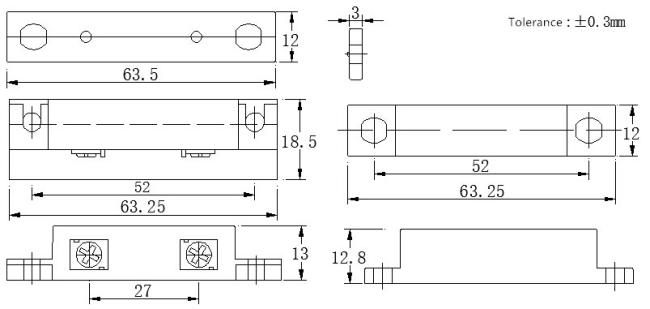

3.0 Dimension(mm)
4.0 Order information
| Specification | Output | Casing Material | Action Gap(mm) | Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ) | MOQ(PCS) |
| NC-ABS-1525 | NC | ABS | 15-25 | 0.5A/100V/10W/200mΩ | 0 |
| NC-ABS-2025 | NC | ABS | 20-25 | 0.5A/100V/10W/200mΩ | 1000 |
| NO-ABS-1525 | NO | ABS | 15-25 | 0.5A/30V/3W/200mΩ | 500 |
| COM-ABS-1525 | changeover | ABS | 15-25 | 0.2A/30V/3W/200mΩ | 500 |
Key words : magnetic contact reed switch magnetic switch sensor door switch sensor surface mount switch
