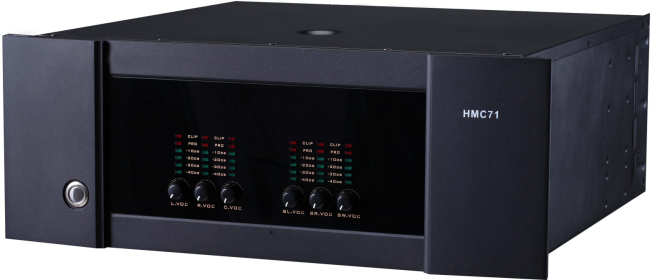

Professional 8channel power amplifier for KTV Cinema Entertainment Audio and Video System

Description

Meet current fashion needs with high-end 5.1 channel design;

● Intelligent voltage limiting circuit, in case of overload, the power amplifier output does not cut off waves;

● Full function protection: soft start upon startup, overload, overheating, short circuit, DC, high-frequency protection, peak voltage limit, intelligent peak shaving protection, input signal limiter, surge limiter, output zero current switch, startup delay;

The power amplifier motherboard adopts a modular design, which can make daily maintenance very convenient;

● High current direct output terminals, providing convenient wiring methods and reliable connections;

Industrial production, using automatic plug-in technology and peak welding technology, with a high degree of consistency.

Quick Detail

Output power: 5 × 400W+800W/8 Ω, 5 × 700W+1500W/4 Ω

Technical parameters:

Frequency response (1W, 0.1% THD,+0/-0.5dB): 20Hz~20kHz

Total harmonic distortion (1W, 1kHz): ≤ 0.05%

Conversion rate: 20V/ μ S

Damping coefficient (1kHz): ≥ 400

Signal to noise ratio: ≥ 110dB

● Channel separation: ≥ 85dB

Input sensitivity (rated power @ 8 ohms, 1kHz): 0.775V

Input impedance: 20K Ω balanced input/10K Ω unbalanced input

Net weight/gross weight: 28Kg/33Kg

Dimensions: 485mm x 485mm x 178mm (4U), 580mm x 560mm x 250mm (packaging size)

Working voltage: AC 220V/50Hz
