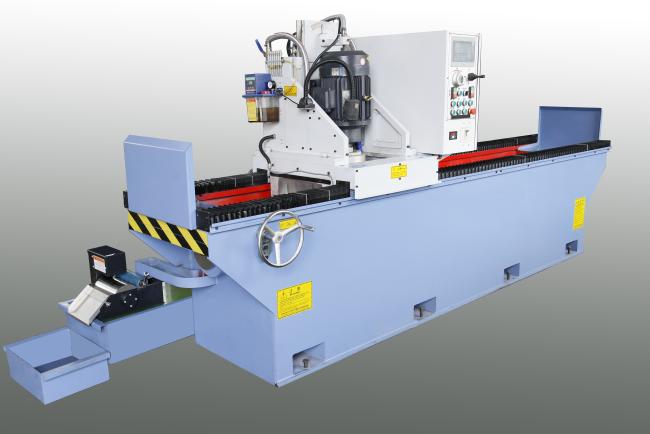

Variable Frequency Motor Straight Knives Grinding Machine Long Life
With 60 years of knife sharpening experience, our company provides the best knife sharpening technical solutions, therefore, Our LL Grinding Machine is fully equipped with knife sharpening tools
MODEL : LL -1700 / 2200
(Professional grinding High Speed Steel)
1.Machine base, high rigidity steel welded construction.
2.Solid hardened guideways can achieve greatly enhanced moving accuracy.
3.Worktable features a division sinusoidal electro-magnetic chuck.
4.Down feed system is driven by a variable frequency motor and transmitted through a play free screw and controlled by handwheel.
5.Grinding motor, with change wheel design.
6.Grinding tool, ring wheels, SDC and CBN wheels.
7.Traverse drive is driven by a variable frequency motor, using gear and rack transmission with stepless speed regulation, achieving a stable operation speed of 0-20 meters/min.
8.Lubrication system features an adjustable central manual lubrication mechanism.
Technical Parameter :
| Grinding length | 1700 / 2270 mm |
| Electro-magnetic chuck | 1700 / 2270 mm x 180mm swivellable 90°degrees |
| Pass height | 150mm |
| Down feed | 0.04mm |
| Traverse drive speed | 1-20 m/min |
| Guideways | Linear guideways |
| Grinding wheel | Ø255 X Ø195 X 125H mm |
| Gross power | 9KW (3 phase / 380V / 50HZ) |
| Grinding motor | 7.5KW (1450 RPM) |
| Down feed motor | Servo Motor |
| Traverse drive motor | Variable Frequency |
| Water pump | 0.4KW |
| Net weight | 1.04 / 1.22kg |
| Machine main size | L2800 / 3215 x W950 x H1500 mm |
| Colour | White |
Re-sharpened Knives
