4S 7A 200V Li-lion Lifepo4 Battery BMS Protect Board 7A For Electronic car
Price:
$1.60/pieces 2-999 pieces
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
ENERKEY
Product Description
PCM Enerkey BMS 3S 4S Protect Board For 16.8V Li-lion/LiFePO4 Battery Packs 8A Current
Product Description
|
Electric Parameter
|
|
|
|
|
|
|
||||||
|
Model:JW-B4S7A-260 V1
|
|
|
|
|
|
|
||||||
|
NO.
|
Project
|
|
Min.
|
Typ.
|
Max.
|
Unit
|
||||||
|
1
|
voltage
|
Charging voltage
|
|
16.8
|
|
V
|
||||||
|
|
|
Balance voltage for single cell
|
/
|
/
|
/
|
V
|
||||||
|
2
|
Current
|
Balance current for single cell
|
/
|
/
|
/
|
mA
|
||||||
|
|
|
Current consumption
|
|
|
50
|
uA
|
||||||
|
|
|
Maximal continuous charging current
|
|
|
7
|
A
|
||||||
|
|
|
Maximal continuous discharging current
|
|
|
7
|
A
|
||||||
|
3
|
Over charge protection
|
Overcharge detection voltage for single cell
|
4.00
|
4.25
|
4.50
|
A
|
||||||
|
|
|
Overcharge detection delay time
|
0.5
|
|
1.5
|
S
|
||||||
|
|
|
Overcharge release voltage for single cell
|
4.10
|
4.15
|
4.20
|
V
|
||||||
|
4
|
Over discharge protection
|
Overdischarge detection voltage for single cell
|
2.62
|
2.7
|
2.78
|
V
|
||||||
|
|
|
Overdischarge detection delay time
|
500
|
|
1500
|
mS
|
||||||
|
|
|
Overdischarge release voltage for single cell
|
2.9
|
3.0
|
3.1
|
V
|
||||||
|
5
|
Overcurrent protection
|
Over current detection voltage
|
175
|
200
|
215
|
mV
|
||||||
|
|
|
Over current detection current
|
15
|
20
|
25
|
A
|
||||||
|
|
|
Detection delay time
|
500
|
|
1500
|
mS
|
||||||
|
|
|
Release condition
|
Cut load,Automatic recovery
|
|
|
|
||||||
|
6
|
Short protection
|
Detection condition
|
Exterior short circuit
|
|
|
|
||||||
|
|
|
Detection delay time
|
200
|
|
500
|
μS
|
||||||
|
|
|
Release condition
|
Cut load,Automatic recovery
|
|
|
|
||||||
|
7
|
Resistance
|
Protection circuitry (MOSFET)
|
|
|
50
|
mΩ
|
||||||
|
8
|
Temperature
|
Operating Temperature Range
|
-20
|
|
60
|
℃
|
||||||
|
|
|
Storage Temperature Range
|
-20
|
|
85
|
℃
|
||||||
Product Use Tutorial

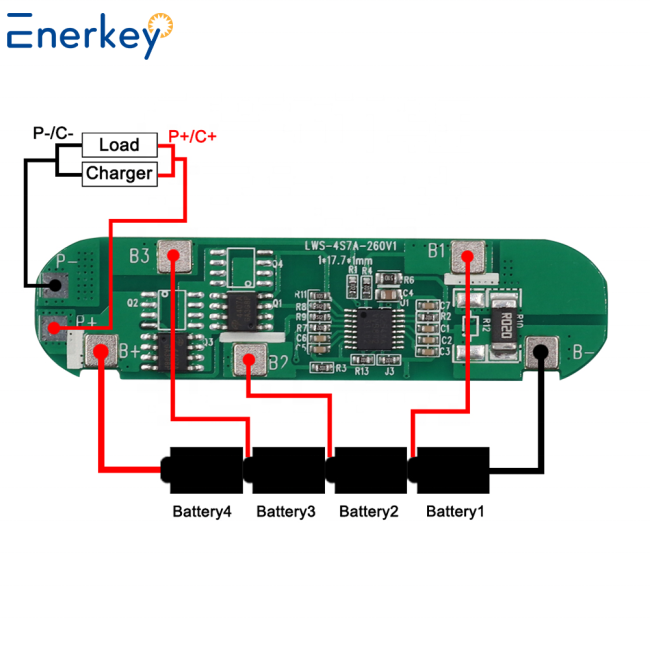

Wiring Diagram
