PCIe 2 Channel HD SDI Video Capture Card for PC H.264 Encoding 1920x1080P60 Resolution
Factory sales PCIe 2 channel hd SDI video capture card for PC

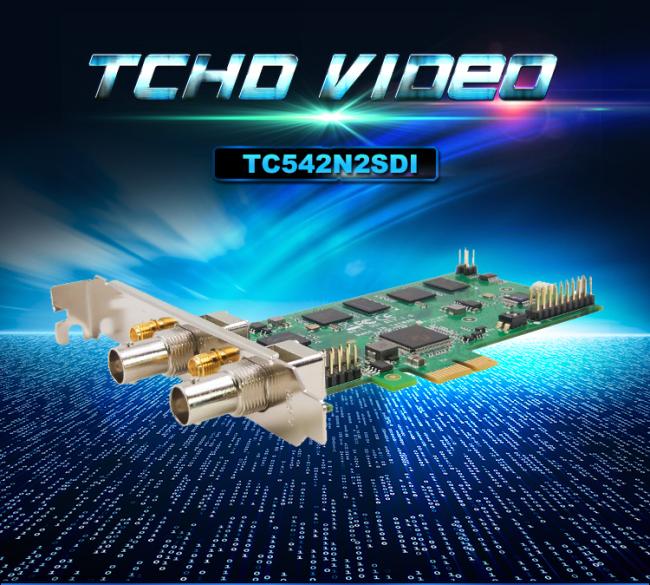

TC542N2SDI with 2SDI inputs and 2SDI loop through outputs, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.
Max.FPS | 1920x1080p@60/50fps in 1920x1080p@60/50fps out |
Recording Mode | Sofware Compression,Real-Time Mode |
Dimension | 122.3x68.9(mm) PCIE Low profile |
Interface | PClex1(Gen2) |
Video Input | 2xSDl |
Video Output | 2xSDl(Loop-through) |
Display Video Format | YV12,NV12,YUY2,RGB24,RGB32 |
Display Video Resolution | 3G-SDI 1920x1080p@60/50fps
HD-SDI 1920x1080p@30/25124fps 1920x1080i@60/50fps 1280x720p@60/50fps
SD-SDI 720x480i@60fps 720x576i@50fps |
Recording Video Format | H.264 (Software Compression) |
Recording Video Resolution | 3G-SDI 1920x1080p@60/50fps
HD-SDI 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60/50fps
SD-SDI 720x480i@60fps 720x576i@50fps |
Audio Input | 2xSDI Embedded audio |
Audio Format | 2xSDl Embedded audio (Loop-through) |
I/O | 16 |
Watch Dog | Yes |
Multiple Cards | ∞ |

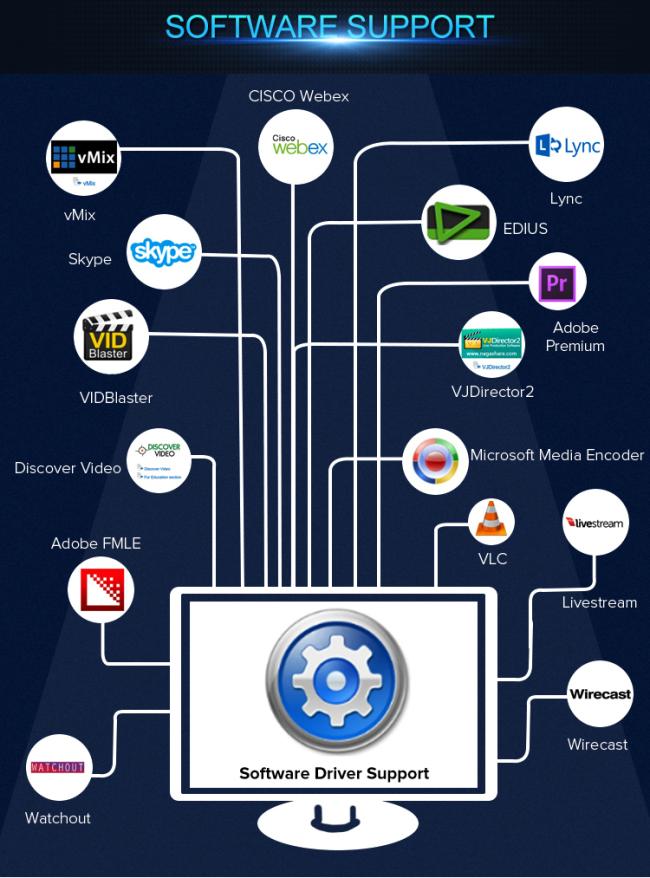

SDK | VC++ / C# /.NET / VB / V4L2 |
System Requirements | |
OS Support | Windows XP / Vista / Windows 7 Windows 8 /Windows 8.1/ Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) |
