Product Description
Product Description

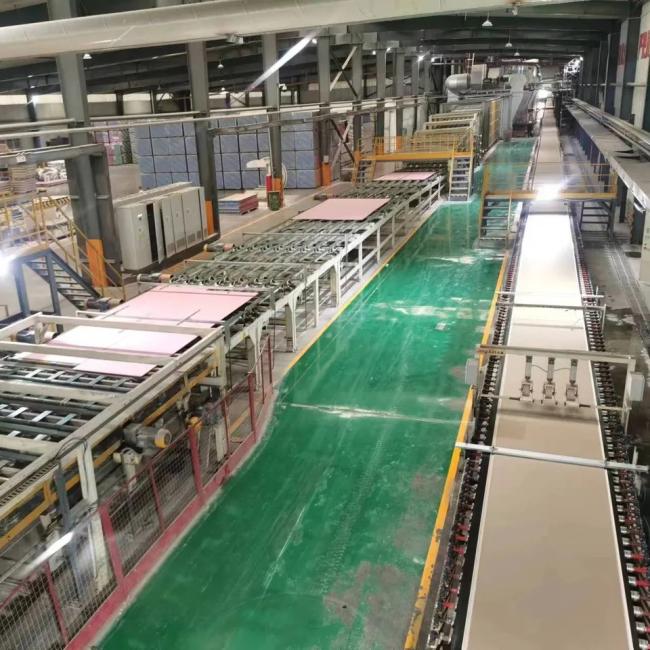

Gypsum board production line
The gypsum board production line is a manufacturing system designed to produce gypsum boards, also known as drywall or plasterboards. It typically consists of various equipment and machinery that work together to process gypsum, a mineral material, into flat panels used for interior walls and ceilings in construction.
Drywall features
Gypsum boards also named Drywall are known for their exceptional characteristics, including fire resistance, sound insulation, ease of installation,versatility, durability, moisture resistance, and sustainability. These qualities make them highly sought-after for
the creation of functional and aesthetically pleasing interior spaces.
the creation of functional and aesthetically pleasing interior spaces.
Technical Parameter
Common specifications and related parameters of gypsum board production line (for reference only)
Annual output（㎡） | Equipment size (m) | Power (kw) | Speed (m/min) | Drying method | Configuration |
100 | 80x12 | 150 | 2 | Heat-conducting oil | Motor: high quality brand |
200 | 100x15 | 200 | 4 | Heat-conducting oil | Motor: high quality brand |
500 | 140x15 | 420 | 10 | Heat-conducting oil Hot air | Motor:Siemens |
1000 | 170x20 | 600 | 20 | Heat-conducting oil Hot air Direct combustion | Motor:Siemens |
1500 | 260x30 | 700 | 30 | Heat-conducting oil Hot air Direct combustion | Motor:Siemens Gear Box: SEW. Pneumatic elements: SMC |
2000 | 300x25 | 1200 | 40 | Heat-conducting oil Hot air Direct combustion | Motor:Siemens Gear Box: SEW. Pneumatic elements: SMC |
3000 | 370x35 | 1700 | 60 | Heat-conducting oil Hot air Direct combustion | Motor:Siemens Gear Box: SEW. Pneumatic elements: SMC |
5000 | 550x45 | 2500 | 100 | Heat-conducting oil Hot air Direct combustion | Motor:Siemens Gear Box: SEW. Pneumatic elements: SMC |
6000 | 600x45 | 2800 | 115 | Heat-conducting oil Hot air Direct combustion | Motor:Siemens Gear Box: SEW. Pneumatic elements: SMC |
Flow chart
1. Paper Rack: The protective paper is loaded onto a rack and transferred to the forming and conveying section within the frame body of the production line.
2. Raw Material Measurement: Gypsum powder is precisely measured and introduced into the beater or mixing equipment.
3. Beater: The measured gypsum powder, along with other additives and materials, is thoroughly mixed in the beater to create a homogeneous mixture. This mixture is then spread evenly onto the protective paper.
4. Molding Machine: The gypsum mixture-coated protective paper is fed into the molding machine, which applies pressure and extrusion to shape the gypsum board.
5. Conveyor: The newly formed gypsum boards are conveyed on a conveyor belt, allowing them to undergo initial and intermediate stages of coagulation or solidification.
6. Dryer: The partially solidified gypsum boards are transferred to a dryer, where they are subjected to controlled heat and airflow to remove excess moisture, resulting in fully dried boards.
7. Palletizer: Once dried, the gypsum boards are transported to a palletizer. In this stage, the boards' edges are palletized or stacked neatly, preparing them for packaging.
2. Raw Material Measurement: Gypsum powder is precisely measured and introduced into the beater or mixing equipment.
3. Beater: The measured gypsum powder, along with other additives and materials, is thoroughly mixed in the beater to create a homogeneous mixture. This mixture is then spread evenly onto the protective paper.
4. Molding Machine: The gypsum mixture-coated protective paper is fed into the molding machine, which applies pressure and extrusion to shape the gypsum board.
5. Conveyor: The newly formed gypsum boards are conveyed on a conveyor belt, allowing them to undergo initial and intermediate stages of coagulation or solidification.
6. Dryer: The partially solidified gypsum boards are transferred to a dryer, where they are subjected to controlled heat and airflow to remove excess moisture, resulting in fully dried boards.
7. Palletizer: Once dried, the gypsum boards are transported to a palletizer. In this stage, the boards' edges are palletized or stacked neatly, preparing them for packaging.
