Golden Eagle PCB Metal Etching Machine for Metal Object Plate Thickness 0.05mm -3.2mm
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

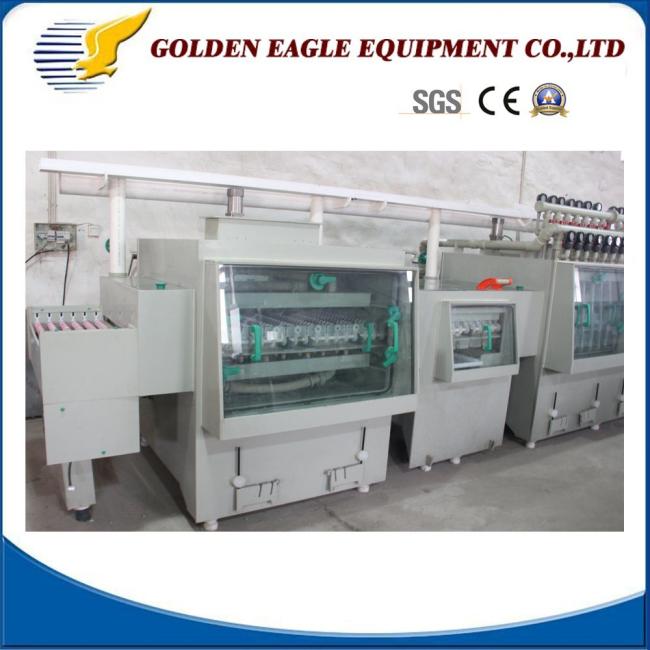

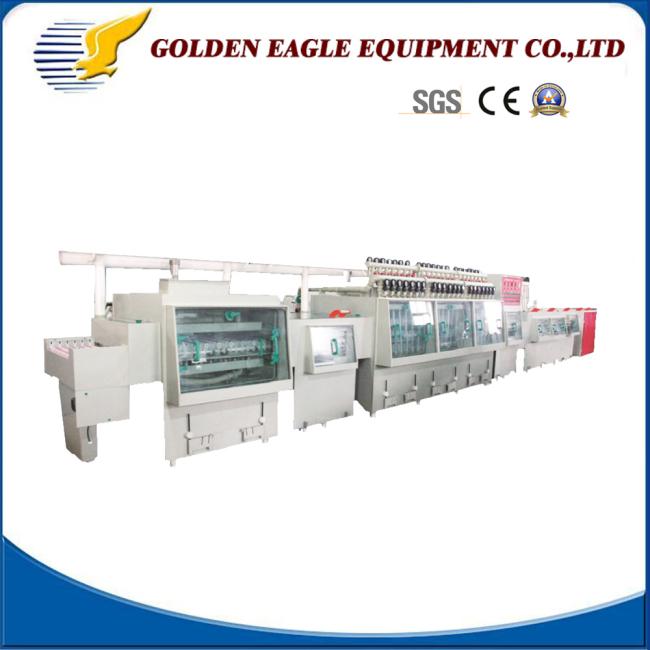

Automatic PCB Etching Machine / PCB Machine (PCB etching equipment)
Automatic PCB Etching Machine / PCB Machine (PCB etching equipment)
PCB Etching Machines / Circuit Board Making Machine
PCB Etching Machines / Circuit Board Making Machine, iunlcuding etching and stripping process. It used for double-sided board or multi layer PCB or thin copper etching uses with high precision.
Automatic PCB Etching Machine / PCB Machine (PCB etching equipment)
PCB Etching Machines / Circuit Board Making Machine
| Presicion Etching /Stripping Production Line | |||
| Specification introduction | |||
| Economy configuration | 15mm PP plate & Stainless Steel Shaft | ||
| Field dimension | 12500mm(L)*1650mm(W)*1700mm(H) | ||
| Conveyor | Transact metal panel thickness | 0.5~5MM | |
| Conveyor height | 900MM (+/-25mm) | ||
| Conveyor width | 650MM | ||
| Power | Voltage/phase/frequency | 380V,3Phase,50Hz, | |
| Control box | Control Button Panel | ||
| Power consumption | ≈46.5KW(include heater) | ||
| Water consumption | city water consumption | 0.5Ton/Hour | |
| DI water consumption | -------- | ||
Pipe diameter | City water flow pipe diameter | DN32 | |
| Waste water drainpipe diameter | DN40 | ||
| Exhaust emission pipe diameter | 160mm | ||
| Transportation | Operation speed | 0.5-5 M/MIN (adjust) | |
| Transmission wheel | Rubber Wheel | ||
| panel space | 2" | ||
| Conveyor work flow | From L to R | ||
Process:
Load (450mm) ---Etching 1, 2 (2000mm)--- Pressure rinse (1000mm) ---Checking(300mm)--- Stripping(2000mm) ----Pressure Rinse(1500mm)---- Cold dry(500mm)----Hot dry (1000mm)-----Unload (450mm)PCB Etching Machines / Circuit Board Making Machine, iunlcuding etching and stripping process. It used for double-sided board or multi layer PCB or thin copper etching uses with high precision.
