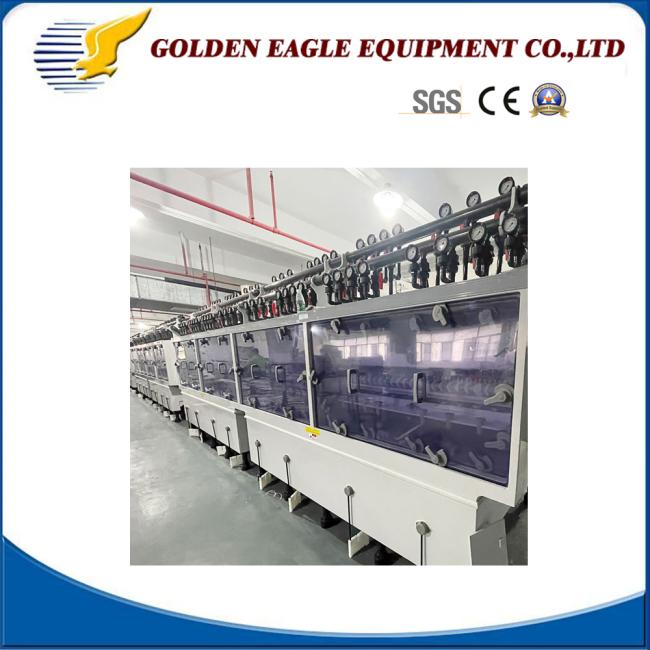

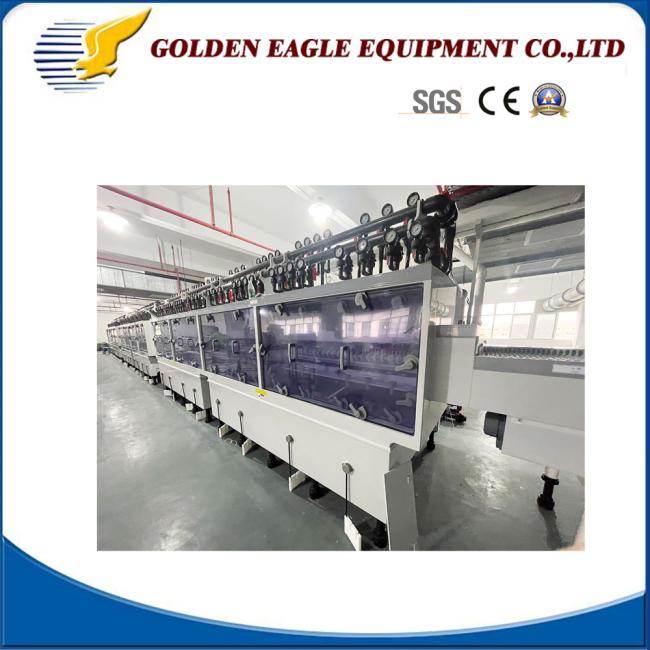

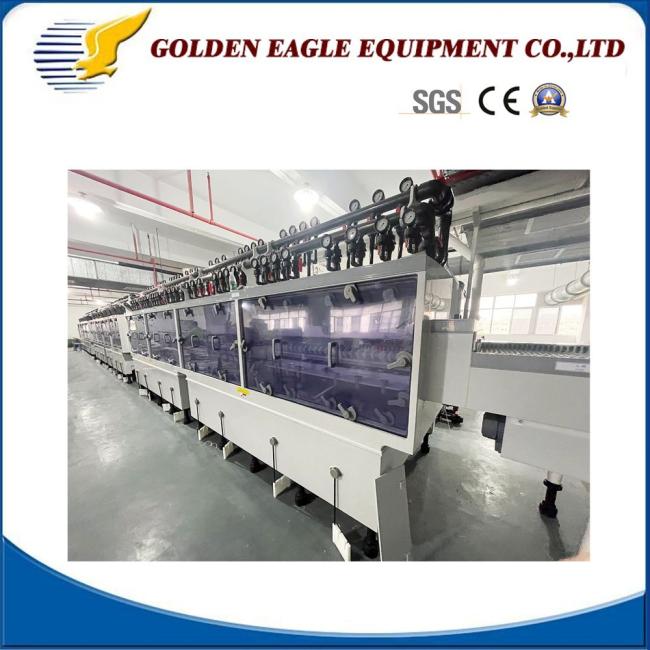

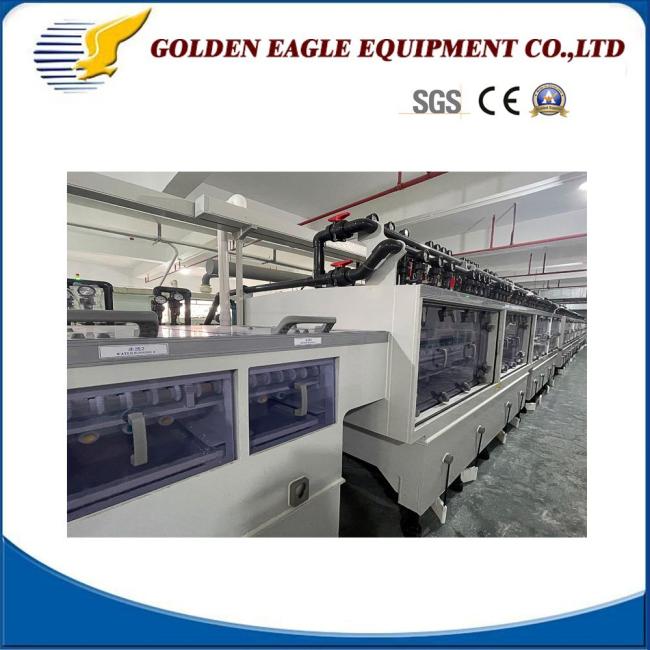

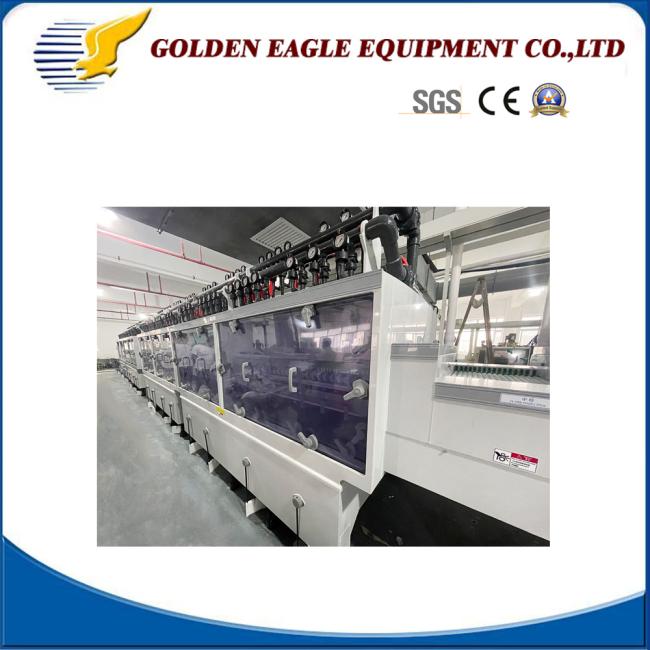

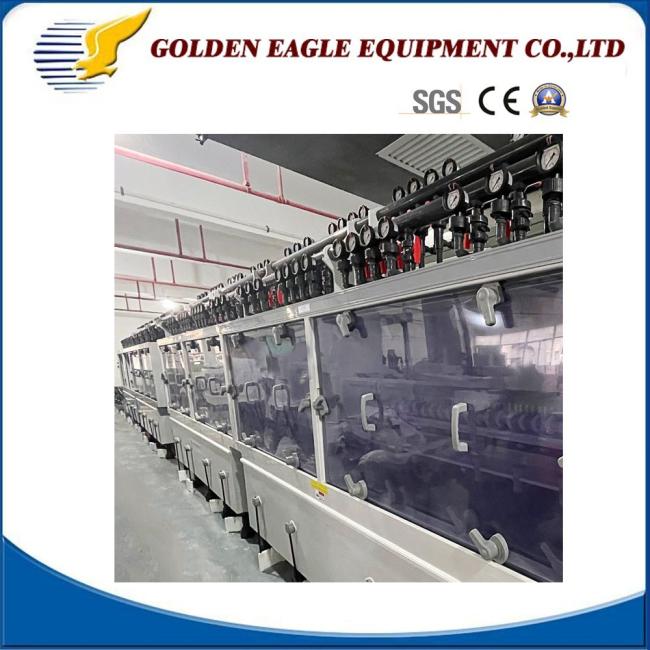

Photochemical Etching Machine For PCB Plate Thickness 0.05mm -3.2mm
| Machine Model | GE-SK12 |
| Machine Power | 108KW/380V/50HZ |
| Working Width | 450mm |
| Working height | 900mm±25mm |
| Working Temperature | 37~45ºC |
| Etching Type | Double sided etching strip swaying |
| Heating System | Titanium tube heating |
| Etching Pump | 7.5KW/380V/50Hz |
Working Form |
Spray type, horizontal track feeding (Stepless speed regulation) |
| Machine Size | 17600*1700*1700mm (L*W*H) |
| Machine Weight | 6200kgs |

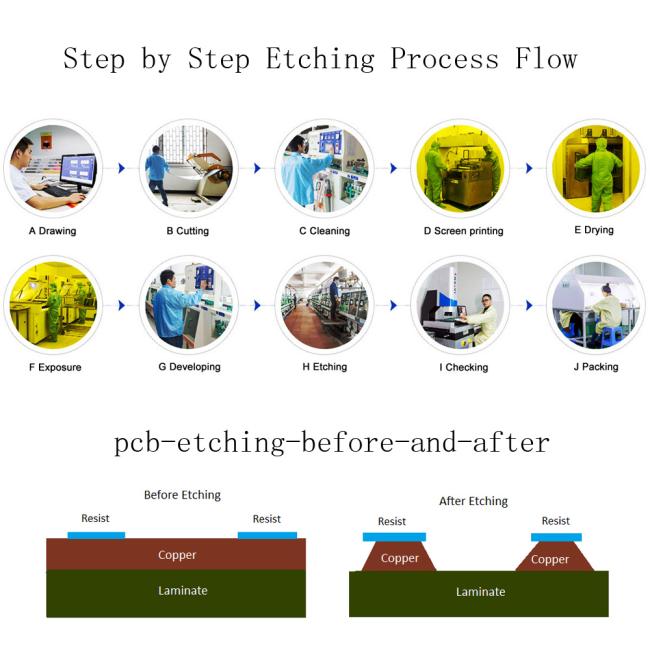

Technological process
Load(500mm) - Etch 1 (2000mm) - Etch 2 (2000mm) - Etch 3 (2000mm) - Etch 4 (2000mm) - Etch 5 (2000mm) - Etch 6 (2000mm) - Clean (1500mm) - Unload (500mm)
It adopts continuous mode and automatically cleans after etching. Materials used for the unit: PP high-quality engineering plastic and carbon steel plate.
Processing workpiece size: 650mm (maximum width); fifty × 50mm (minimum); 0.1~5.0mm (thickness) conveying speed range: 0.5~6.0m/min; Adjustable speed [preset working speed: 2.5 meters/minute] Transmission shaft diameter: 14mm
Roller diameter: 40MM
1.Q:Are you trading company or a factory ?
A: We are manufactory and We have import and export License .
2.Q:Where is your factory ?How Can I visit there?
A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.
3.Q:How can I get some samples ?
A: we are honores to offer you samples,please contact us anytime !
4.Q: How does your factory do regarding quality control ?
A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.
5.Q:Why us ?
A: 1. 20 years machine manufacture experiences !
2. More than 10 years good credit supplier on Made-in-China
3. satisfaction or we'll refund or rerun-your choice
4. Etching technology can be provided for free to our customer by our well-trained and professional engineers and staffs.
