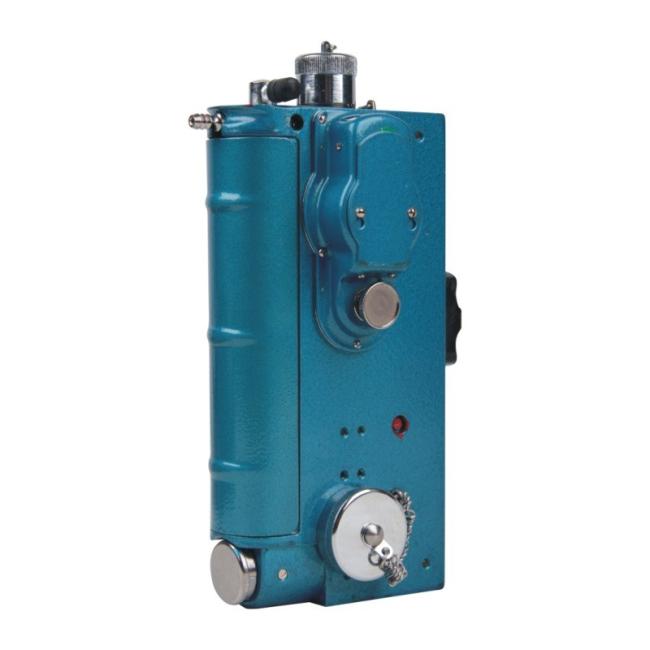

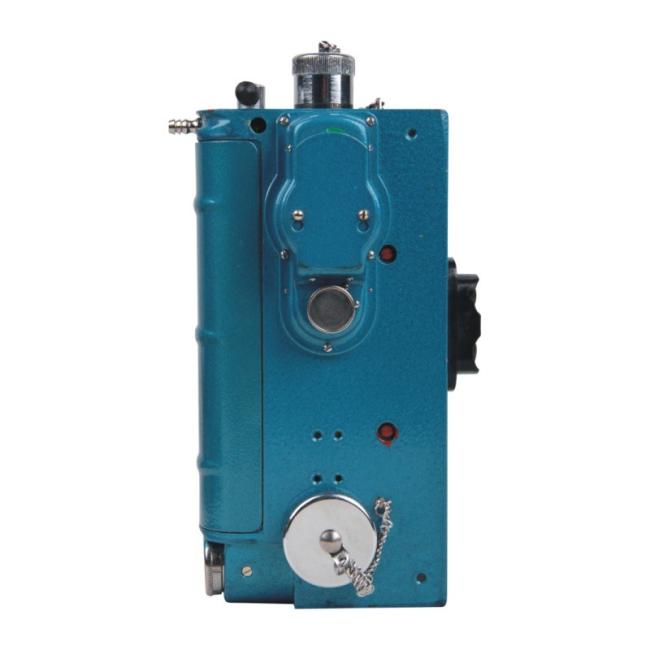

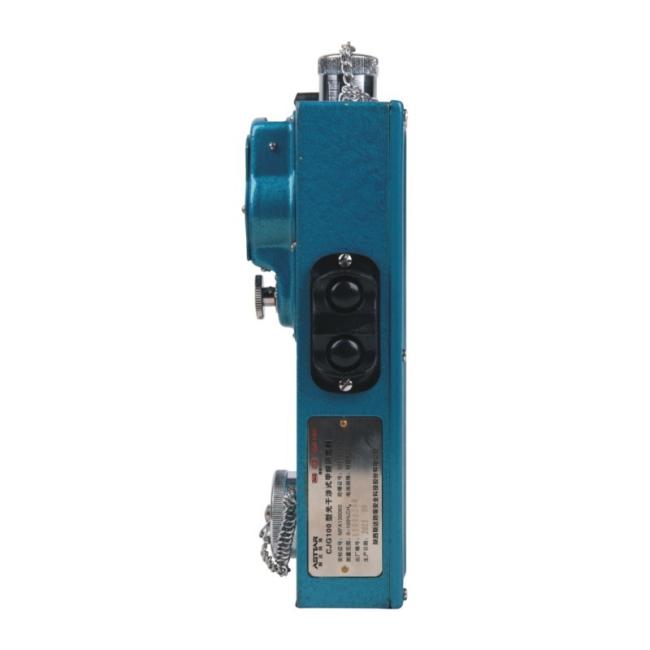

Optical Interference Type Methane Concentration Detector Cjg10, Cjg100 for Exporting
Main characteristics
1. Using optical interference principle, it can real-timely detect the methane concentration in ambient air.2. It has characteristics of accurate measurement, simple operation, convenient to use.
Main specification
| Model Item | Specification | |||||||
| CJG10 | CJG100 | |||||||
| Measurement range | (0~10)%CH4 | (0~100)%CH4 | ||||||
| 0~1 | 1~4 | 4~7 | 7~10 | 0~10 | 10~40 | 40~70 | 70~100 | |
| Intrinsic error | ±0.05 | ±0.1 | ±0.2 | ±0.3 | ±0.5 | ±1 | ±2 | ±3 |
| Minimum division value of eyepiece reticle | 0.5% | 5% | ||||||
| Division range of micrometer dial | (0-1)% | (0-10)% | ||||||
| Minimum division value of micrometer dial | 0.02% | 0.2% | ||||||
| Explosion-proof mark | Exib I | |||||||
| Light source (bulb) | 2.5V/0.3A | |||||||
| Power Supply | 2 ×R20(Zn-Mn) | |||||||
| Dimensions | 218×123×65mm | |||||||
| Weight | 1.8Kg | |||||||
Matching information
| Standard configuration | Detector, protective cover(leather case), balloon set, absorption tube set, bulb, rubber hose(1500mm),ballpoint pen, thermometer, battery. |
