30 Minutes Asttar Reusable Self Rescuer Zyx30 (A)
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
ASTTAR ZYX30(A) 30 minutes reusable escape respirator, respiratory protection PPE, isolated compressed oxygen self rescuer
Application
It is a breathing apparatus, which utilizes compressed oxygen as source to form isolated oxygen of closed circuit to provide the wearer with clean oxygen, and is mainly used under a mine or in the environment where toxic gases exist or oxygen is deficient.
Specification
| Items | Specification | |
| ZYX30(A) | ||
| Rated protective time | ≥30min | |
| Filling pressure for oxygen bottle | 19-21 MPa | |
| Oxygen storage capacity | ≥60L | |
| Inhalation oxygen concentration | ≥25% (by volume) | |
| Inhalation carbon dioxide concentration | ≤2.0% (by volume) | |
| Inhaling temperature(at the ambient temperature of 20ºC±3ºC) | <50ºC | |
| Oxygen-supplying modes | Quantitative oxygen supply | >1.2L/min |
| Oxygen delivery by demand valve | >60L/min | |
| Oxygen delivery by manual switch | >60L/min | |
| Opening pressure of safety valve | ≤ 1Mpa | |
| Opening force of sealing belt | 40-120N. | |
| Automatic opening pressure of automatic supply valve | (-100~-400)Pa | |
| Exhaust pressure | 150 Pa~300Pa | |
| Dimensions | (220×183×102)mm | |
| Weight | 2.0kg | |
| MA certificate No. | MLA180011 | |
Packaging information
| Carton size(paper carton) | 545×390×250 |
| Packing quantity | 10PCS |
| Gross weight | 22kg |

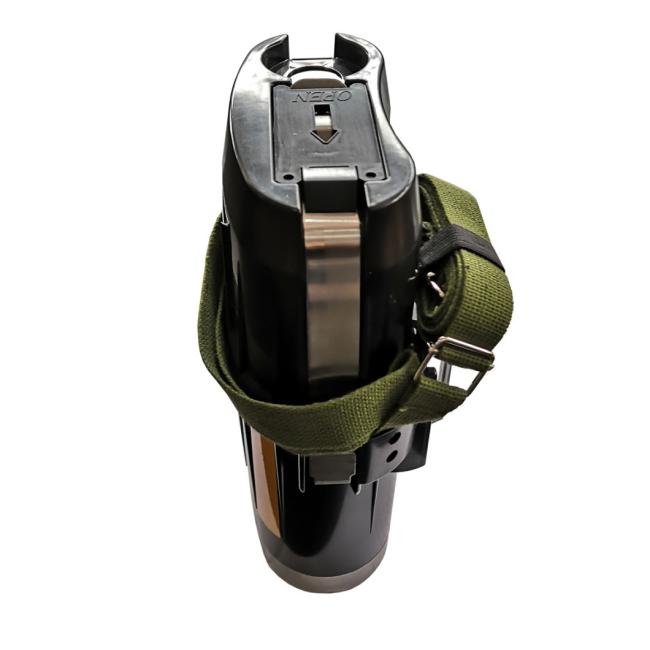

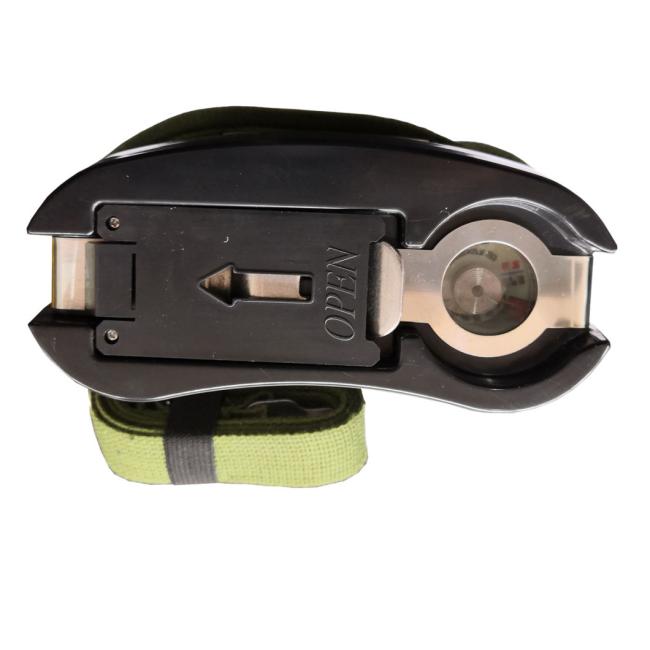

Product pictures
