39KW Engine Solar Pile Driving Machine 50 - 300mm Drilling Dia 2.6m Piling Height
50 - 300mm Drilling Dia 2 . 6m Piling Height Solar Pile Driver 39KW Engine Power
Product Description
The RCH360D pile driver is a multi-functional construction equipment, suitable for installation of highway guardrail columns, garden fence construction and small foundation construction. It integrates stamping, down - the - hole impact drilling and column extraction, and has strong construction capabilities. The equipment is flexible in movement and adapts to various terrains and road conditions. It has excellent driving performance and is easy to operate, which improves construction efficiency. RCH360D is favored by construction teams for its high flexibility, high efficiency and high adaptability.
Product Specifications
| Model | RCH360W |
| Working Dimension (mm) | 2900*2650*4200 |
| Transportation Dimension (mm) | 2900*2250*2550 |
| Wheelbase (mm) | 1950 |
| Vehicle Weight (Ton) | 2.8 |
| Engine Power (KW) | 39 |
| Flow Rate of Hydraulic System (L/min) | 90 |
| Hydraulic System Pressure (Mpa) | 20 |
| Mast stroke(mm) | 2300 |
| Piling Height (mm) | 2600 |
| Impact Power (J) | 1960 |
| Hydraulic Hammer Type | YC360, Imported from South Korea |
| Piling efficiency (mm/min) | 2500 |
| Drilling Depth (m) | 1.7 |
| Drilling Diameter (mm) | 50-300 |
| Max. Climbing Ability (°/%) | 10°/ 17.6% |
| Max. Walking Speed (km/h) | 11 |
| Max traction speed (km/h) | 30 |
| Tire specifications | 7.0-9 |
| Left and Right Sliding Stroke (mm) | ≤400 |
| Max. Adjustment Angle of Sliding Guide Frame | left 30 / right 8 |
| Front and Rear Adjustment Angle of Sliding Guide Frame | Front 75 / Back 15 |
| Hydraulic Tank Capacity (L) | 80 |
| Diesel Tank Capacity (L) | 40 |
Product Features
Solar pile drivers have two modes of movement: wheeled and crawler, adapting to a variety of terrains and construction environments. Various drive systems, including optional diesel engines, improve applicability and operational flexibility. It is easy to operate, equipped with angle gauge and spacious cockpit, and the intelligent control system helps precise operation. High efficiency and energy saving, vertical drilling ensures accuracy, and intelligent design adapts to different column shapes. Solar pile drivers play a key role in photovoltaic projects and are indispensable construction equipment.

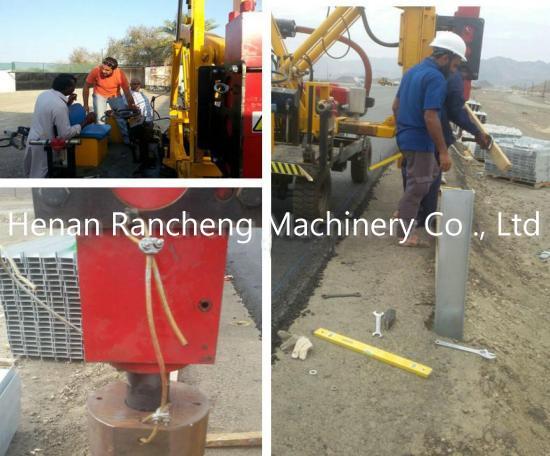

Product Image
