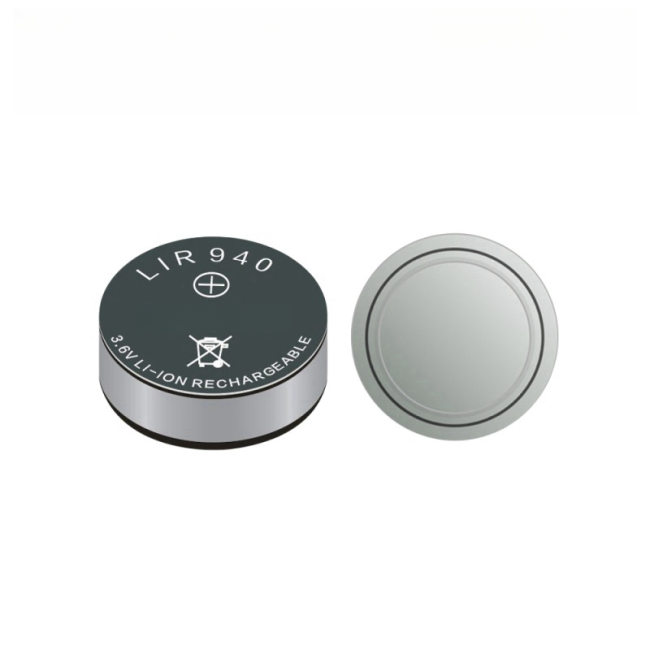

3.6V 25mAh button type LIR940 lithium cobalt oxide battery Licoo2 oxygen flow meter rechargeable battery/coin lithium battery
Price:
$0.35/pieces 500-999 pieces
MOQ:
500 pieces
Delivery Time:
Negotiable
Brand:
FLT
Product Description
Model | LIR940 |
Nominal capacity | 25mAh |
Nominal voltage | 3.6V |
Delivery voltage | 3.85~4.0V |
Cell Internal impedance | ≤850mΩ |
Max normal discharging current | 1C mA |
Standard max. charging current | 2C mA |
Cycle life | ≥500 |

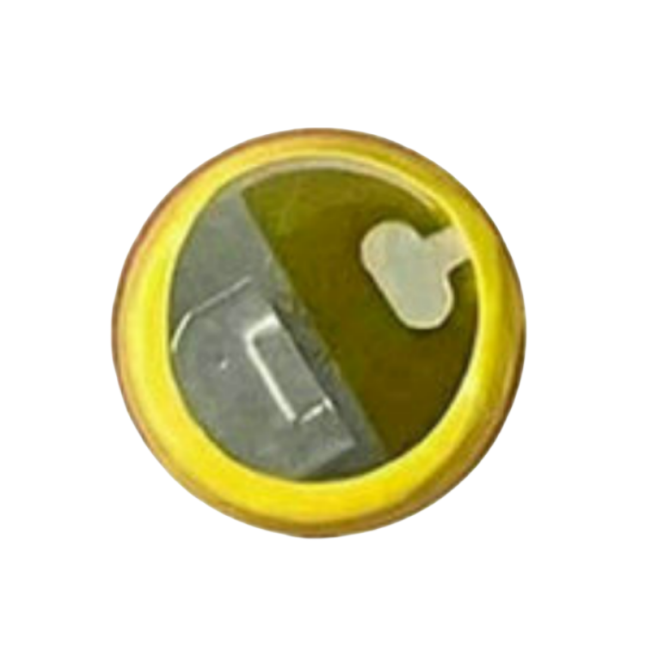

Polder lug

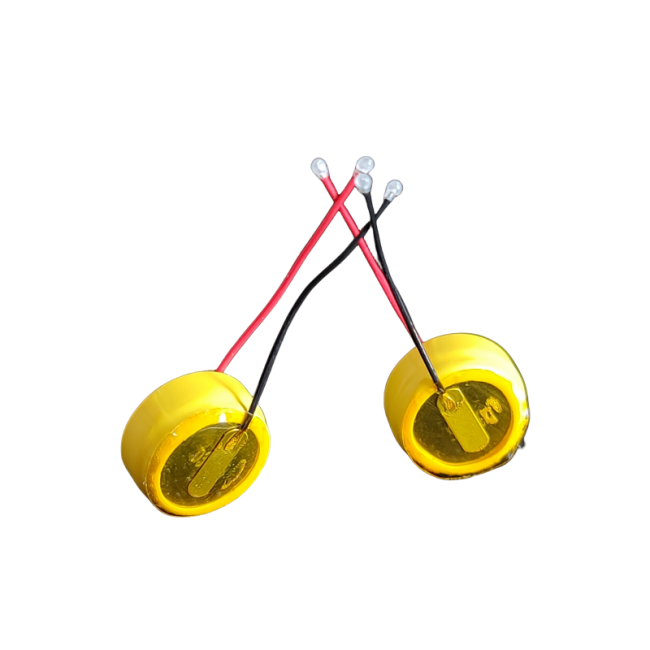

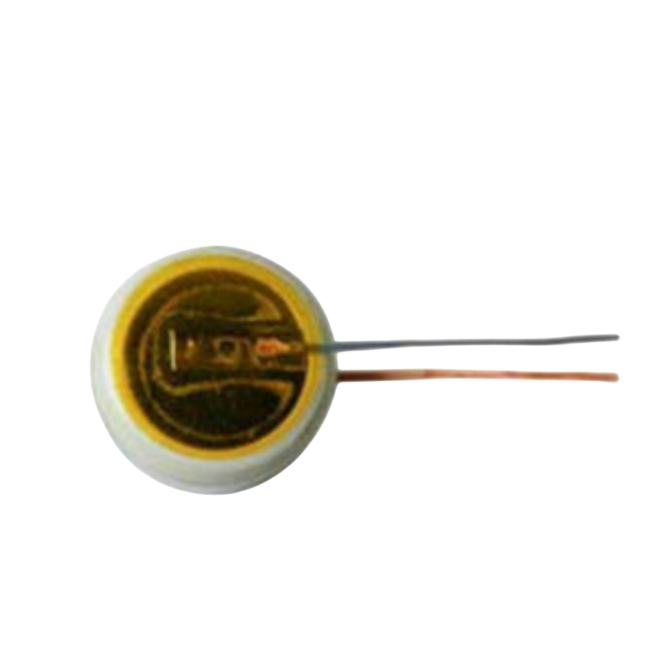

Perminal wire

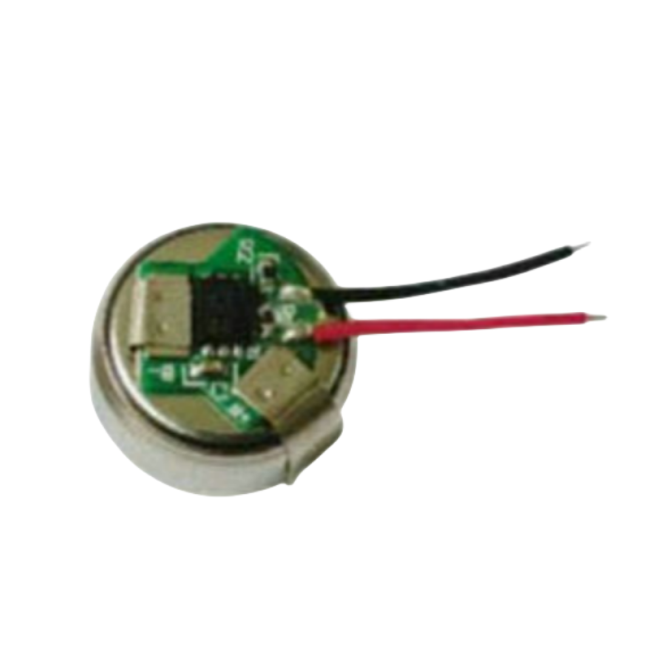

Protection board
For customisation and machining, please contact us directly.
Production customization
LIR series batteries are rechargeable button cell batteries with a discharge range of 3.6 V to 3.0 V. These batteries are characterised by high energy density, good storage performance, low self-discharge and long life, and are commonly used as power sources for portable medical devices, mobile communications, business portables and other products.
Model | Nominal capacity | Minimum capacity | Cell Internal impedance | Nominal voltage | Delivery voltage | Diameter (mm) | Thickness (mm) |
LIR640 | 7 mAh | 5 mAh | ≤1500mΩ | 3.6V | 3.85~4.0V | 6.0 | 4.0 |
LIR654 | 12mAh | 11 mAh | ≤1300mΩ | 3.6V | 3.85~4.0V | 6.0 | 5.4 |
LIR840 | 18 mAh | 16 mAh | ≤1000 mΩ | 3.6V | 3.85~4.0V | 8.0 | 4.0 |
LIR854 | 25 mAh | 22 mAh | ≤1000 mΩ | 3.6V | 3.85~4.0V | 8.0 | 5.4 |
LIR940 | 25 mAh | 22 mAh | ≤850 mΩ | 3.6V | 3.85~4.0V | 9.0 | 4.0 |
LIR1040 | 35mAh | 30 mAh | ≤750 mΩ | 3.6V | 3.85~4.0V | 10.0 | 4.0 |
LIR1045 | 40 mAh | 38mAh | ≤700 mΩ | 3.6V | 3.85~4.0V | 10.0 | 4.5 |
LIR1054 | 45 mAh | 40 mAh | ≤600 mΩ | 3.6V | 3.85~4.0V | 10.0 | 5.4 |
LIR1140 | 45 mAh | 40 mAh | ≤700 mΩ | 3.6V | 3.85~4.0V | 11.0 | 4.0 |
LIR1154 | 50 mAh | 50mAh | ≤650 mΩ | 3.6V | 3.85~4.0V | 11.0 | 5.4 |
LIR1220 | 8 mAh | 6mAh | ≤1500mΩ | 3.6V | 3.85~4.0V | 12.5 | 2.0 |
LIR1240 | 50 mAh | 50 mAh | ≤700 mΩ | 3.6V | 3.85~4.0V | 12.0 | 4.0 |
LIR1254 | 65 mAh | 60 mAh | ≤600 mΩ | 3.6V | 3.85~4.0V | 12.0 | 5.4 |
LIR1454 | 85 mAh | 85 mAh | ≤500 mΩ | 3.6V | 3.85~4.0V | 14.0 | 5.4 |
LIR1620 | 16mAh | 13 mAh | ≤1300mΩ | 3.6V | 3.85~4.0V | 16.0 | 2.0 |
LIR1632 | 25 mAh | 24 mAh | ≤800mΩ | 3.6V | 3.85~4.0V | 16.0 | 3.2 |
LIR1654 | 110 mAh | 110 mAh | ≤500 mΩ | 3.6V | 3.85~4.0V | 16.0 | 5.4 |
LIR2016 | 16 mAh | 15 mAh | ≤900mΩ | 3.6V | 3.85~4.0V | 20.0 | 1.6 |
LIR2025 | 25 mAh | 25mAh | ≤750mΩ | 3.6V | 3.85~4.0V | 20.0 | 2.5 |
LIR2032 | 40 mAh | 40 mAh | ≤650mΩ | 3.6V | 3.85~4.0V | 20.0 | 3.2 |
LIR2040 | 65mAh | 60 mAh | ≤600mΩ | 3.6V | 3.85~4.0V | 20.0 | 4.0 |
LIR2050 | 80mAh | 75 mAh | ≤500mΩ | 3.6V | 3.85~4.0V | 20.0 | 5.0 |
LIR2430 | 60mAh | 57 mAh | ≤400mΩ | 3.6V | 3.85~4.0V | 24.5 | 3.0 |
LIR2440 | 110mAh | 100 mAh | ≤300mΩ | 3.6V | 3.85~4.0V | 24.5 | 4.0 |
LIR2450 | 120 mAh | 120 mAh | ≤300mΩ | 3.6V | 3.85~4.0V | 24.5 | 5.0 |
LIR2466 | 180mAh | 180mAh | ≤250mΩ | 3.6V | 3.85~4.0V | 24.5 | 6.6 |
LIR2477 | 200mAh | 200mAh | ≤250mΩ | 3.6V | 3.85~4.0V | 24.5 | 7.7 |
LIR3032 | 110mAh | 100 mAh | ≤250mΩ | 3.6V | 3.85~4.0V | 30 | 3.2 |
LIR3048 | 200mAh | 195 mAh | ≤250mΩ | 3.6V | 3.85~4.0V | 30 | 4.8 |
Product Applications
Smart Mug
Remote controls
Smart watch
CPU
Smart meter
Car recorder
Packaging & delivery
Company Profile
Xinxiang Philite New Energy Technology Co, Ltd.
Xinxiang Philite New Energy Technology Co, Ltd. is located in Xinxiang City, Henan Province, China, and has its own cell production plant and battery pack production plant.
such as: 3.6Vdisposablelithium thionyl chloride battery (SOCL2) 3.0Vdisposable lithium manganese battery(Li/MnO2) phosphorus Lithium iron oxidebattery (LiFePo4) ternarylithium battery(NCM) and button Lithium battery (LiCo02) We have a strong team of in-house engineersand Customer service team, all of whomhave solidknowledge back in the battery industry Jinghe's richexperience can provide a seriesof high-quality productsaccording to customer needs.Quality products andoptimal solutions.Reliable quality, fast Responsivenessand reasonable prices are our commitment.
STANDARDS All our products meet the requirements ofthe current Chinese, European and interma-tional Standard.
