50LPM Dry Piston Type Piston Vacuum Air Compressor Energy Saving HP-40C
Price:
50~100USD
MOQ:
10pcs
Delivery Time:
7~10 days
Brand:
Microvacuum
Product Description
Product Features:
1. Small size, lightweight
2. High efficiency and energy saving.
3. Safety and environment friendly
4. Low noise. low-temperature rise, low vibration
5. Outstanding performance at a reasonable price
6. Security without oil, 100% maintenance-free
7. AC 110 V or 220 V
Application:
* Medical suction device, dental equipment
* Various instruments
* Automatic machine assembly
* Vary kinds of machinery.
Specification:
| MODEL | VOLTAGE | FREQUENCY | POWER | AMPERAGE | PRESSURE | FLOW | NOISE | WEIGHT |
| UNIT | V | Hz | Kw | A | Kpa | L/min | dB | Kg |
| HP-40C | 1Φ | 50 | 0.35 | 3.2 | 700 | 43 | 58 | 6.7 |
| 115V | 60 | 0.4 | 3.5 | 700 | 51 | 58 | ||
| 1Φ | 50 | 0.4 | 1.8 | 700 | 43 | 58 | 6.7 | |
| 220V | 60 | 0.4 | 1.9 | 700 | 51 | 58 |
Applications:

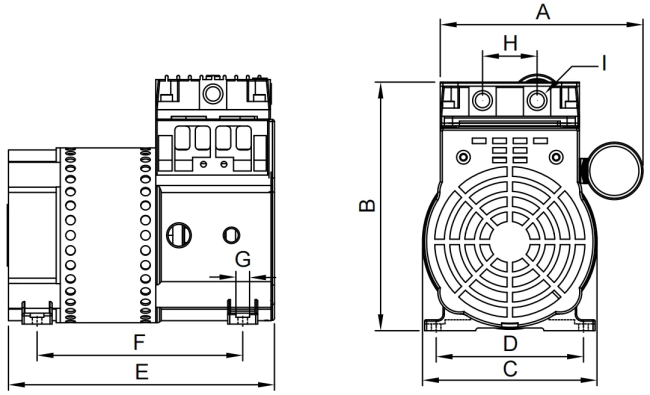

UNIT:mm
| MODEL | A | B | C | D | E | F | G | H | I |
| HP-40C | 148 | 180.5 | 128 | 108 | 195 | 150.75 | Φ7 | 40 | NPT1/4" |
