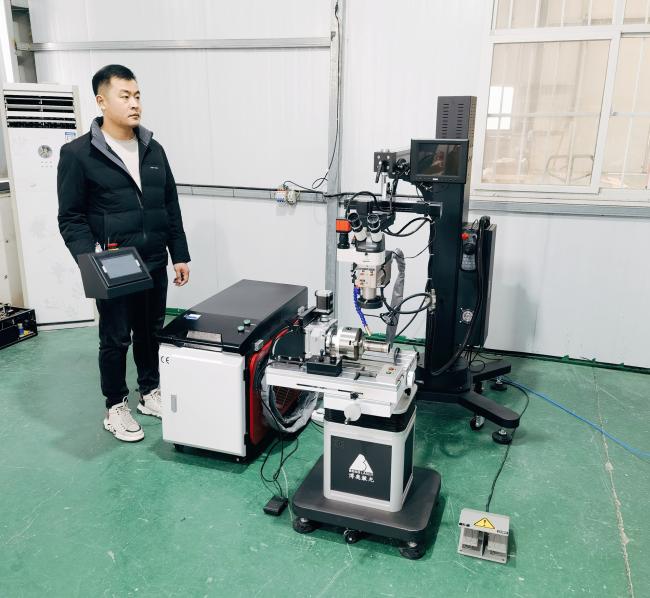

Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Price:
$13,000.00/units 1-1 units
MOQ:
1 UNIT
Delivery Time:
Negotiable
Brand:
Boao Laser
Product Description
Machines Introduction
Special For Big Mold
it can meet Max Mold Size 2000x2000x2000mm To Repair by This laser.
Fiber laser Type
It adopted CW fiber laser 1KW ,1.5KW ,2KW and 3KW to meet different diameter welding wires
|
Model
|
BMII –1000 BMII -1500 BMII-2000 BMII-3000
|
|
3-axis stroke of work bench
|
X=300mm, Y=200mm (X, Y can be adjusted manually and Z-axis can be lifted)
|
|
Bearing of work bench
|
≤100kg
|
|
Whole Machine Weight
|
700kgs
|
|
Power supply
|
380V ±10%/50Hz Or 220V±10%/50Hz
|
|
Laser type
|
CW FIBER
|
|
Laser wavelength
|
1060nm
|
|
Pulse width
|
≤20ms
|
|
Laser Spot Diameter
|
0.1-3.0mm adjutable
|
|
Maximum laser power
|
1000W /1500W/2000W/3000W
|
|
Pulse frequency
|
≤100Hz
|
|
Laser output focus length
|
150mm
|
|
Laser cooling
|
Water cooling
|
|
Observing system
|
Microscope (360° adjustable)
|
|
Protection gas
|
One line (xenon)
|
|
Welding wire diameter
|
0.1mm-1.6 mm
|
