2 Steel Wire Braided SAE 100 R2 Inner Diameter High Pressure Rubber Hydraulic Hose
SAE100 R2

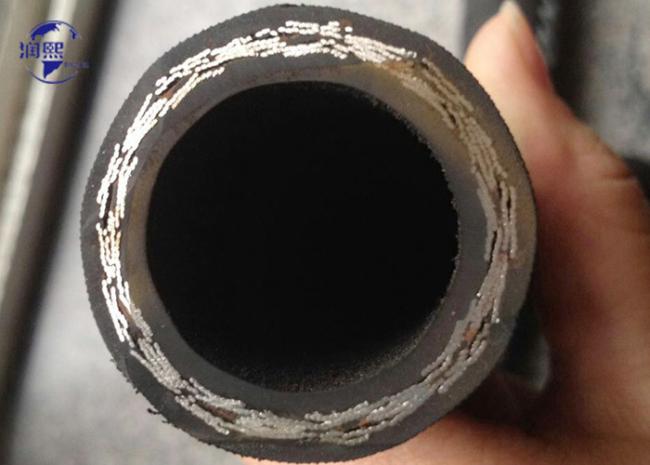

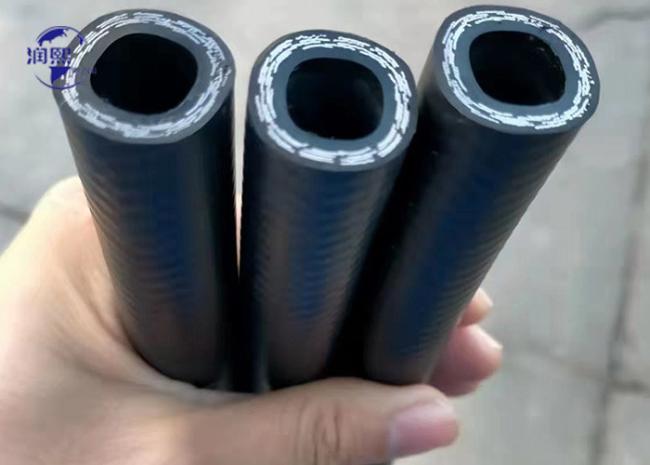

High pressure hose is made of internal rubber ,middle rubber,2 layers of wire-wood,and external rubber .
Two Steel Wire Rubber Braided High Pressures Hydraulic Hose:
This hose shall consist of an inner tube of oil resistant synthetic rubber, two steel wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
Purpose: Suitable for petroleum based and water based hydraulic fluids.
Working temperature: -40 ºC~+100 ºC.
A hydraulic hose is used anywhere in a hydraulic system requiring a flexible connection between two fluid ports. A hydraulic hose is a synthetic rubber tube surrounded by some sort of flexible strength enhancing winding, such as metal or fiber, and then covered in another rubber carcass
2. The reinforcing layer is made of high-strength chemical fiber materials.
3. The temperature of transmission medium is - 40 -+55 ºC.
Burst pressure: more than 4 times of the working pressure.
|
SIZE
|
SIZE
|
I.D
|
W.D
|
O.D
|
W.P
|
P.P
|
B.P
|
min B.R
|
W.T
|
||||||||
| mm | Inch | Min | Max | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm |
Kg/m
|
| 5 | 3/16 | 4.6 | 5.4 | 10.6 | 11.7 | 15.1 | 16.7 | 14.1 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 3.54 | 90 | 0.32 |
| 6.3 | 1/4 | 6.2 | 7.0 | 12.1 | 13.3 | 16.7 | 18.3 | 15.7 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 3.94 | 100 | 0.36 |
| 8 | 5/16 | 7.7 | 8.5 | 13.7 | 14.9 | 18.3 | 19.8 | 17.3 | 29.7 | 4310 | 59.5 | 8630 | 119 | 17255 | 4.53 | 115 | 0.45 |
| 10 | 3/8 | 9.3 | 10.1 | 16.1 | 17.3 | 20.6 | 22.2 | 19.7 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 4.92 | 125 | 0.54 |
| 12.5 | 1/2 | 12.3 | 13.5 | 19.0 | 20.6 | 23.8 | 25.4 | 23.1 | 24.5 | 3550 | 49 | 7110 | 98 | 14210 | 7.09 | 180 | 0.68 |
| 16 | 5/8 | 15.5 | 16.7 | 22.2 | 23.8 | 27.0 | 28.6 | 26.3 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 8.07 | 205 | 0.80 |
| 19 | 3/4 | 18.6 | 19.8 | 26.2 | 27.8 | 31.0 | 32.5 | 30.2 | 15.7 | 2280 | 31.5 | 4570 | 63 | 9135 | 9.45 | 240 | 0.94 |
| 25 | 1 | 25.0 | 26.4 | 34.1 | 35.7 | 38.5 | 40.9 | 38.9 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 11.81 | 300 | 1.35 |
| 31.5 | 1-1/4 | 31.4 | 33.0 | 43.2 | 45.6 | 49.2 | 52.4 | 49.6 | 11.3 | 1640 | 22.7 | 3290 | 45.5 | 6600 | 16.54 | 420 | 2.15 |
| 38 | 1-1/2 | 37.7 | 39.3 | 49.6 | 52.0 | 55.6 | 58.7 | 56.0 | 8.7 | 1260 | 17.5 | 2540 | 35 | 5075 | 19.09 | 500 | 2.65 |
| 51 | 2 | 50.4 | 52.0 | 62.3 | 64.7 | 68.3 | 71.4 | 68.6 | 7.8 | 1130 | 15.7 | 2280 | 31.5 | 4570 | 24.80 | 630 | 3.42 |
| 63 | 2-1/2 | 63.1 | 65.1 | 74.6 | 77.8 | 80.9 | 84.1 | - | 7 | 1015 | 14 | 2030 | 28 | 4060 | 29.92 | 760 | 4.2 |
