Tank Truck Mud Concrete Suction And Delivery Wear resistant Rubber Hose
Price:
$20/m
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
OEM/ODM
Product Description
Heavy Duty Mud/Concrete Suction and Delivery Flexible Rubber Hose Especially For Tank Truck
Product Description
This hose is specially designed for suction and delivery of concrete, cement slurry, mortar and other abrasive media on concrete mixer trucks, pump trucks and related construction equipment. It features excellent wear resistance, pressure resistance, flexibility and aging resistance, suitable for harsh construction site environments.
Key Features
- Extremely abrasion-resistant inner tube for extended service life
- High flexibility for easy handling, routing and installation
- Resists kinking, twisting and collapse during suction and delivery
- High pressure and vacuum resistance for stable performance
- Excellent ozone, weather and aging resistance for outdoor use
- Smooth inner bore reduces flow resistance and prevents concrete residue adhesion
- Rugged construction withstands harsh job site handling and impact
Structure
- Inner tube: Black, smooth, highly wear-resistant synthetic rubber, resistant to abrasion from sand, aggregate and cement.
- Reinforcement layer: High-strength textile cord with helical steel wire support, ensuring burst resistance and preventing collapse under suction pressure.
- Cover: Black, weather-resistant synthetic rubber, resistant to ozone, sunlight, oil and mechanical abrasion.
Temperature Range
-40°C to +85°C (-40°F to +185°F)
Characteristics
- Extremely wear-resistant inner tube for long service life
- Flexible and kink-resistant for easy handling
- Withstands both positive delivery pressure and negative suction pressure
- Good ozone and weather resistance for outdoor use
- Suitable for concrete transfer on mixer trucks and construction sites
Application

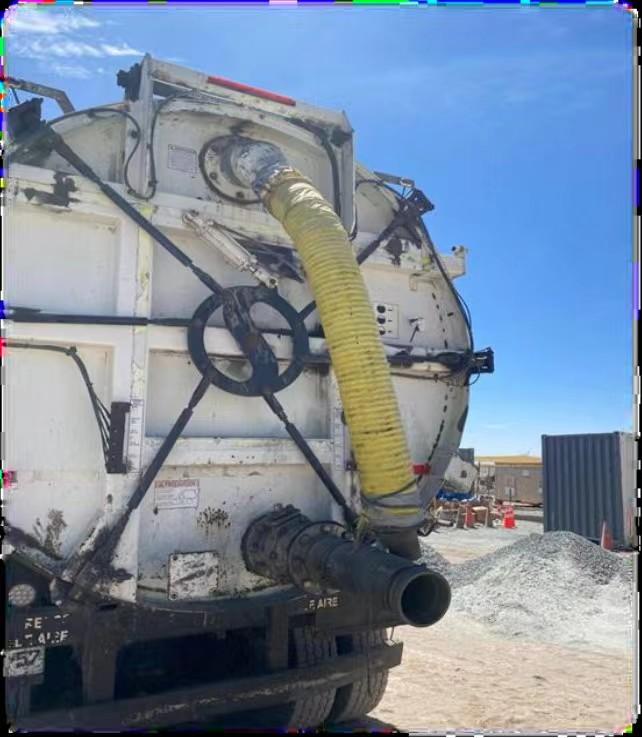

Concrete suction and discharge on mixer trucks; conveying concrete, mortar, cement slurry and similar abrasive media in construction projects.
Technical Specification
| Size | I.D. | O.D. | W.P. | B.P. | ||
| Inch | mm | mm | Bar | Psi | Bar | Psi |
| 1-1/4'' |
32 |
46 | 10 | 150 | 30 | 450 |
| 1-1/2'' | 38 | 53 | 10 | 150 | 30 | 450 |
| 2'' | 50 | 69 | 10 | 150 | 30 | 450 |
| 1-1/2'' | 64 | 83 | 10 | 150 | 30 | 450 |
| 3'' | 76 | 98 | 10 | 150 | 30 | 450 |
| 3-1/2'' | 89 | 113 | 10 | 150 | 30 | 450 |
| 4'' | 102 | 126 | 10 | 150 | 30 | 450 |
| 5'' | 127 | 153 | 10 | 150 | 30 | 450 |
| 6'' | 152 | 180 | 10 | 150 | 30 | 450 |
| 8'' | 203 | 235 | 10 | 150 | 30 | 450 |
| 10'' | 254 | 287 | 10 | 150 | 30 | 450 |
| 12'' | 305 | 335 | 10 | 150 | 30 | 450 |
