50-160mm Plastic PVC Pipe Making Machine With Double Screw
PVC Water Supply PVC Pipe Making Machine
General Introduction:
HSJZ-65/132 PVC Pipe Making Machine
This machine is mainly designed for manufacturing both PVC Wall/Ceiling Panels and PVC U/L Angle Lines, which mainly used in home decoration; By simply replacing the mold, the machine will be flexibly used for Wall Panels and Angle Lines production. It significantly reduce investment risks, improve the return on investment and improve the workshop production efficiency.
MOLD Design: Width:200/300 mm, Customized according to the Sample
|
Model
|
HSJZ-51/105
|
HSJZ-55/128
|
HSJZ-65/132
|
HSJZ-80/156
|
|
Motor Power(kw)
|
22kw
|
30kw
|
37kw
|
55kw
|
|
Output(kg/hr)
|
80-120kg/hr
|
100-150kg/hr
|
150-250kg/hr
|
200-350kg/hr
|
|
Daily Production Capacity(m2)
|
600m2
|
800-1000m2
|
1500m2
|
3000m2
|
HSJZ-65/132 PVC Extruder

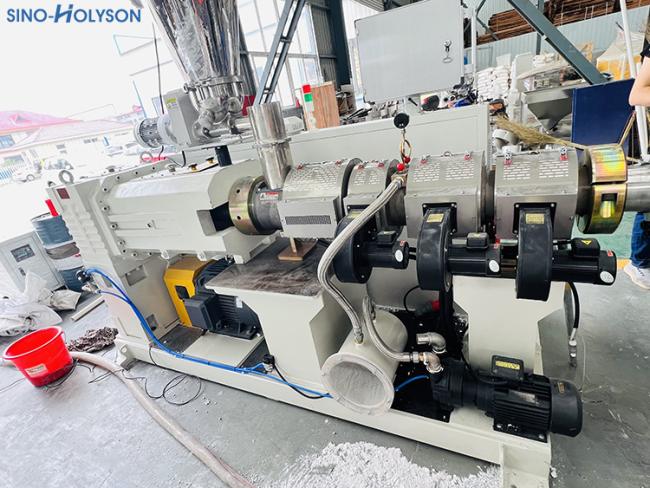

HSJZ-65/132 Conical Twin Screw Extruder
This Extruder is designed specially for processing Higher Percent Calcium Mixed PVC Material, to manufacture PVC Wall/Ceiling Panels. The Extruder installs with 30 kw driving motor , which will produce 700-1000 sqm panels. Our SCREW & BARREL Sets is specially designed for 200-260% Calcium mixed. It has the advantages of high tenacity, high impact, good bending performance, high temperature resistance, etc.
Water Supply Used Mould
Diameter: 50-160mm(2-6")
We can make all kinds of molds according to customer requirement. Die design is based on flow simulations on our computer, flow analysis and experience, that leads to excellent flow characteristics.
Vacuum Cooling Water Tank
Vacuum Calibration Platform
This unit is mainly for cooling and shaping the panels after the extrusion mold. It is installed with 4 kw vacuum pump and 3 kw water pump, for reliable production.
3-Claw Traction Machine
Haul off Machine
With each crawler driven by frequency motor, this machine can automatically change its working speed synchronous with the whole production line speed.
Plantarty Cutting Machine
This unit is specially for wall and ceiling panel production. It's a perfect match to the shape of the panel. The pressing rubber wheels direction or angle can be adjusted accordingly as per panel design. With a higher speed production, makes it very effective for the panel suppliers.
Pipe Stacker
This unit is mainly for collecting the panels after proudction. It will discharge the panels automatically and piles the panels into bundle. It can automatically cut with set length, auto counting function.
Laser Printer
This unit is mainly for collecting the panels after proudction. It will discharge the panels automatically and piles the panels into bundle. It can automatically cut with set length, auto counting function.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
