T140GF-S Genset Model T12-1 Engine Model Sinotruk Fuqiang Power 180kw Gas Generator
WT
| WT | |||||||||
| /Engine Specificatiom | |||||||||
| Item | Unit | Type | |||||||
| OrderNO. | WT615.91 | WT615.92 | WT615.93 | WT615.94 | WT615.95 | T12.38 | T12.42 | ||
| 1 | Aspiration | Turbochard&Intercooling | |||||||
| 2 | Cylinder | 6 | |||||||
| 3 | ×Cylinder diameter*Stroke | mm | 126×130 | 126×155 | |||||
| 4 | Displacement | L | 9.726 | 11.596 | |||||
| 5 | Compression ratio | 11:01 | |||||||
| 6 | Rated-power | kW | 170 | 196 | 213 | 235 | 250 | 279 | 309 |
| 7 | Rated-speed | r/min | 2200 | 2000 | |||||
| 8 | Max torque | N·m | 950 | 1160 | 1230 | 1300 | 1350 | 1650 | 1820 |
| 9 | speed atmaxium torque | r/min | 1200-1500 | ||||||
| 10 | ***Min brake specific fuel comsumption | g/kW·h | ≤195 | ||||||
| 11 | Fuel comsuption at rate condition | g/kW·h | 220 | ||||||
| 12 | Fuel/oil consumption ratio | ≤0.3% | ≤0.1% | ||||||
| 13 | Idel speed | r/min | 600±20 | ||||||
| 600±50 | |||||||||
| 14 | Ignition order | 1-5-3-6-2-4 | |||||||
| 15 | fuel deliver advance angle | ECU control byECU | 13±1 | ||||||
| 16 | ()Inlet/exhaust valve clearance(cold) | mm | 0.3/0.4 | 0.4/0.5 | |||||
| 17 | Emission standard | III/IV/V China State Standard III/IV/V | |||||||
| 18 | (/)Oil pressure(rate/idle point) | kpa | 350-550/120 | ||||||
| 19 | Lubricating oil sump capacity | L | 23 | 36 | |||||
| 20 | Net weight | kg | 900 | 1100 | |||||
| 21 | () | closewise | |||||||
| crankshaft rotational direction (viewing from free end) | |||||||||
| 22 | (//)Dimension(L*W*H) | mm | 1602/709/1109 | 1525/850/1090 | |||||
Companies adhere to the purpose of "quality first,scientific management,customer first,integrity-based",which are in accordance with the "integrity,pragmatic,pioneering,innovative" spirit of enterprise,so as to meet the needs of users with first-class service.
Warmly welcome friends from all walks of life to review,cooperate and create brilliance together!
The Company`s Main Products:
190 series gas engine parts,diesel engine parts.
190 series diesel/gas engine and generator.
190 series engine overhaul and maintenance.
OEM gas engine and oil engine.
The operation and maintenance of power station.
Quality Concept:
Quality is the starting point for value,brand and dignity.Quality must meet standards,meet demand,and satisfy customers."Quality first,reputation first."is the company`s unremitting pursuit!

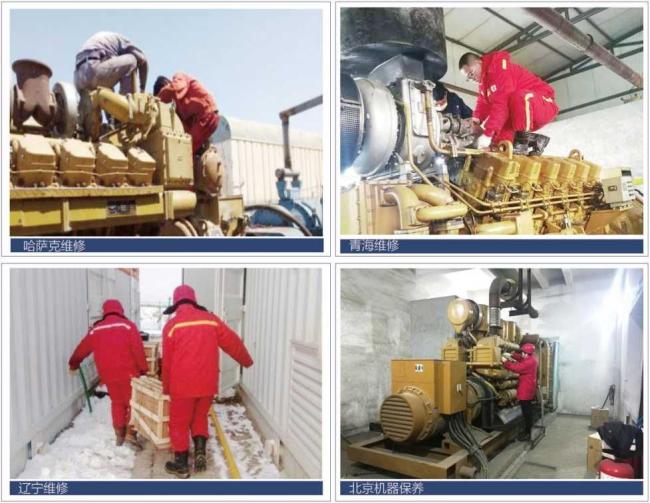

Overhaul Cases:
After nearly ten years of exploration and accumulation, the company has formed a system of after-sales service system and complete technical support. At present, the company's maintenance service business has been extended to home and abroad.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
