Small Steel Material 20MW Industrial Tail Gas Generator for Sustainable and Production
Price:
10-1000
MOQ:
1
Delivery Time:
15 days
Product Description
| Technical Parameters of Industrial Tail Gas Generator Set | ||||||
| Model | 6190 | 12V190 | 16V190 | |||
| CP200GFJ13 | CP250GFJ13 | CP500GFJ11 | CP600GFJ11 | CP700GFJ11 | CP1000GFJ12 | |
| Electric Power,KW | 200 | 300 | 500 | 600 | 700 | 1000 |
| Waste Heat,KW | 253 | 366 | 597 | 713 | 828 | 1100 |
| Electrical Efficiency,% | 34 | 36 | 36 | 37 | 38 | 40 |
| Thermal Efficiency,% | 43 | 44 | 43 | 44 | 45 | 44 |
| Total Efficiency,% | 77 | 80 | 79 | 81 | 83 | 84 |
| Cylinder Diameter / Stroke,mm | 190/210 | 190/210 | 190/210 | 190/210 | 190/210 | 190/210 |
| Number Of Cylinders | 6 | 6 | 12 | 12 | 12 | 16 |
| Displacement | 35.7 | 35.7 | 71.4 | 71.4 | 71.4 | 95.2 |
| Speed,r/min | 1000/1200 | 1000/1200 | 1000/1200 | 1000/1200 | 1000/1200 | 1000/1200 |
| Frequency,Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Long,mm | 4500 | 4500 | 6200 | 6200 | 6300 | 7000 |
| Wide,mm | 1300 | 1300 | 1950 | 1950 | 1950 | 1900 |
| High,mm | 2365 | 2365 | 2175 | 2175 | 2175 | 2600 |
| Weight,Kg | 7000 | 8400 | 11500 | 12000 | 12650 | 24000 |
It is the first to adopt the split intake double pressurization technology, innovate and develop the patented technology of in cylinder mixing technology and single cylinder control, and use the self-developed fully automatic control system, which is suitable for industrial tail gas containing high carbon monoxide and hydrogen, providing efficient energy equipment for the reuse of industrial combustible gas. It can completely solve the problems of tempering and flash explosion of conventional units, ensure the production safety of the factory and create reliable value for users. The operation of the unit is stable, the annual operation time can reach 8000 hours, which can perfectly adapt to the change of on-site gas source. It has a high degree of automation. While converting tail gas into electric energy, it can achieve power generation efficiency of up to 38%. One cubic meter of tail gas can generate electricity for one time, creating economic and environmental benefits!
Companies adhere to the purpose of "quality first,scientific management,customer first,integrity-based",which are in accordance with the "integrity,pragmatic,pioneering,innovative" spirit of enterprise,so as to meet the needs of users with first-class service. Warmly welcome friends from all walks of life to review,cooperate and create brilliance together!
The Company`s Main Products: 190 series gas engine parts,diesel engine parts,oil mud pump,turbocharger,marine diesel engine.
190 series diesel/gas engine and generator,marine diesel engine,coal gas generator.
190 series engine overhaul and maintenance.
OEM gas engine and oil engine.
The operation and maintenance of power station.
Quality Concept:
Quality is the starting point for value,brand and dignity.Quality must meet standards,meet demand,and satisfy customers."Quality first,reputation first."is the company`s unremitting pursuit!

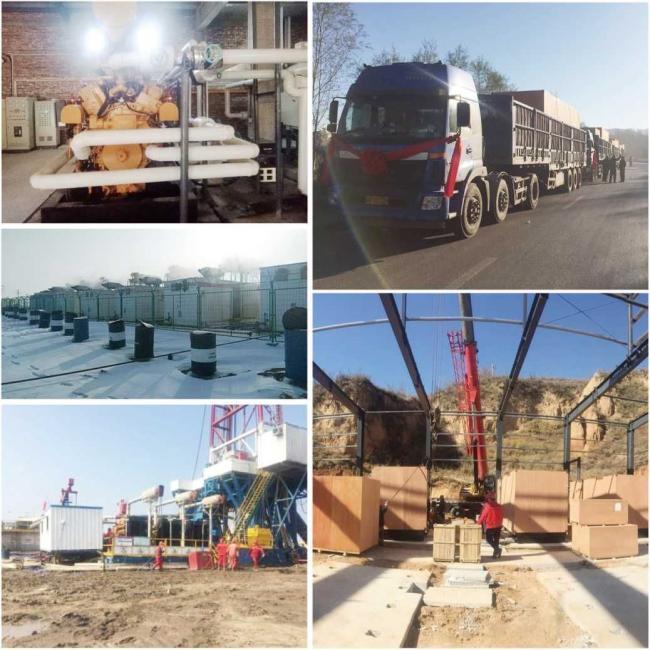

Overhaul Cases: After nearly ten years of exploration and accumulation, the company has formed a system of after-sales service system and complete technical support. At present, the company's maintenance service business has been extended to home and abroad.
