ZX200 ZX210 FINAL DRIVE 9170996 9233687 9195447 9233688 ZX200
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

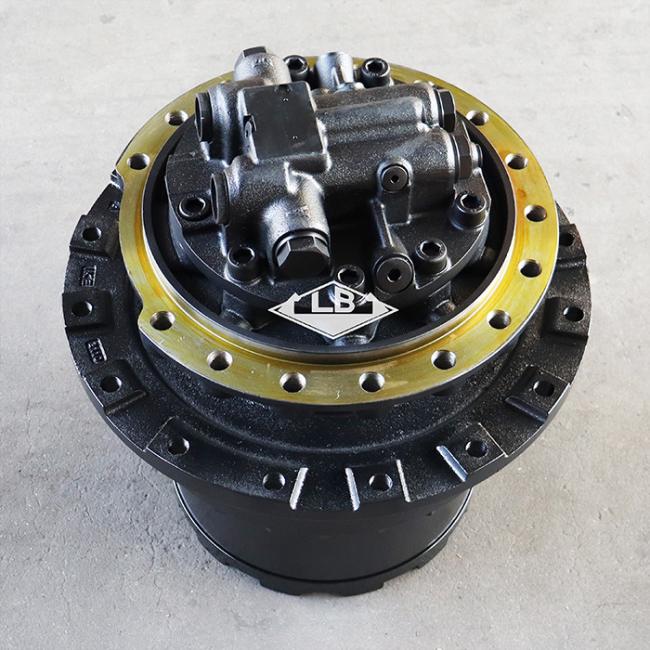

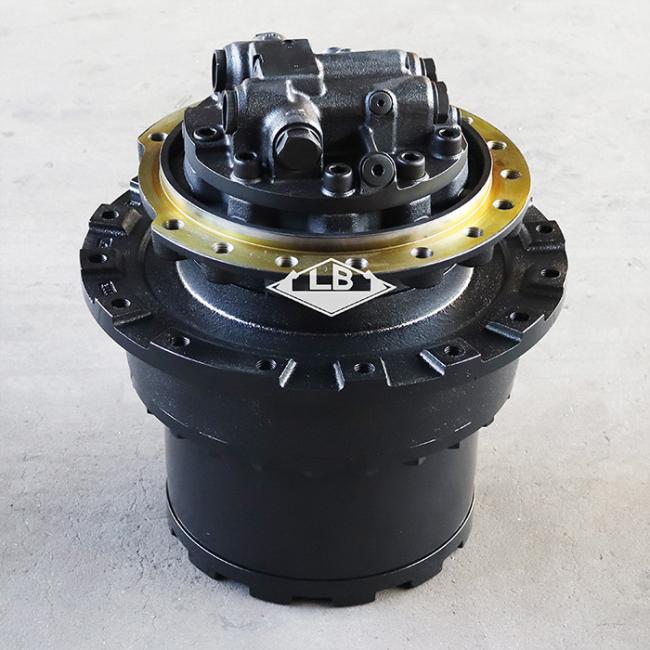

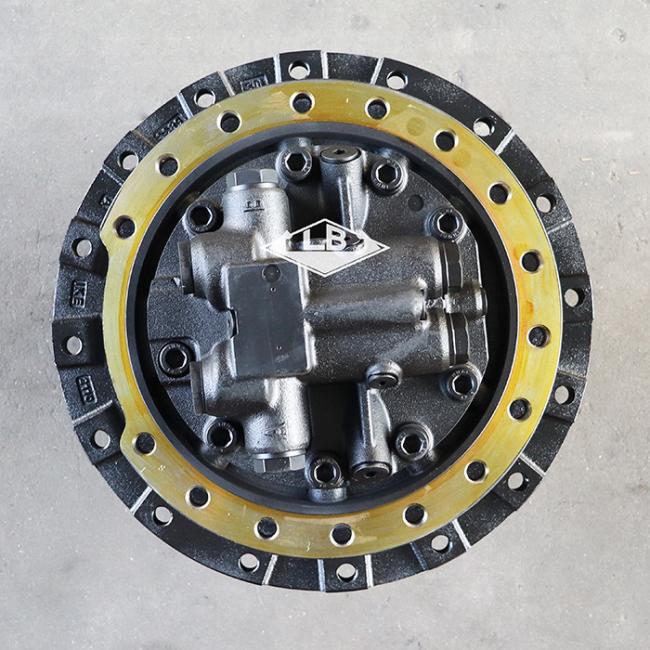

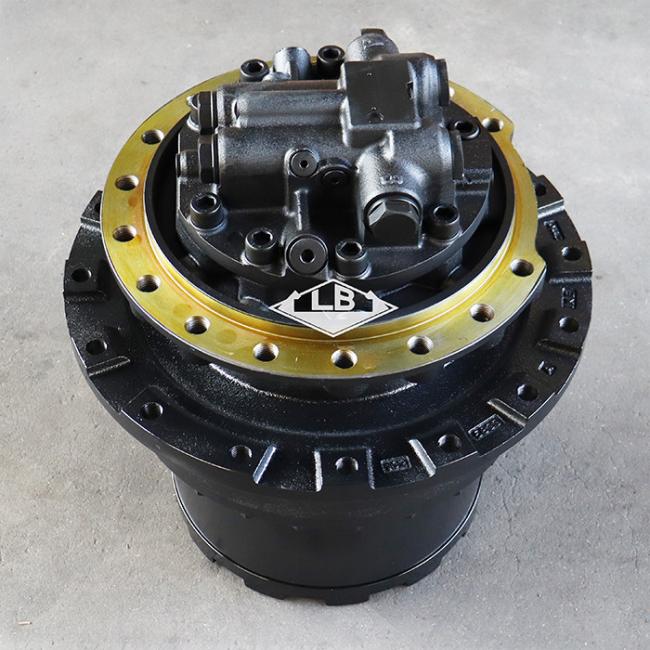

ZX200 ZX210 FINAL DRIVE 9170996 9233687 9195447 9233688 TRAVEL DEVICE ZX200 FINAL DRIVE
PRODUCT PARAMETERS
| Part name | ZX200 ZX210 Final Drive | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9170996 9233687 9195447 9233688 | |||||
| Frame holes | 16 | |||||
| Sprocket holes | 16 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 270KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL DEVICE <200,E,210,H,K>:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9170996 | [2] | TRAVEL DEVICE | I 9195447 | |
| 9233687 | [2] | TRAVEL DEVICE | I 9233688 (for assembly of machine) | |
| 9195447 | [2] | TRAVEL DEVICE | ||
| 9233688 | [2] | TRAVEL DEVICE | (for transportation) | |
| 00. | 9168003 | [1] | MOTOR;OIL | I 9195451 |
| 00. | 9234034 | [1] | MOTOR;OIL | I 9237802 (for assembly of machine) |
| 00. | 9195451 | [1] | MOTOR;OIL | |
| 00. | 9237802 | [1] | MOTOR;OIL | (for transportation) |
| 02. | 4114753 | [1] | SEAL;GROUP | I 4634693 |
| 02. | 4634693 | [1] | SEAL;GROUP | |
| 03. | 4246793 | [2] | BRG.;ROL. | |
| 04. | 1025833 | [1] | DRUM | |
| 05. | 1018740 | [1] | SPROCKET | |
| 06. | J932055 | [16] | BOLT | |
| 07. | A590920 | [16] | WASHER;SPRING | |
| 08. | 3086531 | [1] | NUT | |
| 10. | 4436242 | [1] | PIN;KNOCK | |
| 12. | 1025875 | [1] | CARRIER | |
| 14. | 4438593 | [6] | BRG.;NEEDLE | |
| 15. | 4284521 | [6] | PLATE;THRUST | |
| 16. | 4315838 | [3] | PIN | |
| 17. | 4116309 | [3] | PIN;SPRING | |
| 18. | 3082156 | [1] | GEAR;SUN | |
| 19. | 3084353 | [3] | GEAR;PLANETARY | |
| 20. | 1025787 | [1] | GEAR;RING | |
| 21. | J931640 | [24] | BOLT | |
| 23. | 2042432 | [1] | CARRIER | |
| 24. | 4401293 | [2] | SPACER | |
| 25. | 3082155 | [3] | GEAR;PLANETARY | |
| 26. | 4438592 | [3] | BRG.;NEEDLE | |
| 27. | 4192982 | [6] | PLATE;THRUST | |
| 28. | 4402086 | [3] | PIN | |
| 29. | 4192020 | [3] | PIN;SPRING | |
| 30. | 3082149 | [1] | GEAR;SUN | |
| 32. | 1025826 | [1] | CARRIER | |
| 33. | 3082148 | [3] | GEAR;PLANETARY | |
| 34. | 4387383 | [3] | BRG.;NEEDLE | |
| 35. | 4192910 | [6] | PLATE;THRUST | |
| 36. | 4210853 | [3] | PIN | |
| 37. | 4173093 | [3] | PIN;SPRING | |
| 38. | 2042351 | [1] | SHAFT;PROP. | |
| 38. | 2049585 | [1] | SHAFT;PROP. | |
| 40. | 2034833 | [1] | COVER | |
| 41. | 4285323 | [1] | PIN;STOPPER | Y 4478346 |
| 41. | 4478346 | [1] | PIN;STOPPER | |
| 42. | J011230 | [12] | BOLT;SEMS | I 4609016 |
| 42. | 4609016 | [12] | BOLT;SEMS | |
| 43. | 4245797 | [3] | PLUG | |
| 46. | 3053559 | [1] | NAME-PLATE | |
| 47. | M492564 | [2] | SCREW;DRIVE |
