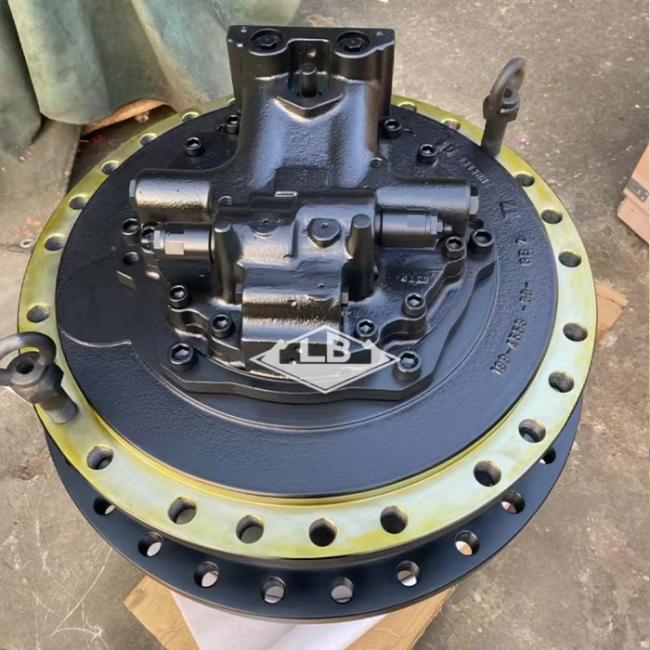

E390F E390 Travel Motor Assy 455-2770 455-2771 455-2772 455-2775 353-0590 155-9198 E390
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS
| Part name | E390 Final drive | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 455-2770 455-2771 455-2772 455-2775 353-0590 155-9198 | |||||
| Frame holes | -- | |||||
| Sprocket holes | -- | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description
Parts for your 390D L EXCAVATOR:
EERPILLAR SIS
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6I-6373 | [1] | SHIM (1.2-MM THK) | |
| 2. | 6I-6375 | [1] | SHIM (1.4-MM THK) | |
| 3. | 7Y-0807 | [1] | SHIM (1.6-MM THK) | |
| 4. | 7Y-0808 B | [1] | SHIM (1.6-MM THK) | |
| 5. | 7Y-1090 | [1] | GEAR-RING (66-TEETH) | |
| 6. | 7Y-1493 | [1] | SPACER (8.7X50X14-MM THK) | |
| 7. | 148-4575 | [3] | GEAR-PLANETARY (31-TEETH) | |
| 8. | 148-4579 | [1] | GEAR-SUN (22-TEETH) | |
| 9. | 148-4580 | [1] | GEAR-RING (101-TEETH) | |
| 10. | 148-4582 | [1] | HOUSING | |
| 11. | 148-4585 | [1] | GEAR-COUPLING (95-TEETH) | |
| 12. | 148-4616 | [1] | GEAR-SUN (37-TEETH) | |
| 13. | 148-4617 | [1] | RING-RETAINING | |
| 14. | 188-2103 | [1] | SEAL GP | |
| 15. | 191-2508 | [1] | SPACER (231X261X10-MM THK) | |
| 16. | 199-4533 | [4] | GEAR-PLANETARY (21-TEETH) | |
| 17. | 199-4545 | [1] | GEAR-SUN (21-TEETH) | |
| 18. | 199-4546 | [3] | GEAR-PLANETARY (22-TEETH) | |
| 19. | 199-4609 | [8] | BEARING AS | |
| 20. | [14] | WASHER (79.3X134X3-MM THK) | ||
| 21. | 199-4650 | [1] | CARRIER-PLANETARY | |
| 22. | 199-4663 | [1] | COVER-HOUSING | |
| 23. | 199-4665 | [1] | CARRIER-PLANETARY | |
| 24. | 199-4666 | [1] | CARRIER-PLANETARY | |
| 25. | 199-4669 | [3] | BEARING AS | |
| 26. | 199-4670 | [3] | BEARING AS | |
| 27. | 199-4671 | [6] | WASHER (49.3X84X1-MM THK) | |
| 28. | 199-4688 | [3] | SHAFT-PLANETARY | |
| 29. | 199-4689 | [3] | SHAFT-PLANETARY | |
| 30. | 199-4690 | [4] | SHAFT-PLANETARY | |
| 31. | 227-6177 | [1] | SHIM (0.3-MM THK) | |
| 32. | 227-6178 | [1] | SHIM (0.6-MM THK) | |
| 33. | 227-6179 | [1] | SHIM (0.7-MM THK) | |
| 34. | 227-6180 | [1] | SHIM (0.8-MM THK) | |
| 35. | 487-5911 | [1] | HOUSING-MOTOR | |
| 36. | 451-2178 | [20] | WASHER-HARD (33X56X6-MM THK) | |
| 37. | 453-4193 M | [20] | BOLT (M30X3.5X260-MM) | |
| 38. | 095-0891 | [3] | PIN-SPRING | |
| 39. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 40. | 099-5194 | [7] | PIN-SPRING | |
| 41. | 114-1541 | [6] | PIN-DOWEL | |
| 42. | 163-6082 | [1] | CONE | |
| 43. | 163-6083 | [1] | CUP | |
| 44. | 171-8706 | [1] | CONE | |
| 45. | 171-8707 | [1] | CUP | |
| 46. | 3E-2338 | [2] | PLUG-PIPE | |
| 47. | 5P-4981 | [1] | RING-RETAINING | |
| 48. | 7M-8485 | [2] | SEAL-O-RING | |
| 49. | 7Y-0640 | [1] | SEAL-O-RING | |
| 50. | 7Y-0795 | [1] | SPACER (115X145.1X25.5-MM THK) | |
| 51. | 7Y-1492 | [1] | SPACER (67X101.1X10-MM THK) | |
| 52. | 7Y-5215 M | [22] | BOLT-SOCKET HEAD (M24X3X90-MM) | |
| 53. | 8T-0273 M | [16] | BOLT-SOCKET HEAD (M12X1.75X40-MM) | |
