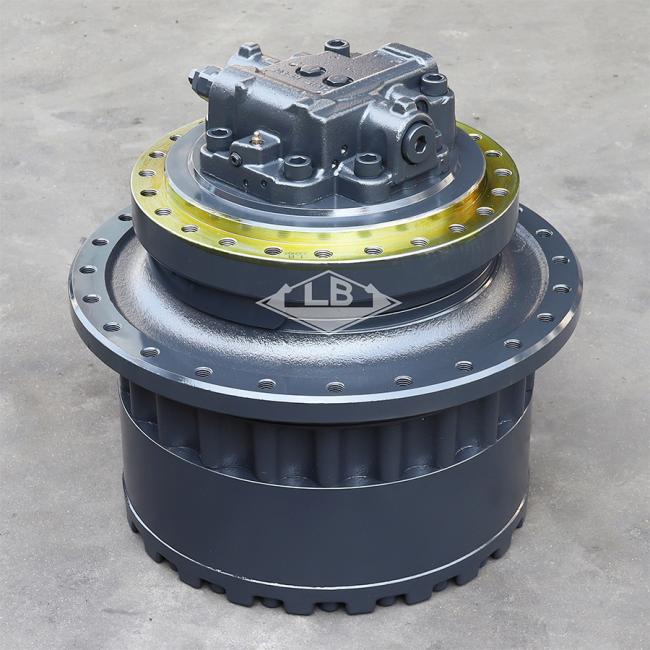

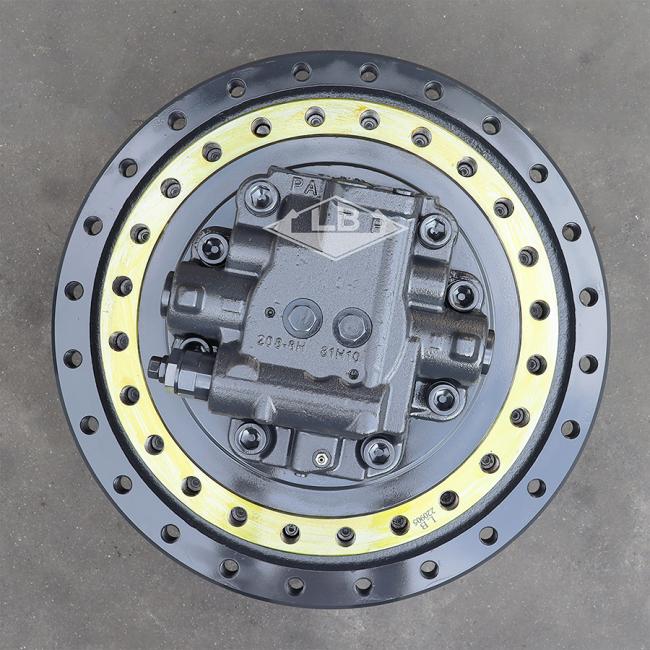

PC300-8MO PC350-8MO Travel Motor Final Drive 207-27-00580 207-27-00590 PC300-8MO

Name: PC300-8MO PC350-8MO Travel Motor Final Drive 207-27-00580 207-27-00590 PC300-8MO
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

LB PC300-8MO PC350-8MO Travel motor 207-27-00580 207-27-00590 PC300-8MO Final drive

PRODUCT PARAMETERS

Part name	PC300-8MO PC350-8MO Final drive
Equipment	Apply to KOMASTU EXCAVATOR
Part no.	207-27-00580 207-27-00590
Frame holes	24
Sprocket holes	24
Item condition	New
Logo	LB
Gross weight	510 KG
MOQ	1 pc

Product Description

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
https://	207-27-00580	[1]	Final Drive Assembly Komatsu China
			["SN: 80001-UP"] \|$0.
	207-27-00510	[1]	Floating Seal Assembly Komatsu China
			["SN: 80001-UP"] \|$1.
3.	207-27-72290	[1]	Hub Komatsu China
			["SN: 80001-UP"]
4.	207-27-72220	[2]	Bearing Komatsu China
			["SN: 80001-UP"]
5.	207-27-52350	[1]	O-ring Komatsu China	0.02 kg.
			["SN: 80001-UP"]
6.	207-27-72260	[1]	Lock Komatsu China
			["SN: 80001-UP"]
7.	207-27-72250	[1]	Nut, Lock Komatsu China
			["SN: 80001-UP"]
8.	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 80001-UP"] analogs:["801014093", "0101051020", "801015108"]
9.	207-27-72170	[1]	Carrier Komatsu China
			["SN: 80001-UP"]
10.	207-27-72140	[4]	Gear Komatsu	0.000 kg.
			["SN: 80001-UP"]
11.	207-27-72210	[4]	Bearing Komatsu China
			["SN: 80001-UP"]
12.	21M-27-11260	[8]	Washer, Thrust Komatsu OEM	0.24 kg.
			["SN: 80001-UP"]
13.	208-27-71250	[4]	Pin Komatsu OEM	2.16 kg.
			["SN: 80001-UP"]
14.	20Y-27-21290	[4]	Pin Komatsu OEM	0.03 kg.
			["SN: 80001-UP"]
15.	20Y-27-13310	[1]	Washer, Thrust Komatsu China	0.08 kg.
			["SN: 80001-UP"]
16.	207-27-72130	[1]	Gear Komatsu	0.000 kg.
			["SN: 80001-UP"]
17.	207-27-72150	[1]	Gear, Ring Komatsu	0.000 kg.
			["SN: 80001-UP"]
18.	207-27-72240	[1]	Washer, Thrust Komatsu China
			["SN: 80001-UP"]
19.	207-27-72160	[1]	Carrier Komatsu China
			["SN: 80001-UP"]
20.	207-27-72120	[3]	Gear Komatsu	0.000 kg.
			["SN: 80001-UP"]
21.	22U-26-21320	[3]	Bearing Komatsu	1.1 kg.
			["SN: 80001-UP"]
22.	206-26-71520	[6]	Washer, Thrust Komatsu	0.1 kg.
			["SN: 80001-UP"]
23.	207-27-72230	[3]	Pin Komatsu China
			["SN: 80001-UP"]
24.	20Y-27-21280	[3]	Pin Komatsu China	0.01 kg.
			["SN: 80001-UP"]
25.	207-27-72110	[1]	Shaft Komatsu	0.000 kg.
			["SN: 80001-UP"]
26.	20Y-27-11250	[1]	Spacer Komatsu OEM	0.044 kg.
			["SN: 80001-UP"] analogs:["2052771570"]
27.	04260-01905	[1]	Ball Komatsu OEM	0.029 kg.
			["SN: 80001-UP"]
28.	207-27-72180	[1]	Cover Komatsu China
			["SN: 80001-UP"]
29.	01011-61890	[22]	Bolt Komatsu China
			["SN: 80001-UP"] analogs:["0101131890", "0101151890", "0101181890"]
30.	01643-31845	[22]	Washer Komatsu China	0.02 kg.
			["SN: 80001-UP"] analogs:["0164321845", "R0164331845"]
31.	07049-01215	[2]	Plug Komatsu	0.001 kg.
			["SN: 80001-UP"]
32.	07044-12412	[3]	Plug Komatsu	0.09 kg.
			["SN: 80001-UP"] analogs:["0704402412", "R0704412412"]
33.	07002-02434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 80001-UP"] analogs:["0700212434", "0700213434"]
34.	207-27-72270	[1]	Sprocket Komatsu	0.000 kg.
			["SN: 80001-UP"]
35.	207-27-51311	[24]	Bolt Komatsu China	0.222 kg.
			["SN: 80001-UP"] analogs:["2072751310", "20727K1120", "20727K1130"]
