EC460B EC460C EC480D Final Drive VOE14569653 VOE14608847 VOE14508165 EC460
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

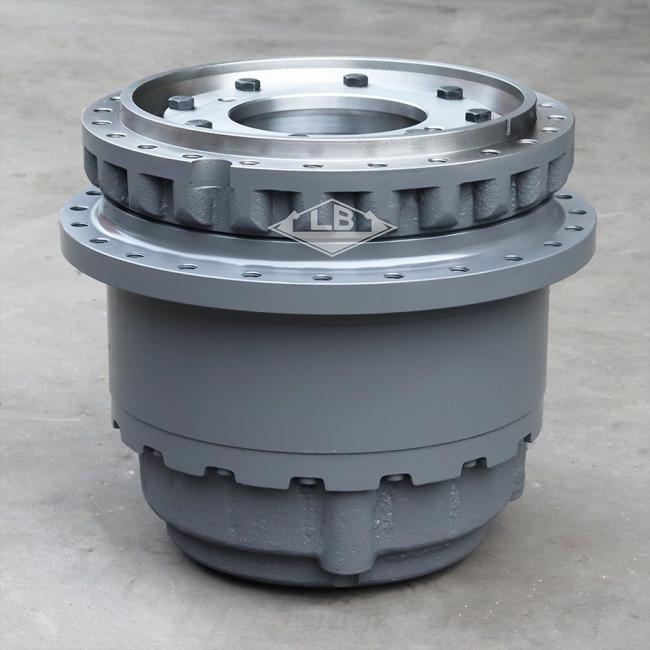

EC460B EC460C EC480D Travel device VOE14569653 VOE14608847 VOE14508165 EC460 Final drive
PRODUCT PARAMETERS
| Part name | EC460B EC460C EC480D Final drive | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14569653 VOE14608847 VOE14508165 | |||||
| Frame holes | 24 | |||||
| Sprocket holes | 24 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 480 KG | |||||
| MOQ | 1 pc | |||||
Product Description

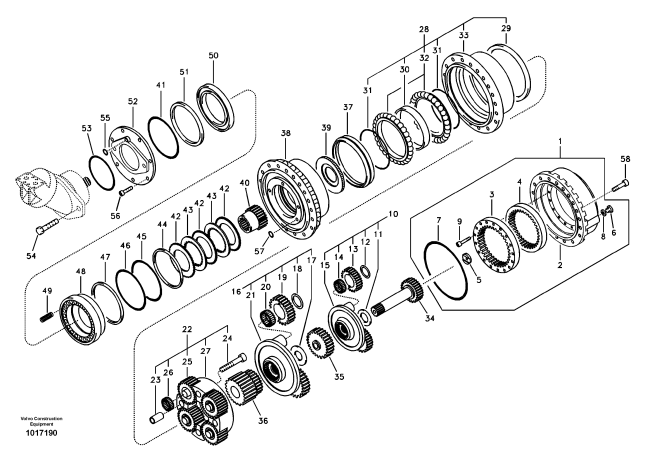

Parts on group Travel gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14531093 | [1] | Reduction Gear | ||
| 1. | SA8230-09980 | [1] | Cover | |
| 2. | VOE14541739 | [1] | Cover | |
| 3. | [1] | Ring | ||
| 4. | VOE14541737 | [1] | Ring | |
| 5. | VOE11701193 | [1] | Friction washer | |
| 6. | VOE14262071 | [2] | Plug | |
| 7. | VOE11701192 | [1] | O-ring | |
| 8. | VOE14262070 | [2] | Washer | |
| 9. | VOE14541740 | [16] | Screw | |
| 10. | VOE11706896 | [1] | Reduction gear | |
| 11. | SA8230-21320 | [1] | Ring | |
| 12. | VOE14541726 | [3] | Clip | |
| 13. | SA8230-21130 | [3] | Planetary gear | |
| 14. | SA8230-22070 | [3] | Roller bearing | |
| 15. | VOE14541741 | [1] | Case | |
| 16. | SA8230-35760 | [1] | Reduction gear | |
| 17. | SA8230-21310 | [1] | Ring | |
| 18. | VOE14541743 | [4] | Clip | |
| 19. | SA8230-21170 | [4] | Planetary gear | |
| 20. | SA8230-22080 | [4] | Roller bearing | |
| 21. | VOE14541742 | [1] | Case | |
| 22. | VOE14509408 | [1] | Planet carrier | |
| 23. | SA8230-35600 | [4] | Bushing | |
| 24. | VOE14608962 | [4] | Screw | |
| 25. | VOE14618656 | [4] | Planetary gear | |
| 26. | VOE14520527 | [4] | Roller bearing | |
| 27. | VOE14541744 | [1] | Case | |
| 28. | SA8230-35780 | [1] | Housing | |
| 29. | VOE14541746 | [1] | Bushing | |
| 30. | VOE14541747 | [1] | Spacer | |
| 31. | VOE14541748 | [2] | O-ring | |
| 32. | [1] | Bearing | ||
| 33. | VOE14541745 | [1] | Case | |
| 34. | VOE11706895 | [1] | Sun gear | |
| 35. | SA8230-35550 | [1] | Sun gear | |
| 36. | SA8230-35560 | [1] | Sun gear | |
| 37. | VOE11701194 | [1] | Sealing ring | |
| 38. | SA8230-35510 | [1] | Hub | |
| 38. | VOE15156998 | [1] | Kit | |
| 38. | VOE14604655 | [1] | Adapter | |
| 39. | SA8230-35580 | [1] | Spacer | |
| 40. | SA8230-35520 | [1] | Shaft | |
| 41. | VOE11701198 | [1] | O-ring | |
| 42. | SA8230-35640 | [7] | Disc | |
| 43. | SA8230-35630 | [6] | Ring | |
| 44. | SA8230-22380 | [1] | Ring | |
| 45. | SA8230-22170 | [1] | O-ring | |
| 46. | SA8230-22180 | [1] | O-ring | |
| 47. | SA8230-22390 | [1] | Ring | |
| 48. | VOE14604654 | [1] | Piston | |
| 49. | VOE11702537 | [21] | Spring | |
| 50. | SA8230-35590 | [1] | Spacer | |
| 51. | SA8230-35420 | [1] | Clip | |
| 52. | SA8230-35570 | [1] | Adapter | |
| 53. | VOE11707954 | [1] | O-ring | |
| 54. | SA8230-22050 | [2] | Screw | |
| 55. | SA8230-36310 | [1] | O-ring | |
| 56. | SA8230-22290 | [8] | Screw | |
| 57. | SA8230-22110 | [1] | O-ring | |
| 58. | SA8230-35430 | [16] | Screw |
