PC400-6 PC450-6 Gearbox Final Drive With Motor 208-27-00150 208-27-00151 PC400-6

Name: PC400-6 PC450-6 Gearbox Final Drive With Motor 208-27-00150 208-27-00151 PC400-6
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

PC400-6 PC450-6 Travel gearbox with motor 208-27-00150 208-27-00151 208-27-00152 PC400-6 Final Drive

PRODUCT PARAMETERS

Part name	PC400-6 PC450-6 Travel gearbox
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	208-27-00150 208-27-00151 208-27-00152
Frame holes	24
Sprocket holes	26
Item condition	New
Logo	LB
Gross weight	700 KG
MOQ	1 pc

Product Description

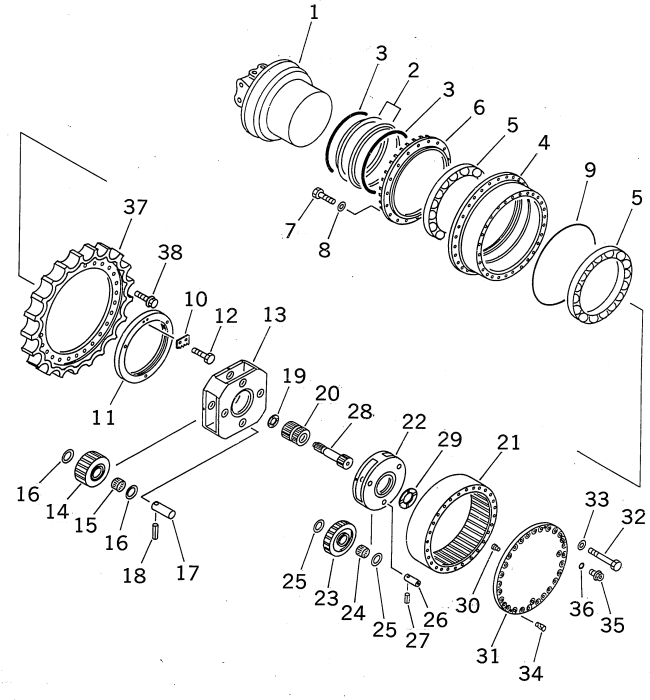

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
https://	208-27-00152	[2]	FINAL DRIVE ASSY Komatsu	906 kg.
			["SN: 30338-UP"] analogs:["2082700151", "2082700150", "2082700153"] \|1.
	208-27-00151	[2]	FINAL DRIVE ASSY Komatsu	906 kg.
			["SN: 30194-30337"] analogs:["2082700152", "2082700150", "2082700153"] \|1.
	208-27-00150	[2]	FINAL DRIVE ASSY Komatsu	906 kg.
			["SN: (30001-30193)"] analogs:["2082700151", "2082700152", "2082700153"] \|1.
1.	706-88-00151	[1]	MOTOR ASSY Komatsu	273.001 kg.
			["SN: 30447-UP"] analogs:["7068800150"]
	706-88-00150	[1]	MOTOR ASSY Komatsu	273.001 kg.
			["SN: 30338-30446"] analogs:["7068800151"] \|1.
	706-88-00111	[1]	MOTOR ASSY Komatsu China
			["SN: 30194-30337"] analogs:["7068800112", "7068800110"] \|1.
	706-88-00110	[1]	MOTOR ASSY Komatsu China
			["SN: (30001-30193)"] analogs:["7068800111", "7068800112"] \|1.
	208-27-00140	[1]	FLOATING SEAL ASSY Komatsu OEM	3.5 kg.
			["SN: 30467-UP"] \|2.
	17M-27-00102	[1]	FLOATING SEAL ASSY Komatsu	3.5 kg.
			["SN: 30001-30466"] analogs:["17M2700101", "17M2700100"] \|2.
4.	208-27-61192	[1]	HUB Komatsu	120 kg.
			["SN: 32303-UP"] analogs:["2082761191"]
	208-27-61191	[1]	HUB Komatsu	120 kg.
			["SN: 30338-32302"] analogs:["2082761192"] \|4.
	208-27-61190	[1]	HUB Komatsu	109.8 kg.
			["SN: 30001-30337"] \|4.
5.	208-27-62110	[2]	BEARING Komatsu	21.85 kg.
			["SN: 32265-UP"]
	208-27-51240	[2]	BEARING Komatsu	24 kg.
			["SN: 30001-32264"] analogs:["2082731621"] \|5.
6.	208-27-51212	[1]	COVER Komatsu	15.34 kg.
			["SN: 30362-UP"] analogs:["2082751211"]
	208-27-51211	[1]	COVER Komatsu	15.34 kg.
			["SN: 30001-30362"] analogs:["2082751212"] \|6.
7.	01010-81240	[18]	BOLT Komatsu	0.052 kg.
			["SN: 30001-UP"] analogs:["801015573", "0101051240"]
8.	01643-31232	[18]	WASHER Komatsu	0.027 kg.
			["SN: 30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
9.	208-27-52350	[1]	O-RING Komatsu	0.023 kg.
			["SN: 30001-UP"]
10.	208-27-61270	[1]	LOCK Komatsu	0.28 kg.
			["SN: 30001-UP"]
11.	208-27-61261	[1]	NUT Komatsu	10.35 kg.
			["SN: 30338-UP"]
	208-27-61260	[1]	NUT Komatsu	9.88 kg.
			["SN: 30001-30337"] \|11.
12.	01010-81020	[2]	BOLT Komatsu	0.161 kg.
			["SN: 30001-UP"] analogs:["801014093", "0101051020", "801015108"]
13.	208-27-61170	[1]	CARRIER,2ND Komatsu	46.3 kg.
			["SN: 30001-UP"]
14.	208-27-61140	[4]	GEAR Komatsu China	11.25 kg.
			["SN: 30001-UP"]
15.	207-27-61230	[4]	BEARING Komatsu	0.65 kg.
			["SN: 30001-UP"]
16.	20Y-27-21250	[8]	WASHER Komatsu China	0.03 kg.
			["SN: 30001-UP"]
17.	207-27-61250	[4]	PIN Komatsu China	1.75 kg.
			["SN: 30001-UP"]
18.	20Y-27-21290	[4]	PIN Komatsu OEM	0.03 kg.
			["SN: 30001-UP"]
19.	207-27-52270	[1]	SPACER Komatsu OEM	0.089 kg.
			["SN: 30001-UP"]
20.	208-27-61131	[1]	GEAR Komatsu China	4.4 kg.
			["SN: 30033-UP"] analogs:["2082761130"]
	208-27-61130	[1]	GEAR Komatsu China	4.4 kg.
			["SN: 30001-30032"] analogs:["2082761131"] \|20.
21.	208-27-61150	[1]	GEAR Komatsu China	86 kg.
			["SN: 30001-UP"]
22.	208-27-61160	[1]	CARRIER,1ST Komatsu	13.6 kg.
			["SN: 30001-UP"]
23.	208-27-61121	[3]	GEAR Komatsu	5.8 kg.
			["SN: 30001-UP"]
24.	207-27-61220	[3]	BEARING Komatsu China	0.74 kg.
			["SN: 30001-UP"]
25.	20Y-27-21240	[6]	WASHER Komatsu China	0.02 kg.
			["SN: 30001-UP"]
26.	207-27-61240	[3]	PIN Komatsu China	2.49 kg.
			["SN: 30001-UP"]
27.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["SN: 30001-UP"]
28.	208-27-61111	[1]	SHAFT Komatsu	3.09 kg.
			["SN: 32716-UP"] analogs:["2082761110"]
	208-27-61110	[1]	SHAFT Komatsu	3.09 kg.
			["SN: 30001-32715"] analogs:["2082761111"] \|28.
29.	20Y-27-11250	[1]	SPACER Komatsu OEM	0.044 kg.
			["SN: 30001-UP"] analogs:["2052771570"]
30.	208-27-61350	[1]	BUTTON Komatsu	0.5 kg.
			["SN: 32716-UP"] analogs:["2072761280"]
	207-27-61280	[1]	BUTTON Komatsu	0.5 kg.
			["SN: 30001-32715"] analogs:["2082761350"] \|30.
31.	208-27-61180	[1]	COVER Komatsu	37.667 kg.
			["SN: 30001-UP"]
32.	207-27-52341	[28]	BOLT Komatsu	0.43 kg.
			["SN: 30001-UP"]
33.	01643-31845	[28]	WASHER Komatsu China	0.02 kg.
			["SN: 30001-UP"] analogs:["0164321845", "R0164331845"]
34.	07049-01215	[4]	PLUG Komatsu	0.001 kg.
			["SN: 30001-UP"]
35.	07044-12412	[3]	PLUG Komatsu	0.09 kg.
			["SN: 30001-UP"] analogs:["0704402412", "R0704412412"]
36.	07002-02434	[3]	O-RING Komatsu China	0.01 kg.
			["SN: 30001-UP"] analogs:["0700212434", "0700213434"]
37.	208-27-61210	[1]	SPROCKET Komatsu China	60 kg.
			["SN: 30001-UP"]
38.	207-27-51311	[26]	BOLT Komatsu China	0.222 kg.
			["SN: 30001-UP"] analogs:["2072751310", "20727K1120", "20727K1130"]
