China SK350-8 TRAVEL REDUCTION GEAR LC15V00023F1 LC15V00023F2R LC15V00023F2C SK350-8 TRAVEL GEARBOX for Kobelco Excavators for sale

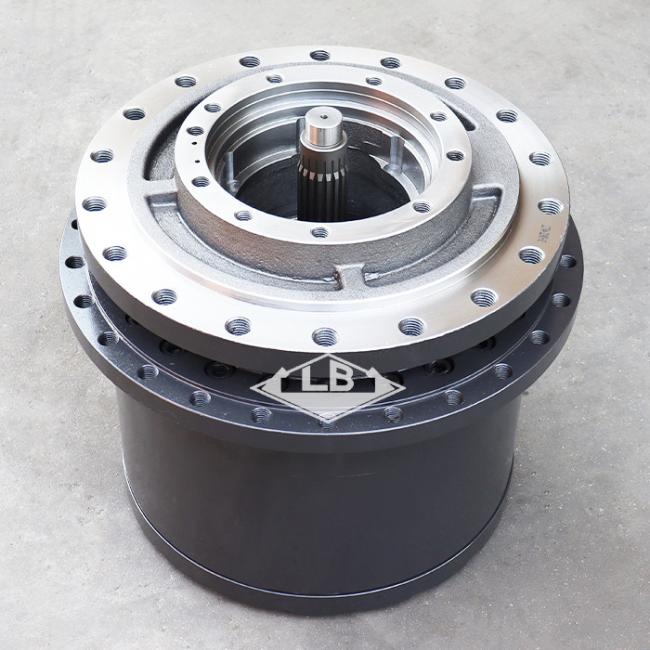

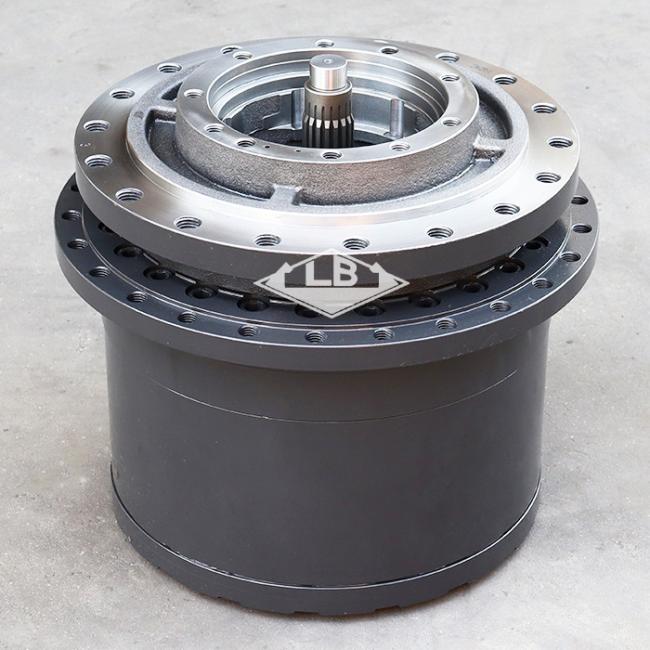

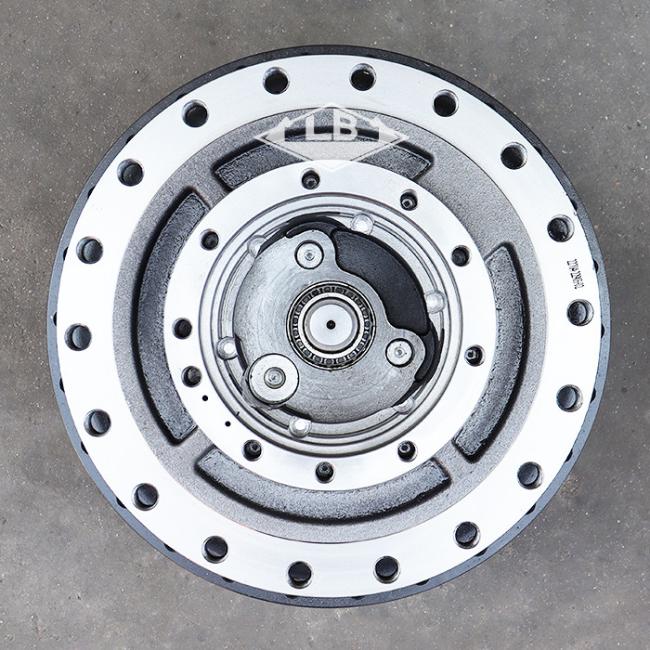

SK350-8 TRAVEL REDUCTION GEAR LC15V00023F1 LC15V00023F2R LC15V00023F2C SK350-8 TRAVEL GEARBOX for Kobelco Excavators

Name: SK350-8 TRAVEL REDUCTION GEAR LC15V00023F1 LC15V00023F2R LC15V00023F2C SK350-8 TRAVEL GEARBOX for Kobelco Excavators
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

PRODUCT PARAMETERS

Part name	SK350-8 Travel gearbox
Equipment	Apply to Kobelco EXCAVATOR
Part no.	LC15V00023F1 LC15V00023F2R LC15V00023F2C
Frame holes	18
Sprocket holes	26
Item condition	New
Logo	LB
Gross weight	350KG
MOQ	1 pc

Product Description

Pos.	Part No	Qty	Parts name	Comments
. .	LC15V00023F1	[1]	HYDRAULIC MOTOR	KOB Assembly, Incls. LC15V00026F1 -- Not Shown Superseded by part number: LC15V00023F2
. .	LC15V00023F2R	[1]	REMAN-HYD MOTOR	KOB SK350-8 ACERA MARK 8 EXCAVATOR - TIER 3 ASN YC08U~ (NA) (10/06-), REMAN FOR NEW PN LC15V00023F1
. .	LC15V00023F2C	[1]	CORE-MOTOR HYDRAULIC	KOB Return Number
. .	LC15V00026F1	[1]	HYDRAULIC MOTOR	KOB Hydraulic Motor Superseded by part number: LC15V00026F2
1.	LC53D00007S018	[1]	HOUSING	KOB
2.	24100U1682S19	[2]	BALL BEARING	KOB
3.	LC53D00007S017	[1]	GEAR	KOB RING
4.	ZS23C18110	[25]	SCREW,Hex Socket Head, M18 x 110mm	KOB M18x2.50x110mm
5.	24100U1743S24	[1]	SEAL	KOB
6.	24100U1682S20	[1]	SHIM	KOB
7.	24100U1682S21	[2]	LOCK WASHER	KOB
8.	24100U1682S22	[1]	RING	KOB
9.	LC53D00007S011	[1]	CARRIER	KOB
10.	LC15V00023S010	[3]	PLANETARY GEAR	KOB
11.	LC53D00007S016	[6]	WASHER	KOB THRUST
12.	LC15V00023S012	[3]	BEARING	KOB NEEDLE
13.	LC53D00007S012	[3]	CARRIER	KOB
14.	ZP26D10050	[3]	PIN	KOB SPRING
15.	LC15V00023S015	[1]	GEAR	KOB SUN
16.	LC53D00007S002	[1]	CARRIER	KOB
17.	LC15V00023S017	[3]	PLANETARY GEAR	KOB
18.	LC53D00007S005	[6]	WASHER	KOB THRUST
19.	LC15V00023S019	[3]	BEARING	KOB NEEDLE
20.	LC53D00007S003	[3]	PIN	KOB
21.	ZP26D06036	[3]	PIN	KOB Roll -- OD 06 x 36mm Long
22.	LC15V00023S022	[1]	GEAR	KOB SUN
23.	LQ15V00005S008	[1]	PLATE	KOB
24.	LC15V00023S024	[1]	COVER	KOB
25.	ZS28C10030	[18]	SCREW,Hex Socket Head, M10 x 30mm	KOB M10x1.50x30mm
26.	YR30V00001S116	[2]	PLUG	KOB
27.	ZD12P02400	[2]	O-RING	KOB ID 23.70 ± 0.24 x OD 30mm
28.	LC15V00023S028	[1]	CASE	KOB
29.	LC15V00023S029	[1]	PLUG	KOB
30.	2441U1040S27	[1]	RING	KOB
31.	2441U1040S19	[1]	COVER	KOB
32.	2436U1749S17	[1]	PLUG	KOB
33.	NSS	[1]	NOT SOLD SEPARAT	CON PISTON
34.	NSS	[1]	NOT SOLD SEPARAT	CON SEAL,PISTON
35.	LC15V00023S035	[1]	BALL	KOB
36.	2441U1040S9	[1]	SHAFT	KOB
37.	2441U1040S31	[1]	ROLLER BEARING	KOB
38.	NSS	[2]	NOT SOLD SEPARAT	CON PIVOT
39.	NSS	[1]	NOT SOLD SEPARAT	CON PLATE,SHOE
40.	LC15V00023S040	[1]	BLOCK	KOB CYLINDER
41.	2441U1030S29	[9]	SPRING	KOB
42.	LC15V00023S042	[1]	HOLDER	KOB
43.	LC15V00021S024	[1]	BALL JOINT	KOB
44.	LC15V00021S004	[1]	RETAINER	KOB SHOE
45.	GK15V00003S014	[9]	PISTON	KOB ASSY
46.	2441U1040S7	[7]	PLATE	KOB SEPARATOR
47.	2441U1040S5	[6]	PLATE	KOB
48.	2441U1040S6	[1]	PISTON	KOB
49.	LS15V00004S052	[1]	O-RING	KOB O-RING
50.	LS15V00004S053	[1]	O-RING	KOB
51.	LC15V00023S051	[1]	COVER	KOB
52.	2436U1427S25	[14]	PLUG	KOB
53.	LC15V00023S053	[1]	SPOOL	KOB
54.	LC15V00023S054	[2]	SPRING SEAT	KOB
55.	YN15V00017S053	[2]	SPRING	KOB
56.	LC15V00023S056	[2]	COVER	KOB
57.	ZD12G04000	[2]	O-RING,39.40mm ID x 45.60mm OD x 3.10mm	KOB ID 39.40 ± 0.37 x OD 45mm
58.	LC15V00023S058	[1]	SPOOL	KOB
59.	2436R874S6	[1]	PIN	KOB
60.	2436R874S5	[1]	SPRING SEAT	KOB
61.	2436R874S7	[1]	SPRING	KOB
62.	LC15V00023S062	[1]	PLUG	KOB
63.	ZD12P01400	[2]	O-RING	KOB ID 13.80 ± 0.19 x OD 18mm
64.	2436R874S3	[1]	FLEXIBLE JOINT	KOB
65.	2436U1317S13	[2]	PLUG	KOB
66.	ZD12P01100	[2]	O-RING	KOB ID 10.8mm x OD 13.2mm
67.	LC15V00023S067	[2]	RESTRICTOR	KOB
68.	LC15V00023S068	[2]	SPRING	KOB
69.	YN15V00017S038	[5]	PLUG	KOB
70.	ZD12P00800	[5]	O-RING,1.9mm Thk x 7.8mm ID, 90 Duro	KOB ID 7.8mm x OD 9.7mm
71.	YN15V00017S017	[3]	CHECK VALVE	KOB
72.	YN15V00017S026	[3]	SPRING	KOB
73.	GN15V00010S024	[2]	RESTRICTOR	KOB
74.	ZD12P01250	[1]	O-RING	KOB ID 12.3mm X OD 14.7mm
75.	GN15V00010S025	[1]	RESTRICTOR	KOB
76.	ZD12P01500	[1]	O-RING	KOB ID 14.80 ± 0.20 x OD 19mm
77.	2441U1040S40	[1]	O-RING	KOB
78.	2441U1040S32	[1]	ROLLER BEARING	KOB
79.	LS15V00014S033	[2]	SHIM	KOB Superseded by part number: 2441U1040S34
80.	2441U1040S35	[1]	PIN	KOB
81.	LC15V00021S008	[1]	PLATE	KOB VALVE
82.	YN15V00003S030	[10]	SPRING	KOB
83.	ZS23C18050	[10]	SCREW,Hex Socket Head, M18 x 50mm	KOB M18x2.50x50mm
84.	LC22V00006F1	[2]	VALVE	KOB ASSY,OVERLOAD RELIEF SEE(HC385)
85.	2441U1040S10	[1]	COUPLING JOINT	KOB
86.	ZR26X04000	[1]	RING	KOB Retaining -- ID 40 x OD 43.5 x Th 1.8mm
87.	YR30V00001S115	[2]	PLUG	KOB
88.	ZD12P01800	[2]	O-RING	KOB ID 17.8mm x OD 20.2mm
K.	LC15V00023R100	[1]	KIT	SM Ref 33x1 34x1
K.	LC15V00023R200	[1]	KIT	SM Ref 38x2 39x1
K.	LC15V00023R300	[1]	KIT	SM Ref 46x7 47x6
