EX60 EX60-1 TRAVEL REDUCER 9069295 9096479 9138927 TRAVEL DEVICE EX60-1 TRAVEL GEARBOX
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS

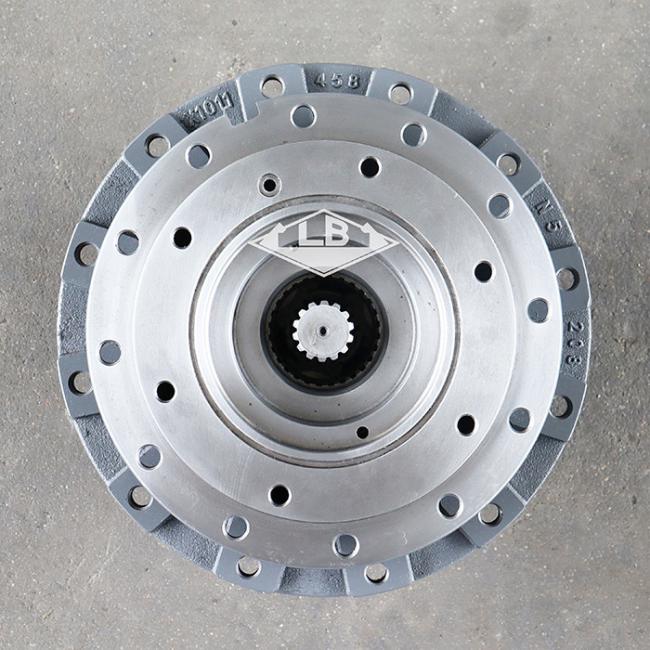

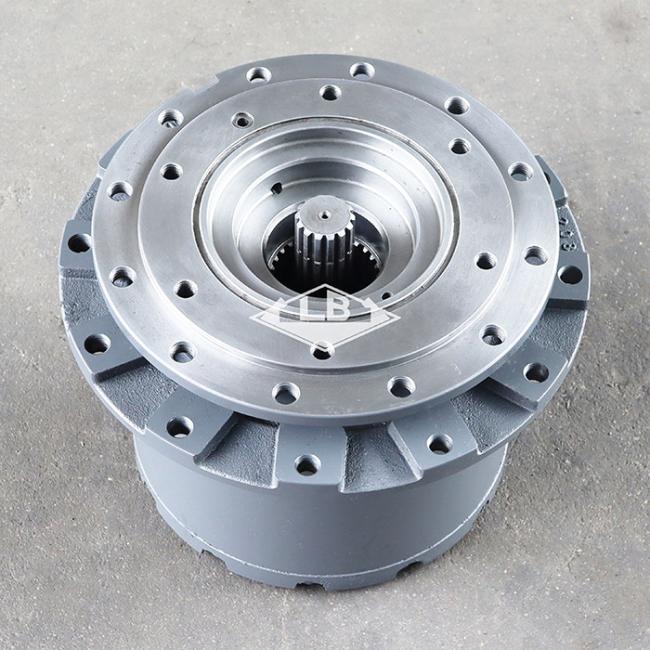

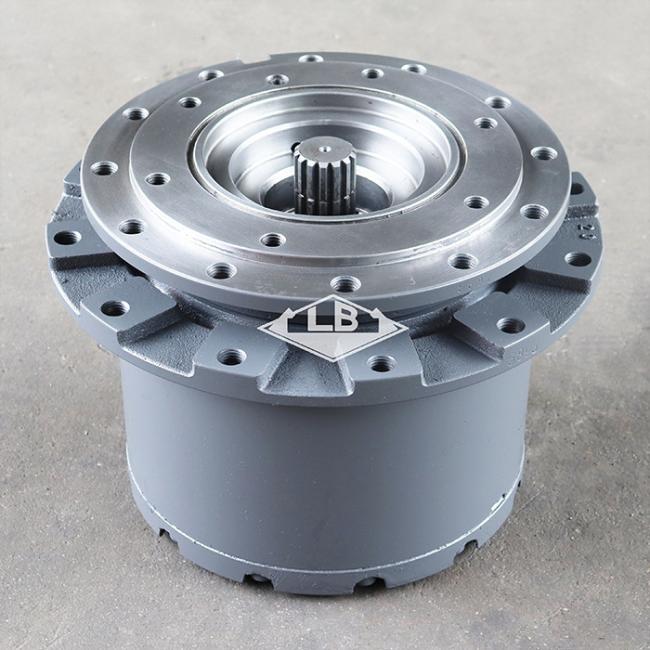

| Part name | EX60-1 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9069295 9096479 9138927 | |||||
| Frame holes | 12 | |||||
| Sprocket holes | 12 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 90 KG | |||||
| MOQ | 1 pc | |||||
Product Description

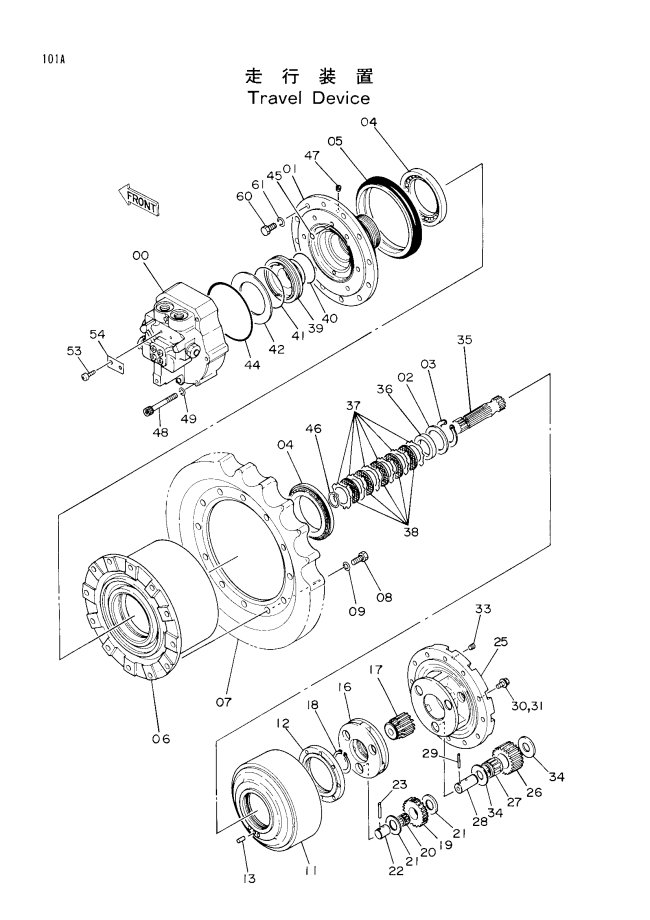

Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 9069509 | [1] | MOTOR;OIL | I 9123069 |
| 00. | 9123069 | [1] | MOTOR;OIL | Y 9138838 |
| 00. | 9138838 | [1] | MOTOR;OIL | |
| 00-49. | 9069295 | [2] | TRAVEL DEVICE ASS'Y | Y 9096479 |
| 00-54. | 9096479 | [2] | TRAVEL DEVICE ASS'Y | I 9138927 |
| 00-54. | 9138927 | [2] | TRAVEL DEVICE ASS'Y | |
| 01. | 1011457 | [1] | HOUSING | |
| 02. | 4092443 | [1] | SPACER | |
| 03. | 991726 | [1] | RING;RETAINING | |
| 04. | 4148014 | [2] | BRG.;ROL | |
| 05. | 4092483 | [1] | SEAL;GROUP | |
| 06. | 1011458 | [1] | DRUM | |
| 07. | 1010447 | [1] | SPROCKET | |
| 08. | J931635 | [12] | BOLT | Y J931640 |
| 08. | J931635 | [12] | BOLT | |
| 08. | J931640 | [12] | BOLT | Y J931635 |
| 09. | A590916 | [12] | WASHER;SPRING | |
| 11. | 2023132 | [1] | GEAR;RING | |
| 12. | 3027147 | [1] | NUT | |
| 13. | 4148012 | [1] | PIN;KNOCK | |
| 16. | 2023175 | [1] | CARRIER | |
| 17. | 3027146 | [1] | GEAR;SUN | |
| 18. | 959499 | [1] | RING;RETAINING | |
| 19. | 3027148 | [3] | GEAR;PLANETARY | |
| 20. | 4177007 | [3] | BRG.;NEEDLE | |
| 21. | 4192910 | [6] | PLATE;THRUST | |
| 22. | 4178202 | [3] | PIN | |
| 23. | 4169566 | [3] | PIN;SPRING | |
| 23. | 4173093 | [3] | PIN;SPRING | Y 4169566 |
| 25. | 1010450 | [1] | CARRIER | |
| 26. | 3027149 | [3] | GEAR;PLANETARY | |
| 27. | 4148013 | [3] | BRG.;NEEDLE | |
| 28. | 4148016 | [3] | PIN | |
| 29. | 4144017 | [3] | PIN;SPRING | |
| 30. | J011230 | [12] | BOLT;SEMS | |
| 30. | M221232 | [12] | BOLT | I J011230 |
| 31. | A590912 | [12] | WASHER;SPRING | |
| 33. | 4245797 | [3] | PLUG | |
| 33. | 94-2013 | [2] | PLUG | |
| 33. | 94-2013 | [3] | PLUG | Y 4245797 |
| 34. | 4148080 | [6] | PLATE;THRUST | |
| 35. | 2017872 | [1] | SHAFT;PROP. | |
| 36. | 4092444 | [1] | SPACER | |
| 37. | 3036156 | [6] | PLATE | T 3070674 |
| 37. | 3036156 | [6] | PLATE | T 3070675 |
| 37. | 3070675 | [6] | PLATE | |
| 38. | 3036157 | [5] | PLATE;FRICTION | T 3070674 |
| 38. | 3036157 | [5] | PLATE;FRICTION | T 3070675 |
| 38. | 3070674 | [5] | PLATE;FRICTION | |
| 39. | 3036158 | [1] | PISTON | |
| 40. | 4092712 | [1] | D-RING | |
| 41. | 4092713 | [1] | D-RING | |
| 42. | 3017067 | [1] | SPRING;DISC | |
| 44. | 4154877 | [1] | O-RING | |
| 45. | 957366 | [1] | O-RING | |
| 46. | 929231 | [1] | RING | |
| 47. | 94-2010 | [1] | PLUG | |
| 48. | 4192042 | [6] | BOLT;SOCKET | |
| 49. | A590914 | [6] | WASHER;SPRING | |
| 53. | M492564 | [2] | SCREW;DRIVE | |
| 54. | 3053559 | [1] | NAME-PLATE | Y 3071686 |
| 54. | 3071686 | [1] | NAME-PLATE | (FOR TRANSMISSION) |
| 60. | J931650 | [24] | BOLT | |
| 61. | A590916 | [24] | WASHER;SPRING |
