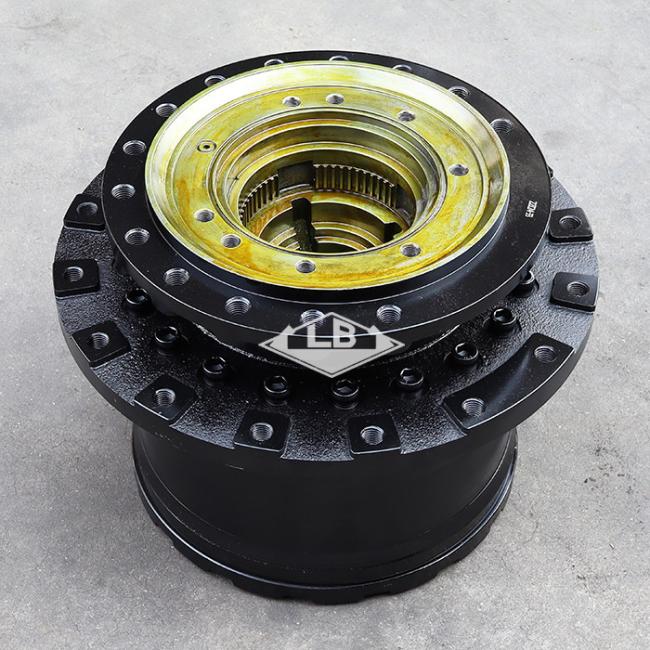

EX200-2 TRAVEL DEVICE 9091681 9116392 9116393 EX200-2 Travel gearbox
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS
| Part name | EX200-2 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9091681 9116392 9116393 | |||||
| Frame holes | 14 | |||||
| Sprocket holes | 16 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 160 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01-4. | 9091681 | [2] | TRAVEL DEVICE ASS'Y | |
| 01-4. | 9116392 | [2] | TRAVEL DEVICE ASS'Y | |
| 01-4. | 9116393 | [2] | TRAVEL DEVICE ASS'Y | |
| 01. | 9101523 | [1] | MOTOR;OIL | |
| 01. | 9116388 | [1] | MOTOR;OIL | |
| 01. | 9116390 | [1] | MOTOR;OIL | |
| 02. | 4114753 | [1] | SEAL;GROUP | |
| 03. | 4246793 | [2] | BRG.;ROL. | |
| 04. | 1013983 | [1] | DRUM | |
| 05. | 1010203 | [1] | SPROCKET | |
| 06. | J932055 | [16] | BOLT | |
| 07. | 3047448 | [1] | HUB | |
| 09. | 4246783 | [1] | PIN;KNOCK | |
| 10. | A590920 | [16] | WASHER;SPRING | |
| 11. | 1013981 | [1] | GEAR;RING | |
| 12. | J931660 | [20] | BOLT | |
| 13. | 4246792 | [1] | O-RING | |
| 14. | 1013980 | [1] | CARRIER | |
| 15. | 3047444 | [3] | GEAR;PLANETARY | |
| 16. | 4210850 | [6] | BRG.;NEEDLE | |
| 17. | 4246790 | [3] | PIN | |
| 18. | 4116309 | [3] | PIN;SPRING | |
| 19. | 3047443 | [1] | GEAR;SUN | |
| 20. | 4269295 | [12] | PLATE;THRUST | |
| 21. | 1013979 | [1] | CARRIER | |
| 22. | 4246785 | [2] | SPACER | |
| 23. | 3047446 | [3] | GEAR;PLANETARY | |
| 24. | 4246786 | [3] | BRG.;NEEDLE | |
| 25. | 4246789 | [3] | PIN | |
| 26. | 4246358 | [3] | PIN;SPRING | |
| 27. | 3047442 | [1] | GEAR;SUN | |
| 29. | 1013982 | [1] | CARRIER | |
| 30. | 3047447 | [3] | GEAR;PLANETARY | |
| 31. | 4246787 | [3] | BRG.;NEEDLE | |
| 32. | 4246788 | [3] | PIN | |
| 33. | 4192020 | [3] | PIN;SPRING | |
| 34. | 2028213 | [1] | SHAFT;PROP. | |
| 36. | 2028212 | [1] | COVER | |
| 38. | J011230 | [16] | BOLT;SEMS | |
| 40. | 4245797 | [3] | PLUG | |
| 42. | M492564 | [2] | SCREW;DRIVE | |
| 43. | 3053559 | [1] | NAME-PLATE | |
| 45. | 3057125 | [1] | NUT | |
| 46. | 4192983 | [6] | PLATE;THRUST | |
| 47. | 4285323 | [1] | PIN;STOPPER | |
| 132. | 4248607 | [28] | BOLT | |
| 133. | 4018545 | [28] | WASHER |
