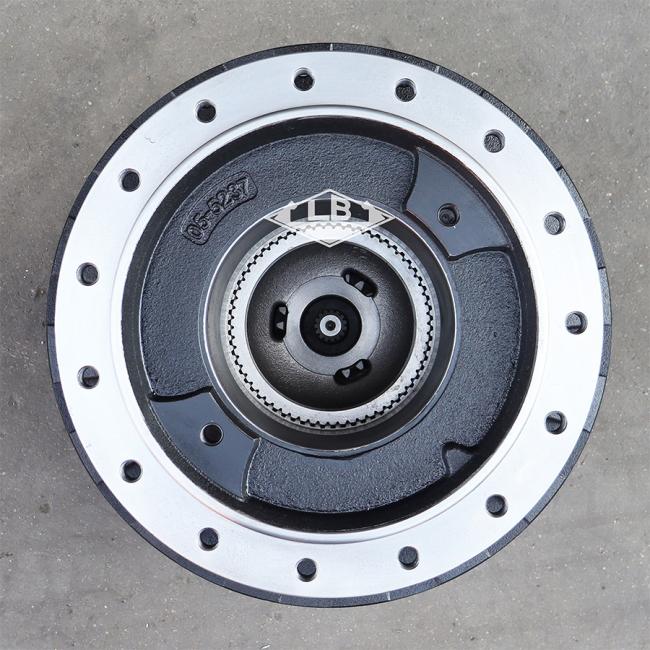

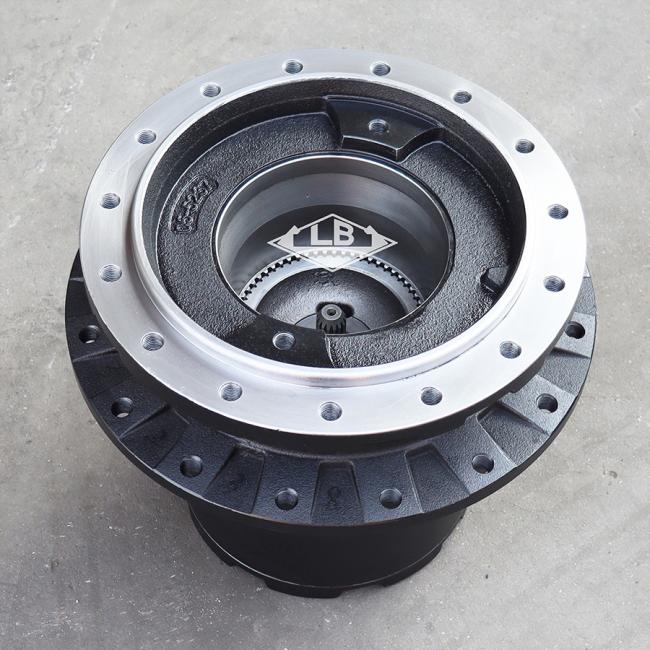

EX100-1 EX120-1 Travel device 9065934 9080068 9096481 9065935 9080069 9096482 EX120 Travel gearbox
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS
| Part name | EX100-1 EX120-1 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9065934 9080068 9096481 9065935 9080069 9096482 | |||||
| Frame holes | 15 | |||||
| Sprocket holes | 16 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 138 KG | |||||
| MOQ | 1 pc | |||||
Product Description

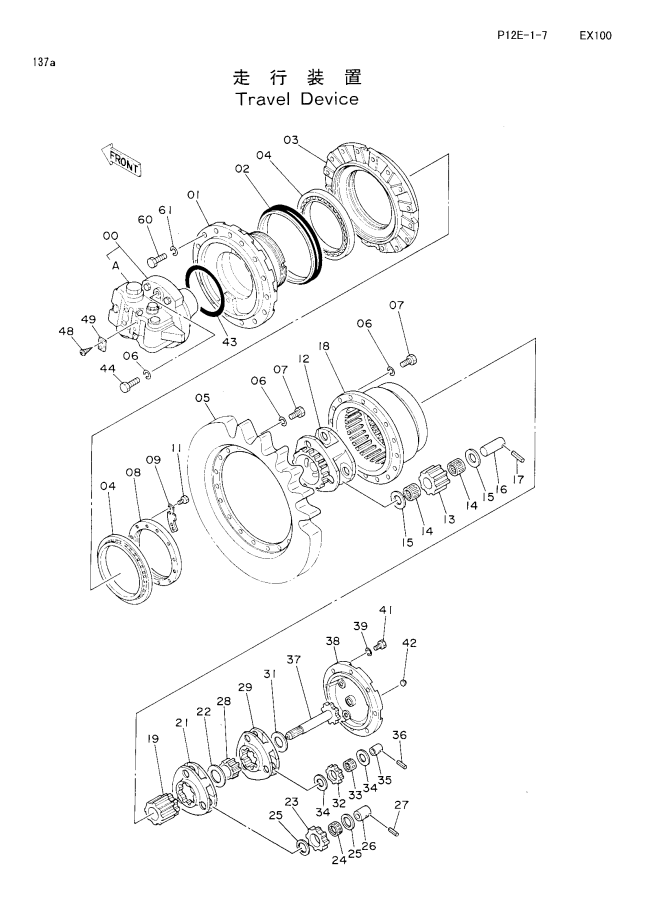

Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 9066006 | [1] | MOTOR;OIL | |
| 00. | 9080112 | [1] | MOTOR;OIL | Y 9080113 |
| 00. | 9080113 | [1] | MOTOR;OIL | |
| 00-44. | 9065934 | [2] | TRAVEL DEVICE ASS'Y | |
| 00-44. | 9080068 | [2] | TRAVEL DEVICE ASS'Y | Y 9096481 |
| 00-49. | 9096481 | [2] | TRAVEL DEVICE ASS'Y | |
| 00A. | 9066005 | [1] | VALVE;BRAKE | |
| 00A. | 9080510 | [1] | VALVE;BRAKE | Y 9080511 |
| 00A. | 9080511 | [1] | VALVE;BRAKE | |
| 01. | 1009905 | [1] | HOUSING | |
| 02. | 4179741 | [1] | SEAL;GROUP | |
| 03. | 1009401 | [1] | FLANGE | |
| 04. | 4178201 | [2] | BRG.;ROL. | Y 4240716 |
| 04. | 4178201 | [2] | BRG.;ROL. | |
| 04. | 4240716 | [2] | BRG.;ROL. | |
| 04. | 4240716 | [2] | BRG.;ROL. | |
| 05. | 1010325 | [1] | SPROCKET | |
| 06. | A590916 | [34] | WASHER;SPRING | |
| 07. | J931640 | [32] | BOLT | |
| 08. | 3033234 | [1] | NUT | |
| 09. | 4178862 | [1] | PLATE;LOCK | |
| 11. | J901020 | [2] | BOLT | |
| 12. | 1009808 | [1] | CARRIER | |
| 13. | 3034195 | [3] | GEAR;PLANETARY | |
| 14. | 4183108 | [6] | BRG.;NEEDLE | |
| 15. | 4196487 | [6] | PLATE;THRUST | |
| 16. | 4183107 | [3] | PIN | |
| 17. | 4144020 | [3] | PIN;SPRING | |
| 18. | 1010014 | [1] | GEAR;RING | |
| 19. | 3033236 | [1] | GEAR;SUN | |
| 21. | 2021634 | [1] | CARRIER | |
| 22. | 4187683 | [1] | SPACER | |
| 23. | 3033238 | [3] | GEAR;PLANETARY | |
| 24. | 4113606 | [3] | BRG.;NEEDLE | |
| 25. | 4196489 | [6] | PLATE;THRUST | |
| 26. | 4178203 | [3] | PIN | |
| 27. | 4173093 | [3] | PIN;SPRING | |
| 28. | 3033235 | [1] | GEAR;SUN | |
| 29. | 2022129 | [1] | CARRIER | |
| 29. | 2025957 | [1] | CARRIER | |
| 31. | 4178208 | [1] | SPACER | |
| 31. | 4187683 | [1] | SPACER | |
| 32. | 3034194 | [3] | GEAR;PLANETARY | |
| 32. | 3041960 | [3] | GEAR;PLANETARY | |
| 33. | 4177007 | [3] | BRG.;NEEDLE | |
| 34. | 4192910 | [6] | PLATE;THRUST | |
| 35. | 4178202 | [3] | PIN | |
| 36. | 4169566 | [3] | PIN;SPRING | |
| 37. | 2022128 | [1] | SHAFT;PROP. | |
| 37. | 2025958 | [1] | SHAFT;PROP. | |
| 37. | 2028644 | [1] | SHAFT;PROP. | |
| 38. | 2022681 | [1] | COVER | T 2025960 |
| 38. | 2025959 | [1] | COVER | 94-2023 |
| 38. | 2025960 | [1] | COVER | |
| 39. | A590912 | [8] | WASHER;SPRING | |
| 41. | M221228 | [8] | BOLT | |
| 42. | 4245797 | [3] | PLUG | |
| 42. | 4245797 | [3] | PLUG | |
| 42. | 94-2013 | [2] | PLUG | |
| 42. | 94-2013 | [3] | PLUG | Y 4245797 |
| 42. | 94-2013 | [3] | PLUG | |
| 43. | 4092970 | [1] | O-RING | |
| 44. | J931670 | [2] | BOLT | |
| 48. | M492564 | [2] | SCREW;DRIVE | |
| 49. | 3053559 | [1] | NAME-PLATE | |
| 60. | J931665 | [28] | BOLT | |
| 61. | A590916 | [28] | WASHER;SPRING |
