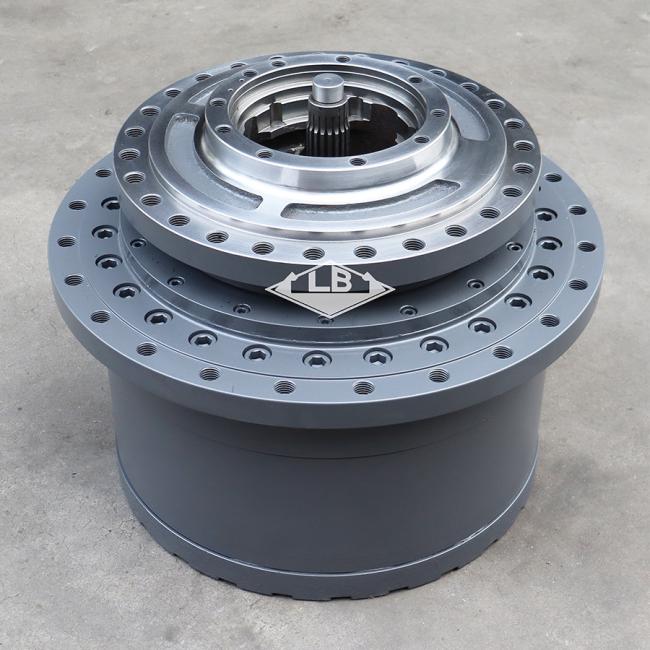

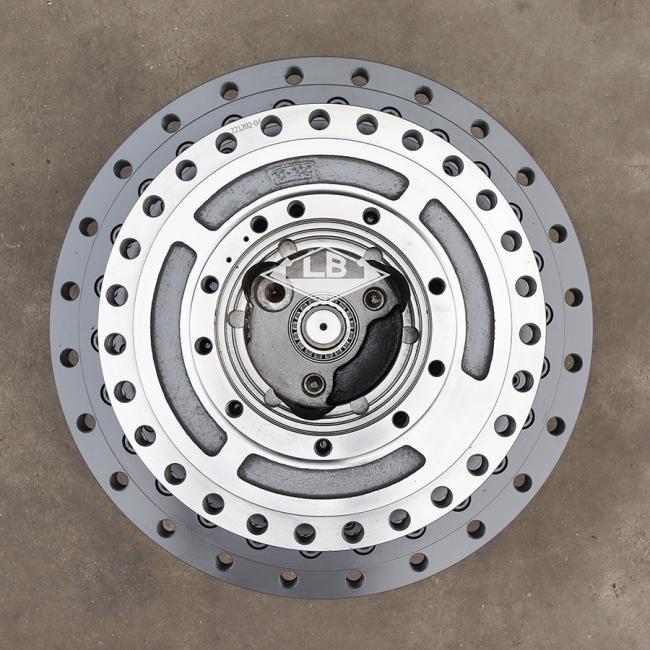

SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS
| Part name | SK460-8 SK485-8 GM85 Travel gearbox | |||||
| Equipment | Apply to Kobelco EXCAVATOR | |||||
| Part no. | LS53D00007F1 | |||||
| Frame holes | 27 | |||||
| Sprocket holes | 24 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 410 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group (SK485-8) - ACERA MARK 8 EXCAVATOR - TIER 3 (NA) YS07U0701 - (8/07-12/12):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | LS53D00007F1 | [1] | REDUCER | KOB Propel Reduction Assembly |
| 1. | LS53D00007S001 | [1] | HOUSING | KOB Housing - NSS (order LS15V00020F1) |
| 2. | LS53D00007S002 | [2] | BEARING | KOB Bearing |
| 3. | LS53D00007S003 | [1] | RING GEAR | KOB Gear, Ring |
| 4. | ZS23C20120 | [26] | SCREW | HIT M20x2.5x120mm |
| 5. | LS53D00007S005 | [1] | COVER | KOB Cover, Seal |
| 6. | ZS23C10025 | [16] | SCREW,Hex Socket Head, M10 x 25mm | KOB M10x1.50x25mm Superseded by part number: ZS28C10025 |
| 7. | 24100U1743S24 | [1] | SEAL | KOB |
| 8. | LS53D00007S008 | [1] | SHIM | KOB Shim |
| 9. | LS53D00007S009 | [2] | LOCK WASHER | KOB Lock Washer |
| 10. | LS53D00007S010 | [1] | SUPPORT | KOB Ring |
| 11. | LS53D00007S011 | [1] | SPIDER | KOB Carrier |
| 12. | 24100U1743S14 | [3] | PINION | KOB |
| 13. | ZR26X12000 | [6] | LOCKING RING | KOB Retaining -- ID 124 x OD 127 x Th 4.0mm |
| 14. | LS53D00007S014 | [6] | BEARING | KOB Bearing |
| 15. | LS53D00003S012 | [3] | PIN | KOB Carrier |
| 16. | ZP26D10063 | [3] | ROLL PIN | HIT OD 10 x 63mm Long |
| 17. | LS53D00007S017 | [1] | SPACER | KOB Spacer |
| 18. | 24100U1743S10 | [1] | SUN GEAR | KOB |
| 19. | LS53D00003S002 | [1] | SPIDER | KOB Carrier |
| 20. | LS53D00003S006 | [3] | GEAR | KOB Gear, Planetary |
| 21. | LS53D00003S005 | [6] | PLATE | KOB Washer, Thrust |
| 22. | LS53D00007S022 | [3] | NEEDLE BEARING | KOB Bearing, Needle |
| 23. | LC53D00007S003 | [3] | PIN | KOB |
| 24. | ZP26D06036 | [3] | PIN | KOB Roll -- OD 06 x 36mm Long |
| 25. | LS53D00007S025 | [1] | SUN GEAR | KOB Gear, Sun |
| 26. | LQ15V00005S008 | [1] | PLATE | KOB Thrust |
| 27. | LS53D00007S027 | [1] | COVER | KOB Cover |
| 28. | ZS23C12030 | [25] | SCREW,Hex Socket Head, M12 x 30mm | KOB M12x1.75x30mm |
| 29. | YR30V00001S116 | [2] | PLUG | KOB |
| 30. | ZD12P02400 | [2] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
