VOLVO EC290 Travel Gear Box Final Drive VOE14569763 VOE14704139 Travel Reduction Gear
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

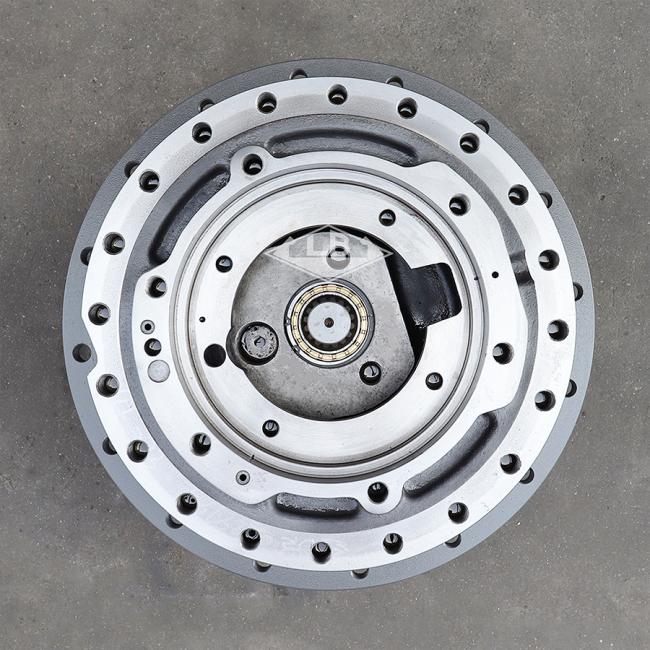

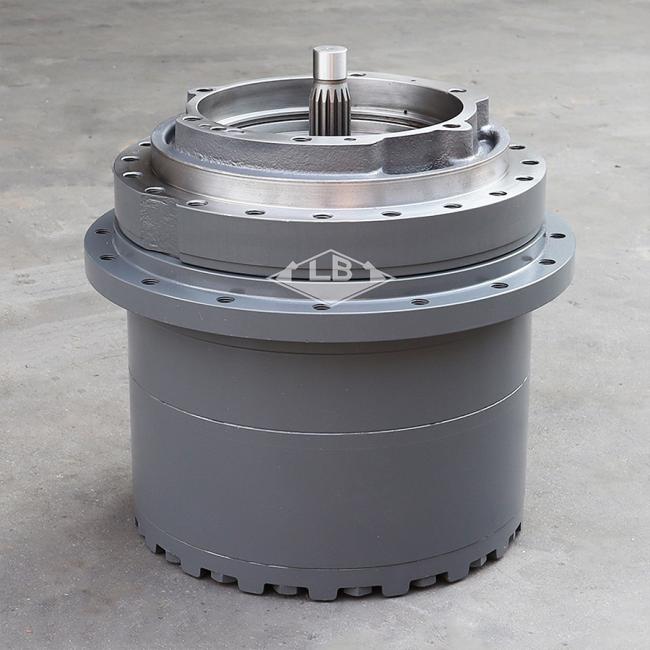

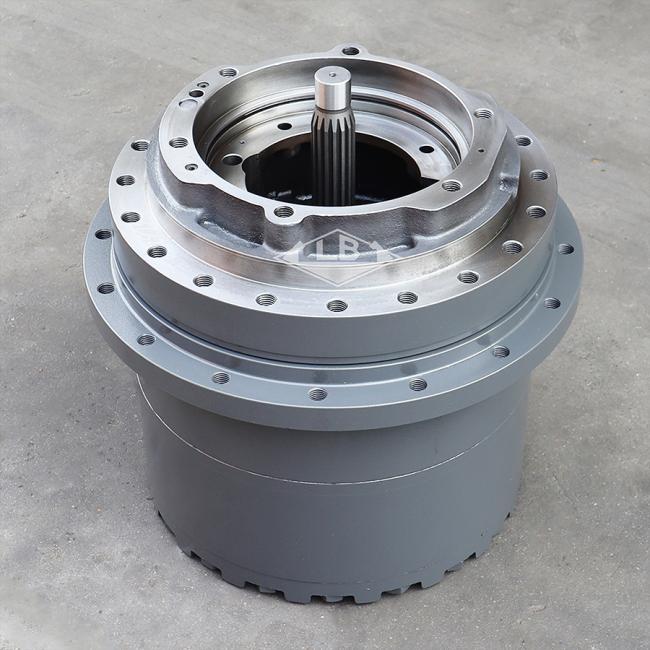

VOLVO EC290 Final drive without motor VOE14569763 VOE14704139 Travel reduction gear EC290 Travel gearbox
PRODUCT PARAMETERS
| Part name | EC290 Travel gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14569763 VOE14704139 | |||||
| Frame holes | 30 | |||||
| Sprocket holes | 16 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 380 KG | |||||
| MOQ | 1 pc | |||||
Product Description

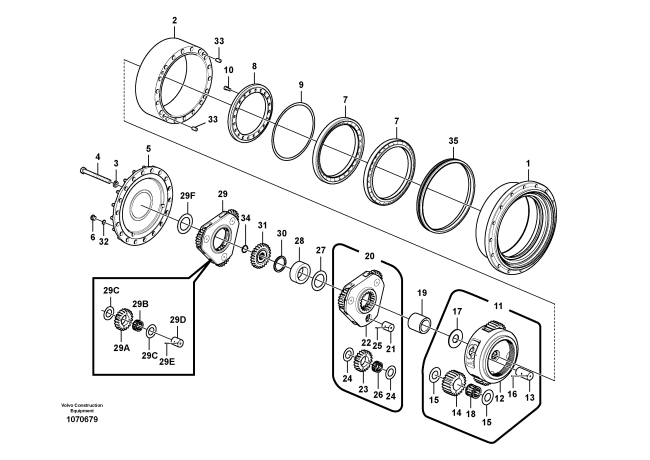

Parts on group Travel gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14569763 | [1] | Gearbox | S/N -19601/-50120/-86207/-358 | |
| VOE14704139 | [1] | Travel gearbox | S/N 19602-/50121-/86208- | |
| 1. | VOE14570930 | [1] | Housing | |
| 2. | VOE14566409 | [1] | Gear | |
| 3. | SA9213-20000 | [18] | Spring washer | |
| 4. | VOE60110006 | [19] | Hexagon screw | |
| 5. | VOE14566432 | [1] | Cover | |
| 6. | VOE14883847 | [2] | Plug | |
| 7. | SA7117-38230 | [2] | Bearing | S/N -19601/-50120/-86207/-358 |
| 7. | VOE14704141 | [2] | Bearing | S/N 19602-/50121-/86208- |
| 8. | VOE14566403 | [1] | Retainer | |
| 9. | VOE14566404 | [REQ] | Shim | THICK = 0,1 mm |
| 9. | VOE14566405 | [REQ] | Shim | THICK = 0,5 mm |
| 9. | VOE14566406 | [REQ] | Shim | THICK = 0,7 mm |
| 9. | VOE14566407 | [REQ] | Shim | THICK = 0,8 mm |
| 9. | VOE14566408 | [REQ] | Shim | THICK = 1,0 mm |
| 10. | VOE984088 | [20] | Hex. socket screw | |
| 11. | VOE14566410 | [1] | Planet carrier | |
| 12. | VOE14566411 | [1] | Planet carrier | |
| 13. | VOE14566415 | [5] | Pin | |
| 14. | VOE14566413 | [4] | Planetary gear | |
| 15. | VOE14566414 | [8] | Washer | |
| 16. | SA9325-06012 | [4] | Spring pin | |
| 17. | SA8230-21020 | [1] | Thrust ring | |
| 18. | VOE14566412 | [4] | Needle bearing | |
| 19. | VOE14566416 | [1] | Gear | |
| 20. | VOE14566418 | [1] | Planet carrier | |
| 21. | VOE14566423 | [3] | Pin | |
| 22. | VOE14566419 | [1] | Planet carrier | |
| 23. | VOE14566421 | [3] | Planetary gear | |
| 24. | VOE14566422 | [6] | Washer | |
| 25. | SA9325-06012 | [3] | Spring pin | |
| 26. | VOE14566420 | [3] | Needle bearing | |
| 27. | VOE14566433 | [1] | Thrust washer | |
| 28. | VOE14566424 | [1] | Gear | |
| 29. | VOE14570931 | [1] | Planet carrier | |
| 29A. | VOE14570933 | [3] | Gear | |
| 29B. | VOE14566427 | [3] | Needle bearing | |
| 29C. | VOE14566429 | [6] | Washer | |
| 29D. | VOE14566430 | [3] | Pin | |
| 29E. | SA9325-06012 | [3] | Spring pin | |
| 29F. | VOE14569232 | [1] | Ring | |
| 30. | VOE14566417 | [1] | Ring | |
| 31. | VOE14570934 | [1] | Gear | |
| 32. | VOE990557 | [2] | O-ring | |
| 33. | VOE950677 | [2] | Pin | |
| 34. | VOE914467 | [1] | Retaining ring | |
| 35. | VOE14667679 | [1] | Seal |
