20Y-27-00560 20Y-27-00590 PC200-8 Travel Gear Box PC200-8 PC200-8MO Final Drive

Name: 20Y-27-00560 20Y-27-00590 PC200-8 Travel Gear Box PC200-8 PC200-8MO Final Drive
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

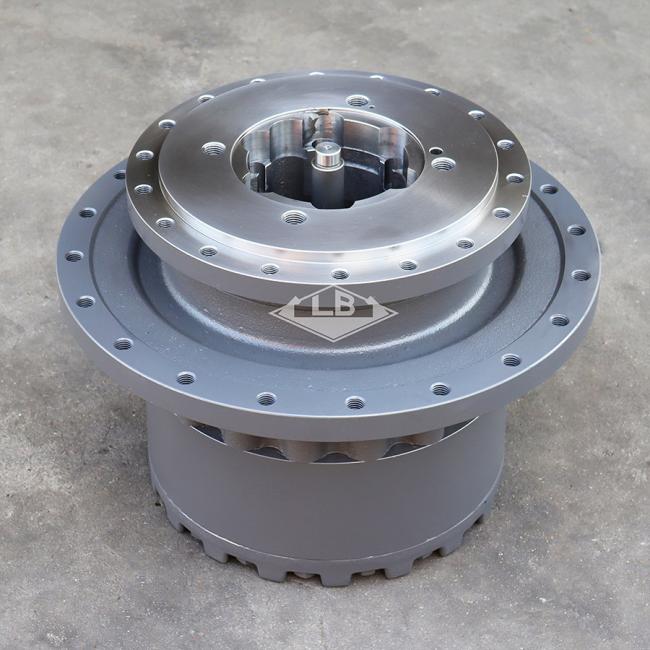

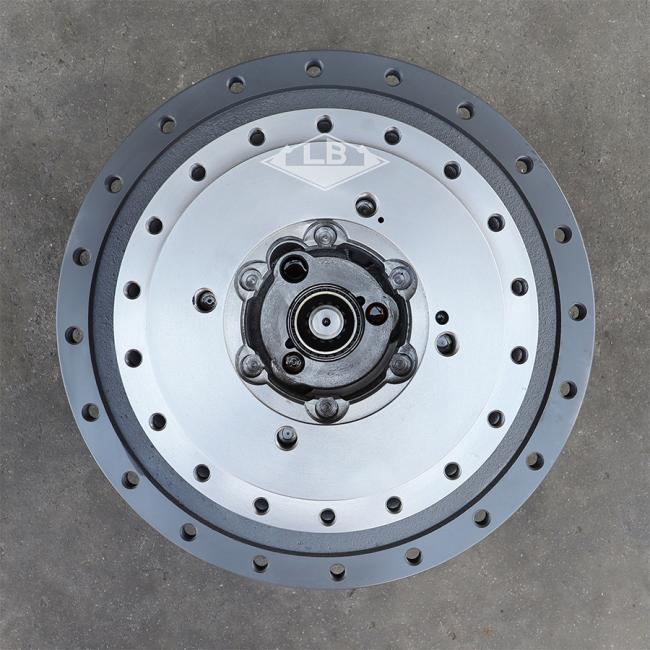

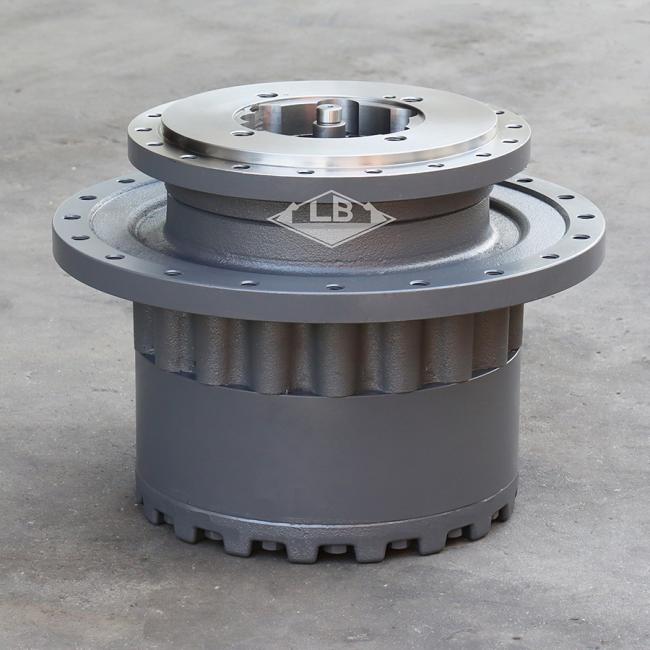

PC200-8 PC200-8MO Final drive Travel motor 20Y-27-00560 20Y-27-00590 PC200-8 Travel gearbox

PRODUCT PARAMETERS

Part name	PC200-8 PC200-8MO Travel gearbox
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	20Y-27-00560 20Y-27-00590
Frame holes	18
Sprocket holes	20
Item condition	New
Logo	LB
Gross weight	265KG
MOQ	1 pc

Product Description

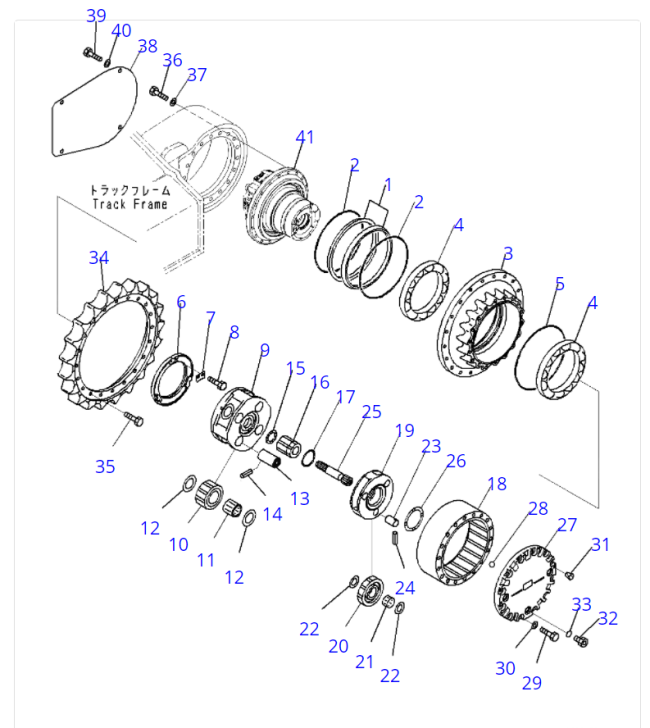

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	20Y-27-00560	[2]	Final Drive Assembly Komatsu	370 kg.
			["SN: 350199-UP"] \|$0.
	20Y-27-00110	[1]	Floating Seal Assembly Komatsu OEM	2.65 kg.
			["SN: 350199-UP"] \|$1.
3.	20Y-27-42520	[1]	Hub Komatsu	0.000 kg.
			["SN: 350199-UP"]
4.	20Y-27-41260	[2]	Bearing Komatsu	4.5 kg.
			["SN: 350199-UP"]
5.	20Y-27-22280	[1]	O-ring Komatsu China	0.02 kg.
			["SN: 350199-UP"]
6.	20Y-27-41190	[1]	Nut, Lock Komatsu	3 kg.
			["SN: 350199-UP"]
7.	20Y-27-41180	[1]	Lock Komatsu	0.04 kg.
			["SN: 350199-UP"]
8.	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 350199-UP"] analogs:["801014093", "0101051020", "801015108"]
9.	20Y-27-42540	[1]	Carrier Komatsu China
			["SN: 350199-UP"]
10.	20Y-27-22140	[4]	Gear Komatsu China	3.72 kg.
			["SN: 350199-UP"]
11.	20Y-27-22220	[4]	Bearing Komatsu China	0.3 kg.
			["SN: 350199-UP"] analogs:["20Y2721270"]
12.	20Y-27-21250	[8]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 350199-UP"]
13.	20Y-27-21230	[4]	Pin Komatsu	1.54 kg.
			["SN: 350199-UP"]
14.	20Y-27-21290	[4]	Pin Komatsu OEM	0.03 kg.
			["SN: 350199-UP"]
15.	20Y-27-13310	[1]	Washer, Thrust Komatsu China	0.08 kg.
			["SN: 350199-UP"]
16.	20Y-27-22130	[1]	Gear Komatsu China	1.75 kg.
			["SN: 350199-UP"]
17.	20Y-27-22240	[1]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 350199-UP"]
18.	20Y-27-22151	[1]	Gear Komatsu	43.7 kg.
			["SN: 350199-UP"] analogs:["20Y2722150"]
19.	20Y-27-22160	[1]	Carrier Komatsu OEM	6 kg.
			["SN: 350199-UP"]
20.	20Y-27-22120	[3]	Gear Komatsu China	2.5 kg.
			["SN: 350199-UP"]
21.	20Y-27-22210	[3]	Bearing Komatsu China	0.12 kg.
			["SN: 350199-UP"] analogs:["20Y2721260"]
22.	20Y-27-21240	[6]	Washer, Thrust Komatsu China	0.02 kg.
			["SN: 350199-UP"]
23.	20Y-27-21220	[3]	Pin Komatsu China	0.411 kg.
			["SN: 350199-UP"]
24.	20Y-27-21280	[3]	Pin Komatsu China	0.01 kg.
			["SN: 350199-UP"]
25.	20Y-27-42510	[1]	Shaft Komatsu OEM	0.000 kg.
			["SN: 350199-UP"]
26.	20Y-27-21310	[1]	Washer Komatsu China	0.17 kg.
			["SN: 350199-UP"]
27.	20Y-27-42530	[1]	Cover Komatsu China
			["SN: 350199-UP"]
28.	04260-01587	[1]	Ball, Steel Komatsu	0.018 kg.
			["SN: 350199-UP"]
29.	20Y-27-13281	[18]	Bolt Komatsu	0.31 kg.
			["SN: 350199-UP"]
30.	01643-31645	[18]	Washer Komatsu	0.072 kg.
			["SN: 350199-UP"] analogs:["802170005", "0164301645"]
31.	07049-01012	[2]	Plug Komatsu	0.001 kg.
			["SN: 350199-UP"]
32.	07044-12412	[3]	Plug Komatsu	0.09 kg.
			["SN: 350199-UP"] analogs:["0704402412", "R0704412412"]
33.	07002-12434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 350199-UP"] analogs:["0700202434", "0700213434"]
34.	20Y-27-11582	[1]	Sprocket Komatsu China	36.2 kg.
			["SN: 350199-UP"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
35.	20Y-27-11561	[20]	Bolt Komatsu China	0.14 kg.
			["SN: 350199-UP"]
36.	01010-61660	[36]	Bolt Komatsu	0.127 kg.
			["SN: 350199-UP"] analogs:["0101031660", "0101081660"]
38.	20Y-30-21192	[2]	Cover Komatsu China
			["SN: 351329-UP"]
38.	20Y-30-21191	[2]	Cover Komatsu	12.25 kg.
			["SN: 350199-351328", "SCC: A2"]
39.	01010-81230	[8]	Bolt Komatsu	0.043 kg.
			["SN: 350199-UP"] analogs:["0101051230", "01010B1230"]
40.	01643-31232	[8]	Washer Komatsu	0.027 kg.
			["SN: 350199-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
41.	708-8F-00250	[-1]	Motor Assembly Komatsu	93 kg.
			["SN: UP"]
