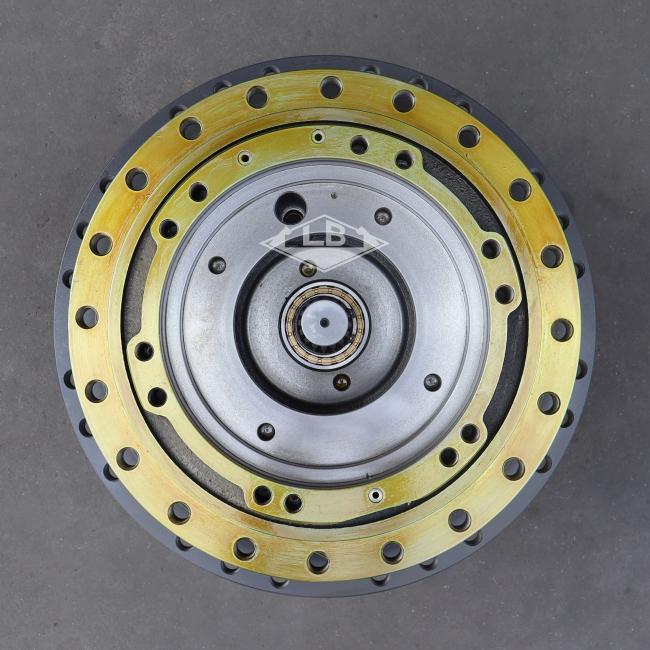

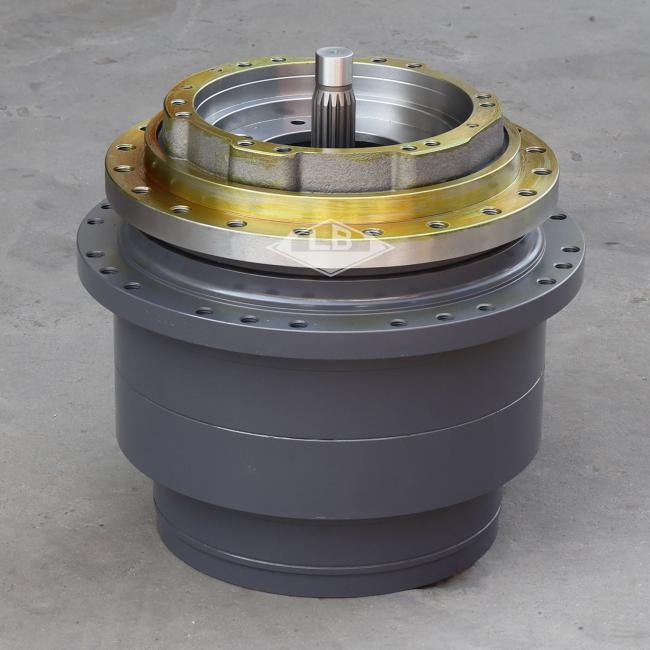

404-00098B 404-00100 170402-00009 Travel Gearbox DX300 SOLAR300 Travel Reduction Gear
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
DX300 SOLAR300 Travel reduction gear 404-00098C 404-00098B 404-00100 170402-00009 Travel gearbox
PRODUCT PARAMETERS
| Part name | DX300 SOLAR300 Travel gearbox | |||||
| Equipment | Apply to DOOSAN EXCAVATOR | |||||
| Part no. | 404-00098C 404-00098B 404-00100 170402-00009 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 24 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 340 KG | |||||
| MOQ | 1 pc | |||||
Product Description

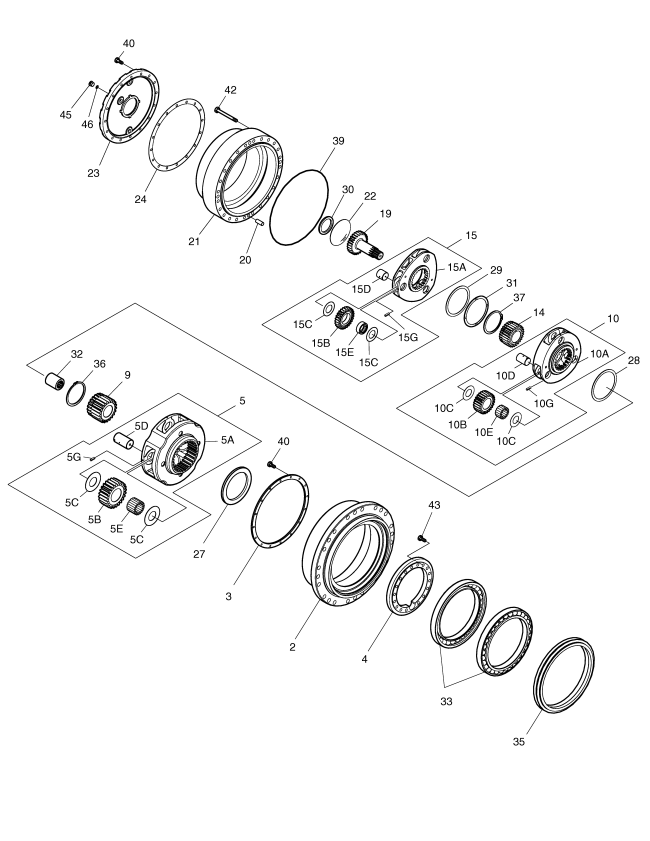

Parts on group SOLAR 300LC-7A:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 404-00098C | [1] | TRAVEL REDUCTION GEAR | |
| 10. | K1003028 | [1] | KIT;CARRIER NO.2 | |
| 10A. | K1000713 | [1] | CARRIER NO.2 | |
| 10B. | K9000795 | [3] | GEAR;PLANETARY NO.2 | |
| 10C. | K9000796 | [6] | WASHER;THRUST NO.2 | |
| 10D. | K9000797 | [3] | PIN NO.2 | |
| 10E. | K1000719 | [45] | ROLLER;NEEDLE | |
| 10G. | S5740900 | [3] | PIN;SPRING | |
| 14. | K9000798 | [1] | GEAR;SUN NO.2 | |
| 15. | K1003027 | [1] | KIT;CARRIER NO.1 | |
| 15A. | K1000712 | [1] | CARRIER NO.1 | |
| 15B. | K9000799 | [3] | GEAR;PLANETARY NO.1 | |
| 15C. | K9000800 | [6] | WASHER;THRUST NO.1 | |
| 15D. | K9000801 | [3] | PIN NO.1 | |
| 15E. | K1000720 | [3] | BEARING;NEEDLE ROLLER | |
| 15G. | S5740650 | [3] | PIN;SPRING M4X20 | |
| 19. | K9000802 | [1] | GEAR;SUN NO.1 | |
| 2. | K1000707A | [1] | HOUSING | |
| 20. | K9000803 | [4] | PIN;DOWEL | |
| 21. | K9000804 | [1] | GEAR;RING | |
| 22. | K9000805 | [1] | WASHER;THRUST NO.4 | |
| 23. | K1000716 | [1] | COVER | |
| 24. | K9000806 | [1] | GASKET | |
| 27. | K9000807 | [1] | BUSHING;THRUST NO.3 | |
| 28. | K9000808 | [1] | BUSHING;THRUST NO.2 | |
| 29. | K9000809 | [1] | BUSHING;THRUST NO.1 | |
| 3. | K9000789A | [1] | STOPPER | |
| 30. | K9000810 | [1] | BUSHING;THRUST NO.4 | |
| 31. | K9000811 | [1] | BUSHING;OIL | |
| 32. | K9000812 | [1] | COUPLING | |
| 33. | K9000813 | [2] | BEARING;ANGULAR | |
| 35. | 2180-6059 | [1] | SEAL;FLOATING | |
| 36. | S6501150 | [1] | RING;SNAP | |
| 37. | S6501100 | [1] | RING;SNAP | |
| 39. | V2180-1217D174 | [1] | O-RING | |
| 4. | K9000790 | [1] | BEARING;GUIDE | |
| 40. | S2212061 | [32] | BOLT;SOCKET M10X1.5X25 | |
| 42. | S2219661 | [24] | BOLT;SOCKET M14X100 | |
| 43. | S2215061 | [17] | BOLT;SOCKET M12X1.75X25 | |
| 45. | 2181-1890D3 | [3] | PLUG | |
| 46. | S8000141 | [3] | O-RING | |
| 5. | K1003029A | [1] | KIT;CARRIER NO.3 | |
| 5A. | K9001290 | [1] | CARRIER NO.3 | |
| 5B. | K9000791 | [4] | GEAR;PLANETARY NO.3 | |
| 5C. | K9000792 | [8] | WASHER;THRUST NO.3 | |
| 5D. | K9001291 | [4] | PIN NO.3 | |
| 5E. | K1000718 | [72] | ROLLER;NEEDLE | |
| 5G. | S5741240 | [4] | PIN;SPRING | |
| 9. | K9000794 | [1] | GEAR;SUN NO.3 |
