210-3529 2103529 Travel Gearbox E EXCAVATOR E315C E315D E315C E315D
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

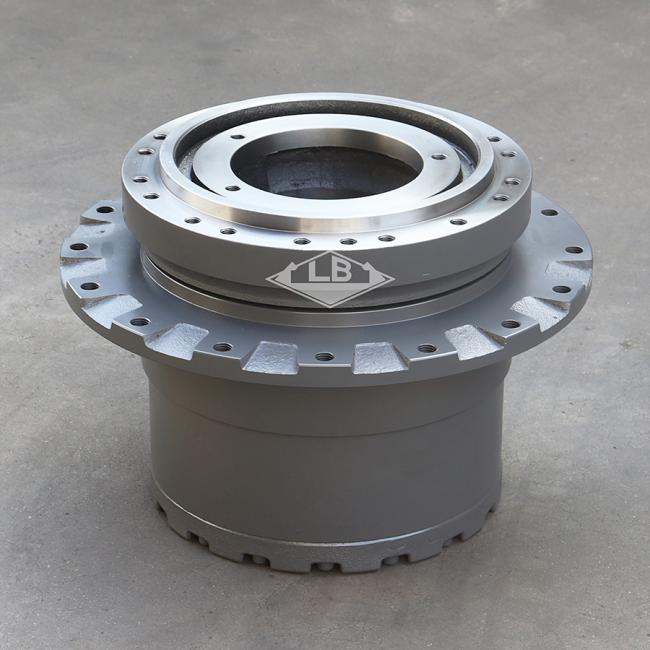

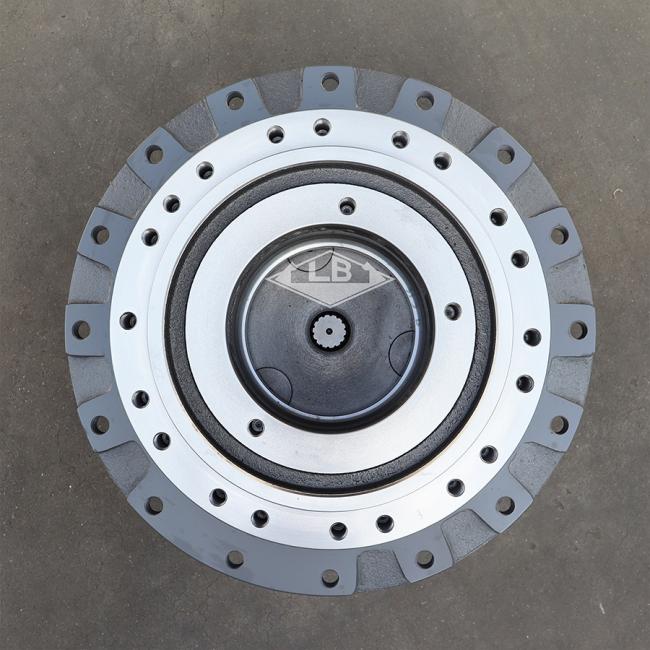

E315C E315D E315C E315D 210-3529 2103529 Travel gearbox
PRODUCT PARAMETERS
| Part name | E315 Travel gearbox | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 210-3529 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 16 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 230 KG | |||||
| MOQ | 1 pc | |||||
Product Description

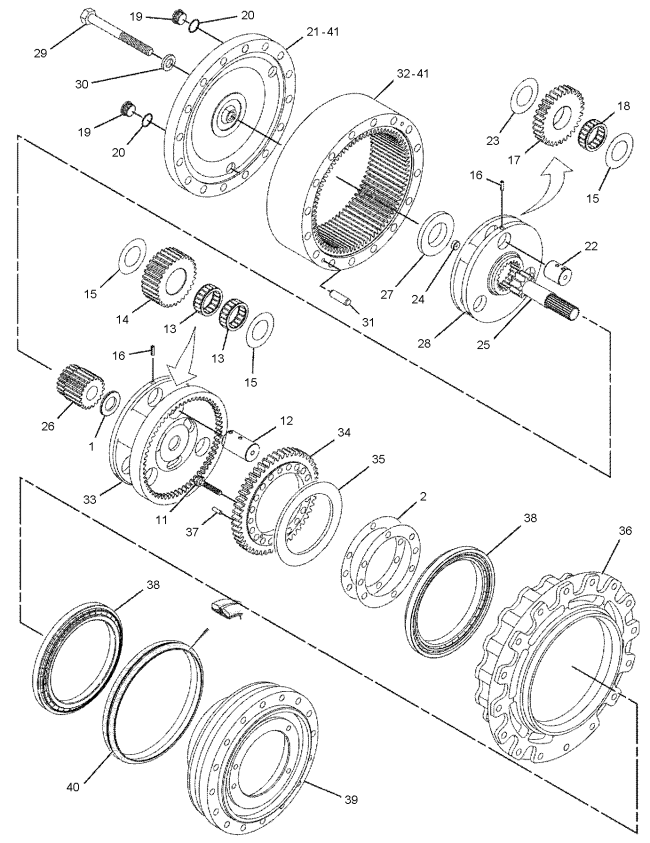

Parts for your 315C EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 165-5785 | [1] | SPACER (40X60.9X1-MM THK) | |
| 2. | 096-1773 B | [1] | SHIM (0.15-MM THK) | |
| 096-1774 B | [1] | SHIM (0.3-MM THK) | ||
| 096-1775 B | [1] | SHIM (0.4-MM THK) | ||
| 096-1776 B | [1] | SHIM (0.5-MM THK) | ||
| 096-1777 B | [1] | SHIM (0.6-MM THK) | ||
| 096-1778 B | [1] | SHIM (0.7-MM THK) | ||
| 096-1779 B | [1] | SHIM (0.8-MM THK) | ||
| 096-1780 B | [1] | SHIM (1-MM THK) | ||
| 096-1781 B | [1] | SHIM (1.6-MM THK) | ||
| 11. | 227-6034 M | [16] | BOLT-FLANGE HEAD (M16X2X60-MM) | |
| 12. | 165-5786 | [3] | SHAFT | |
| 13. | 094-1542 | [6] | BEARING-ROLLER | |
| 14. | 165-5787 | [3] | GEAR-PLANETARY | |
| 15. | 094-1528 | [6] | WASHER (53X84X1-MM THK) | |
| 16. | 095-0891 | [6] | PIN-SPRING | |
| 17. | 165-5788 | [3] | GEAR-PLANETARY | |
| 18. | 094-0616 | [3] | BEARING AS-ROLLER | |
| 19. | 3E-2338 | [2] | PLUG-PIPE | |
| 20. | 7M-8485 | [2] | SEAL-O-RING | |
| 21. | 165-5790 | [1] | COVER | |
| 22. | 7Y-0225 | [3] | SHAFT-PLANETARY | |
| 23. | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) | |
| 24. | 094-0580 | [1] | PLATE (10-MM THK) | |
| 25. | 165-5792 | [1] | GEAR-SUN | |
| 26. | 165-5793 | [1] | GEAR-SUN | |
| 27. | 165-5794 | [1] | SPACER (72X101X7-MM THK) | |
| 28. | 165-5795 | [1] | CARRIER | |
| 29. | 8T-7929 M | [16] | BOLT (M12X1.75X180-MM) | |
| 30. | 8T-4223 | [16] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 31. | 095-1299 | [3] | DOWEL | |
| 32. | 165-3892 | [1] | GEAR-RING | |
| 33. | 165-5796 | [1] | CARRIER | |
| 34. | 165-5797 | [1] | GEAR | |
| 35. | 165-5800 | [1] | WASHER (241X282X3-MM THK) | |
| 36. | 210-3530 | [1] | HOUSING | |
| 37. | 114-1539 | [4] | PIN-DOWEL | |
| 38. | 168-8451 | [2] | BALL BEARING | |
| 39. | 210-3531 | [1] | HOUSING-MOTOR | |
| 40. | 114-1497 | [1] | SEAL GP-DUO-CONE | |
| 41. | 1U-8846 B | SEALANT-GASKET |
