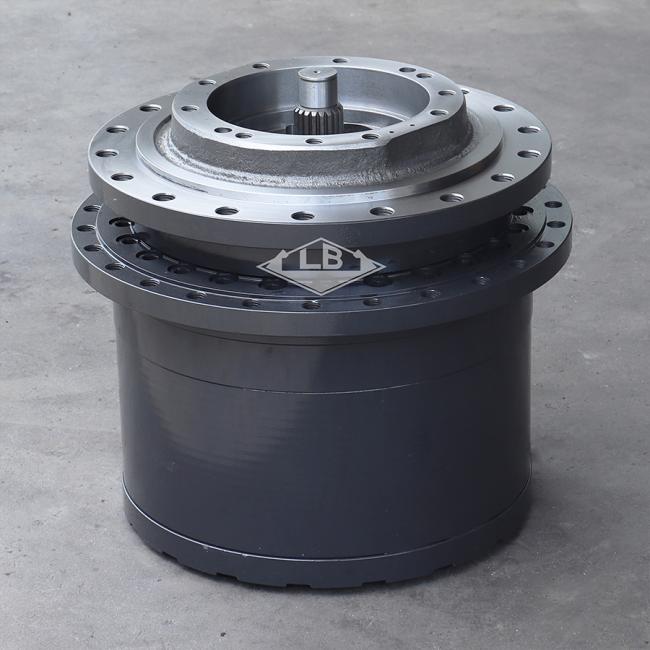

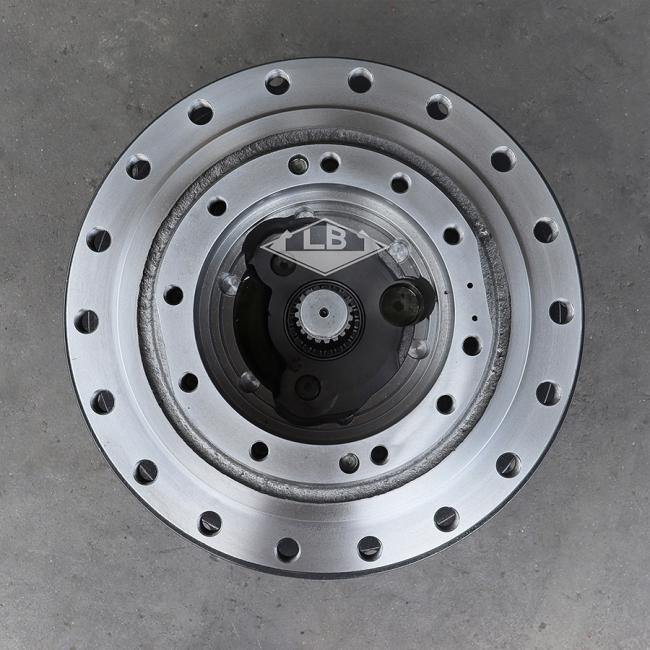

39Q8-42100 39Q8-42101 R300-9 Travel Gear Box R300 R300-9 R320-9 R330-9 Final Drive
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
R300 R300-9 R320-9 R330-9 Final drive 39Q8-42100 39Q8-42101 R300-9 Travel gearbox
PRODUCT PARAMETERS
| Part name | R300-9 Travel gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | 39Q8-42100 39Q8-42101 | |||||
| Frame holes | 18 | |||||
| Sprocket holes | 26 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 345 KG | |||||
| MOQ | 1 pc | |||||
Product Description

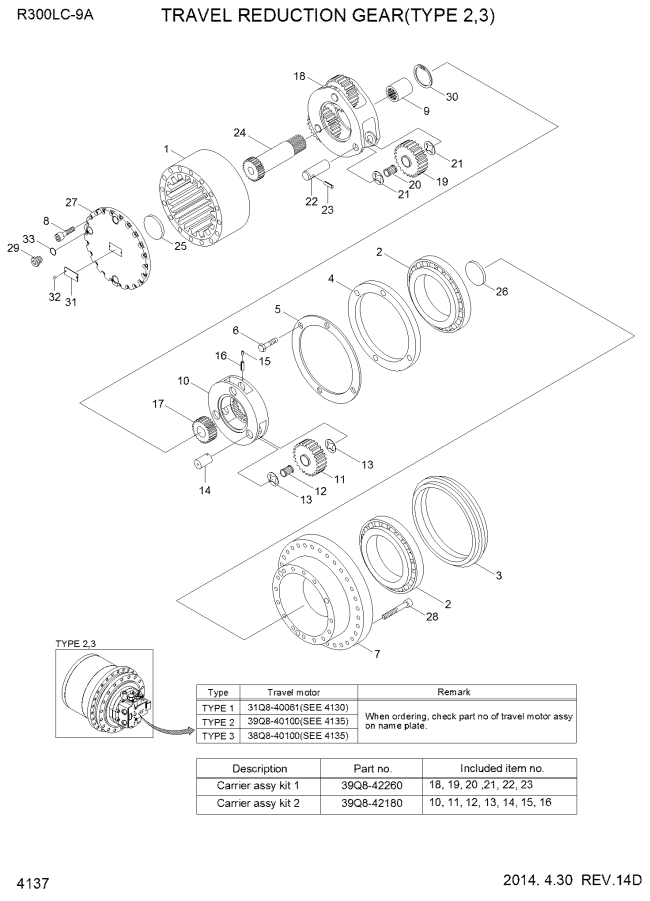

Parts on group TRAVEL REDUCTION GEAR(TYPE 2,3):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4135, 4136 |
| N*-2. | 39Q8-42100 | [1] | TRAVEL REDUCTION GEAR | |
| N*-2. | 39Q8-42101 | [1] | TRAVEL REDUCTION GEAR | |
| 1. | 39Q8-42110 | [1] | GEAR-RING | |
| 2. | 39Q8-42120 | [2] | BEARING-ANG.BALL | |
| 3. | 39Q8-42130 | [2] | SEAL ASSY-FLOATING | |
| 4. | 39Q8-42140 | [1] | RING-NUT | |
| 5. | 39Q8-42150 | [1] | PLATE-LOCK | |
| 6. | S017-120206 | [4] | BOLT-HEX | |
| 7. | 39Q8-42160 | [1] | HOUSING | |
| 8. | S129-070206 | [22] | BOLT-SOCKET,UNIFIED | |
| 9. | 39Q8-42170 | [1] | COUPLING | |
| 9. | 39Q8-42171 | [1] | COUPLING | |
| K10. | 39Q8-42190 | [1] | CARRIER 2 | |
| K11. | 39Q8-42200 | [3] | GEAR-PLANETARY 2 | |
| K12. | 39Q8-42210 | [3] | BEARING-NEEDLE | |
| K13. | 39Q8-42220 | [6] | WASHER-THRUST 2 | |
| K14. | 39Q8-42230 | [3] | PIN-CARRIER 2 | |
| K15. | XKBR-00128 | [3] | PIN-SPRING 2 | |
| K16. | 39Q8-42240 | [3] | PIN-SOLID | |
| 17. | 39Q8-42250 | [1] | GEAR-SUN 2 | |
| K18. | 39Q8-42270 | [1] | CARRIER 1 | |
| K19. | 39Q8-42280 | [3] | GEAR-PLANETARY 1 | |
| K20. | 39Q8-42290 | [3] | BEARING-NEEDLE 1 | |
| K21. | 39Q8-42300 | [6] | WASHER-THRUST 1 | |
| K22. | 39Q8-42310 | [3] | PIN-CARRIER 1 | |
| K23. | S472-600504 | [3] | PIN-SPRING | |
| 24. | 39Q8-42320 | [1] | GEAR-SUN 1 | |
| 25. | 39Q6-42320 | [1] | PLATE-THRUST | |
| 26. | 39Q8-42330 | [1] | PLATE-THRUST | |
| 27. | 39Q8-42340 | [1] | COVER | |
| 28. | S109-18140D | [25] | BOLT-HEX SOCKET HEAD | |
| N28. | S109-18140V | [25] | BOLT-SOCKET | |
| 29. | P220-110205 | [3] | PLUG-HEX | |
| 30. | S602-045001 | [1] | RING-RETAINING,C TYPE | |
| 31. | 39Q8-42350 | [1] | NAME PLATE | |
| 32. | 39Q6-41800 | [2] | RIVET | |
| 33. | S631-024001 | [3] | O-RING | |
| K. | 39Q8-42180 | [1] | CARRIER ASST KIT 2 | SEE ILLUST |
| K. | 39Q8-42260 | [1] | CARRIER ASST KIT 1 | SEE ILLUST |
