227-6044 227-6045 E345 Travel Gear Box E345C E345C E345D E349D Final Drive
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
ZX450-3 ZX470-3 Travel reduction gear 9251680 9263595 9186918 9203565 ZX450 Travel gearbox
PRODUCT PARAMETERS

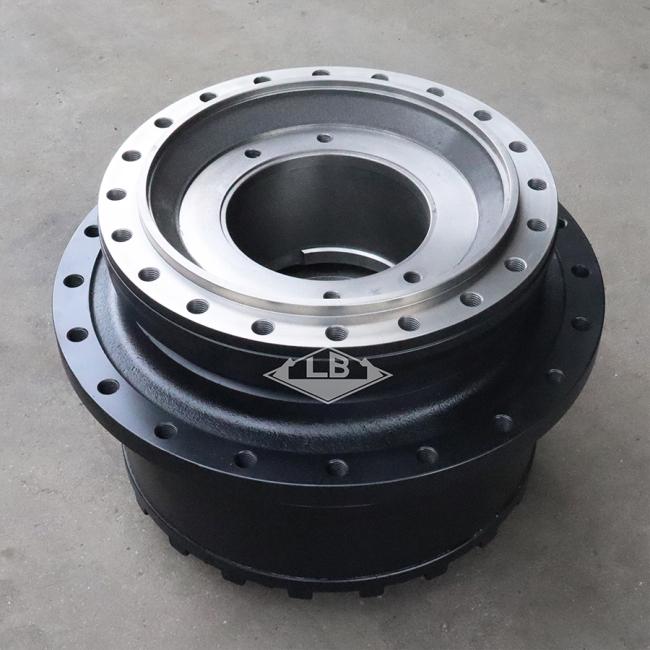

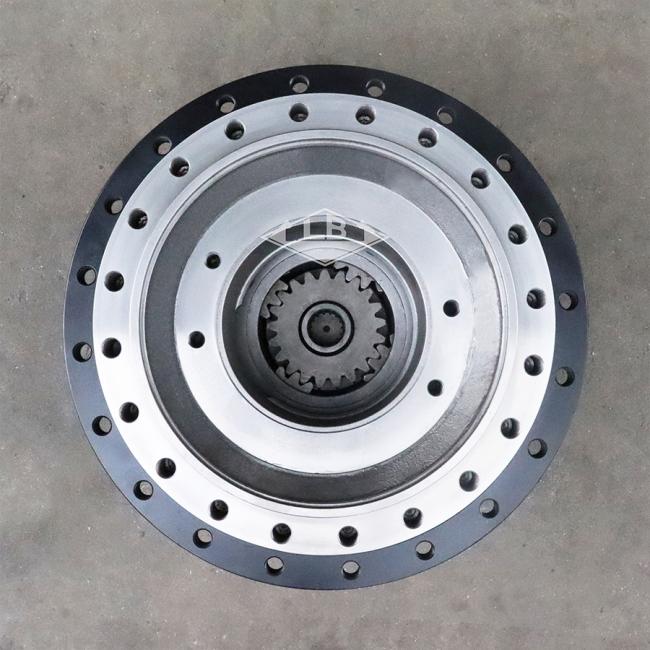

| Part name | E345C E345D E349D Travel gearbox | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 227-6044 227-6045 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 20 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 560 KG | |||||
| MOQ | 1 pc | |||||
Product Description

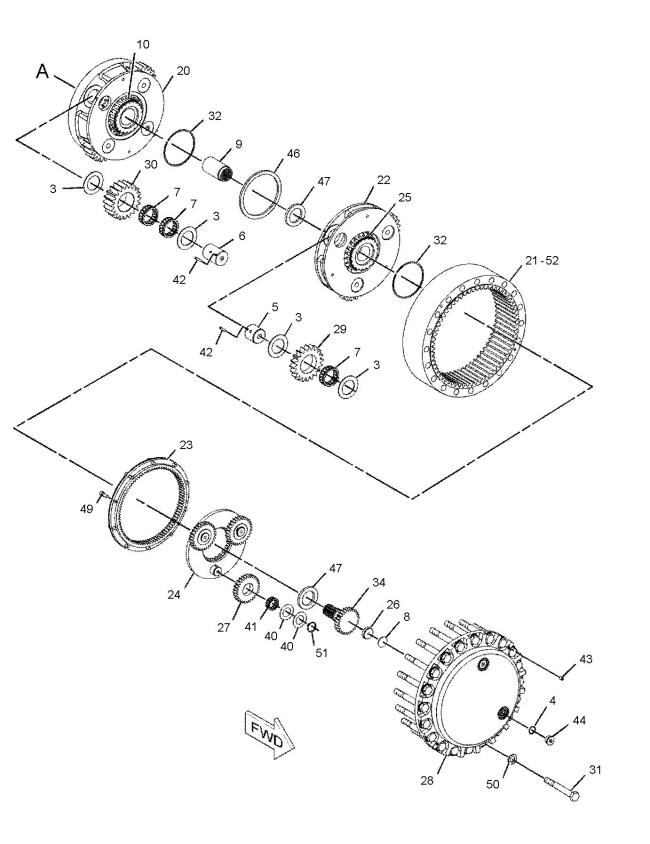

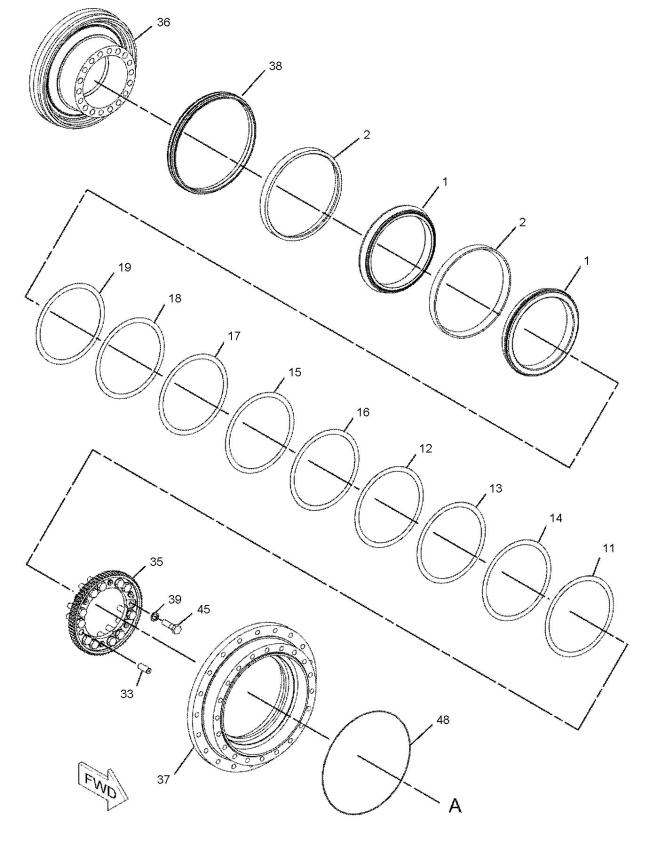

Parts for your 345C EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 2R-0524 | [2] | CONE-BEARING | |
| 2. | 2R-0525 | [2] | CUP-BEARING | |
| 3. | 4I-7576 | [14] | WASHER (66.3X104X3-MM THK) | |
| 4. | 7M-8485 | [2] | SEAL-O-RING | |
| 5. | 7Y-0661 | [3] | SHAFT-PLANETARY | |
| 6. | 7Y-0662 | [4] | SHAFT-PLANETARY | |
| 7. | 199-4583 | [11] | BEARING AS | |
| 8. | 7Y-0808 B | [1] | SHIM (1.6-MM THK) | |
| 9. | 7Y-1469 | [1] | COUPLING | |
| 10. | 7Y-1470 | [1] | GEAR-SUN (21-TEETH) | |
| 11. | 7Y-1472 B | [1] | SHIM (0.15-MM THK) | |
| 12. | 7Y-1473 B | [1] | SHIM (0.3-MM THK) | |
| 13. | 7Y-1474 B | [1] | SHIM (0.4-MM THK) | |
| 14. | 7Y-1475 B | [1] | SHIM (0.5-MM THK) | |
| 15. | 7Y-1476 B | [1] | SHIM (0.6-MM THK) | |
| 16. | 7Y-1477 B | [1] | SHIM (0.7-MM THK) | |
| 17. | 7Y-1478 B | [1] | SHIM (0.8-MM THK) | |
| 18. | 7Y-1479 B | [1] | SHIM (1-MM THK) | |
| 19. | 7Y-1480 B | [1] | SHIM (1.6-MM THK) | |
| 20. | 7Y-1482 | [1] | CARRIER-PLANETARY | |
| 21. | 7Y-1483 | [1] | GEAR-RING (63-TEETH) | |
| 22. | 7Y-1485 | [1] | CARRIER-PLANETARY | |
| 23. | 7Y-1487 | [1] | GEAR-RING (85-TEETH) | |
| 24. | 7Y-1488 | [1] | CARRIER AS | |
| 7Y-0656 | [3] | SHAFT-PLANETARY | ||
| 25. | 7Y-1491 | [1] | GEAR-SUN (21-TEETH) | |
| 26. | 7Y-1493 | [1] | SPACER (8.7X50X14-MM THK) | |
| 27. | 7Y-1495 | [3] | GEAR-PLANETARY (29-TEETH) | |
| 28. | 7Y-1498 | [1] | COVER | |
| 29. | 7Y-1499 | [3] | GEAR-PLANETARY (20-TEETH) | |
| 30. | 7Y-1504 | [4] | GEAR-PLANETARY (20-TEETH) | |
| 31. | 7Y-5235 M | [20] | BOLT (M24X3X190-MM) | |
| 32. | 110-7217 | [2] | RING-RETAINING | |
| 33. | 114-1541 | [6] | PIN-DOWEL | |
| 34. | 169-5559 | [1] | GEAR-SUN (26-TEETH) | |
| 35. | 199-4719 | [1] | GEAR-COUPLING | |
| 36. | 200-3489 | [1] | HOUSING-MOTOR | |
| 37. | 200-3490 | [1] | HOUSING-GEAR | |
| 38. | 205-9025 | [1] | SEAL GP-DUO-CONE | |
| 205-9024 | [2] | RING-TORIC | ||
| 39. | 227-6048 | [12] | WASHER (26X40X4-MM THK) | |
| 40. | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 41. | 199-4582 | [3] | BEARING AS | |
| 42. | 095-0891 | [7] | PIN-SPRING | |
| 43. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 44. | 3E-2338 | [2] | PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) | |
| 45. | 6V-8133 M | [12] | BOLT (M24X3X80-MM) | |
| 46. | 7Y-1484 | [1] | SPACER (191X221X8.5-MM THK) | |
| 47. | 7Y-1492 | [2] | SPACER (67X101.1X10-MM THK) | |
| 48. | 8C-5240 | [1] | SEAL-O-RING | |
| 49. | 8T-3957 M | [10] | BOLT-SOCKET HEAD (M12X1.75X30-MM) | |
| 50. | 8T-4167 | [20] | WASHER-HARD (26X44X4-MM THK) | |
| 51. | 8T-4240 | [3] | RING-RETAINING | |
| 52. | 1U-8846 B | SEALANT-GASKET | ||
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
