HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

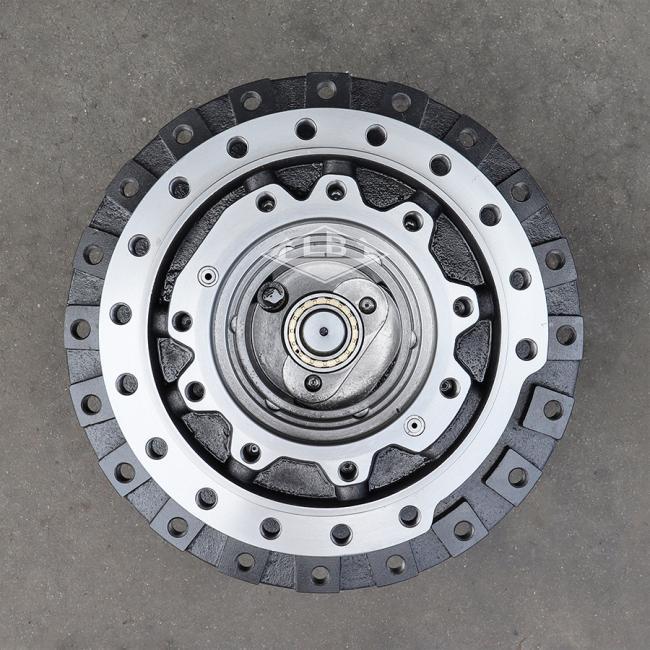

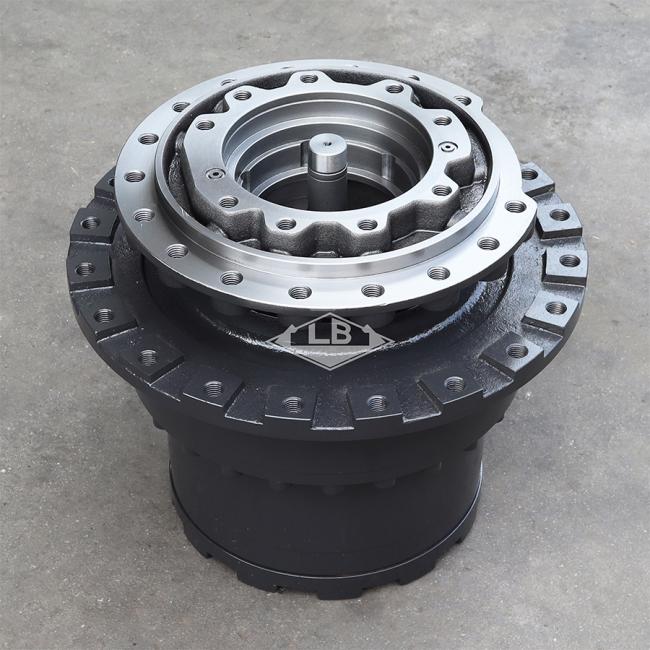

HITACHI ZX240-3 Final drive Travel reduction gearbox 9243839 9256989 ZX240-3 Travel gearbox
PRODUCT PARAMETERS
| Part name | ZX240-3 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9243839 9256989 | |||||
| Frame holes | 16 | |||||
| Sprocket holes | 20 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 248KG | |||||
| MOQ | 1 pc | |||||
Product Description

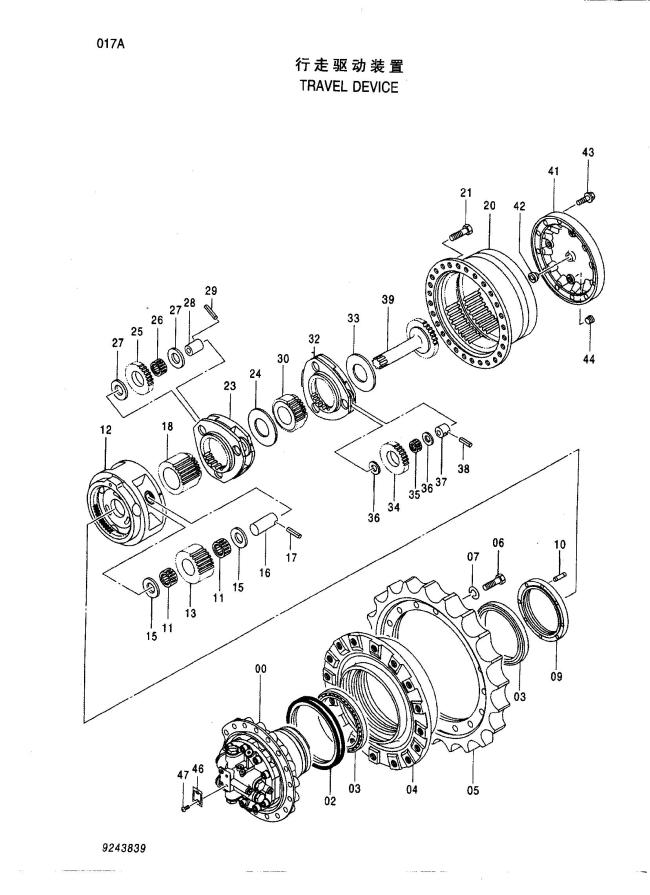

Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9243839 | [1] | TRAVEL DEVICE | I 9256989 <for assembly of machine> | |
| (9256989) | [1] | TRAVEL DEVICE | <for transportation> | |
| 00. | 9242907 | [1] | MOTOR;OIL | I 9257553 <for assembly of machine> |
| 00. | (9257553) | [1] | MOTOR;OIL | <for transportation> |
| 02. | 4634693 | [1] | SEAL;GROUP | |
| 03. | 4246793 | [2] | BRG.;ROL. | |
| 04. | 1032488 | [1] | DRUM | |
| 05. | 1032489 | [1] | SPROCKET | |
| 06. | J932055 | [20] | BOLT | |
| 07. | A590920 | [20] | WASHER;SPRING | |
| 09. | 3086531 | [1] | NUT | |
| 10. | 4436242 | [1] | PIN;KNOCK | |
| 11. | 4628766 | [6] | BRG.;NEEDLE | |
| 12. | 1032487 | [1] | CARRIER | |
| 13. | 3103053 | [3] | GEAR;PLANETARY | |
| 15. | 4624830 | [6] | PLATE;THRUST | |
| 16. | 4139975 | [3] | PIN | |
| 17. | 4116309 | [3] | PIN;SPRING | |
| 18. | 3103054 | [1] | GEAR;SUN | |
| 20. | 1032490 | [1] | GEAR;RING | |
| 21. | J931640 | [28] | BOLT | |
| 23. | 1032486 | [1] | CARRIER | |
| 24. | 4183819 | [1] | SPACER | |
| 25. | 3103052 | [3] | GEAR;PLANETARY | |
| 26. | 4445529 | [3] | BRG.;NEEDLE | |
| 27. | 4210851 | [6] | PLATE;THRUST | |
| 28. | 4309995 | [3] | PIN | |
| 29. | 4246358 | [3] | PIN;SPRING | |
| 30. | 3082149 | [1] | GEAR;SUN | |
| 32. | 1032485 | [1] | CARRIER | |
| 33. | 4401293 | [1] | SPACER | |
| 34. | 3103051 | [3] | GEAR;PLANETARY | |
| 35. | 4406589 | [3] | BRG.;NEEDLE | |
| 36. | 4148080 | [6] | PLATE;THRUST | |
| 37. | 4210853 | [3] | PIN | |
| 38. | 4173093 | [3] | PIN;SPRING | |
| 39. | 2049585 | [1] | SHAFT;PROP. | |
| 41. | 2051690 | [1] | COVER | |
| 42. | 4478346 | [1] | PIN;STOPPER | |
| 43. | 4609016 | [12] | BOLT;SEMS | |
| 44. | 4245797 | [3] | PLUG | |
| 46. | +++++++ | [1] | NAME-PLATE | |
| 47. | M492564 | [2] | SCREW;DRIVE |
