KUA10580 KUA10590 CX800 Travel Gearbox CASE800 CX800 TRAVEL REDUCTION GEAR Final Drive

Name: KUA10580 KUA10590 CX800 Travel Gearbox CASE800 CX800 TRAVEL REDUCTION GEAR Final Drive
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

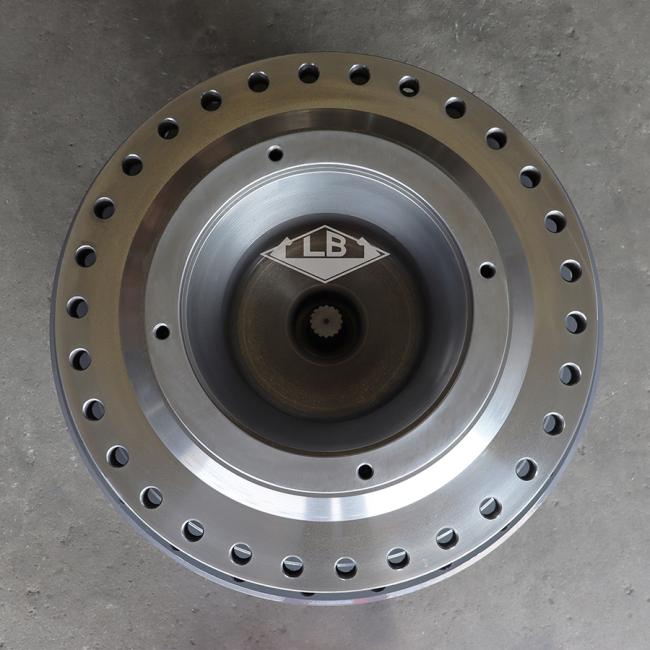

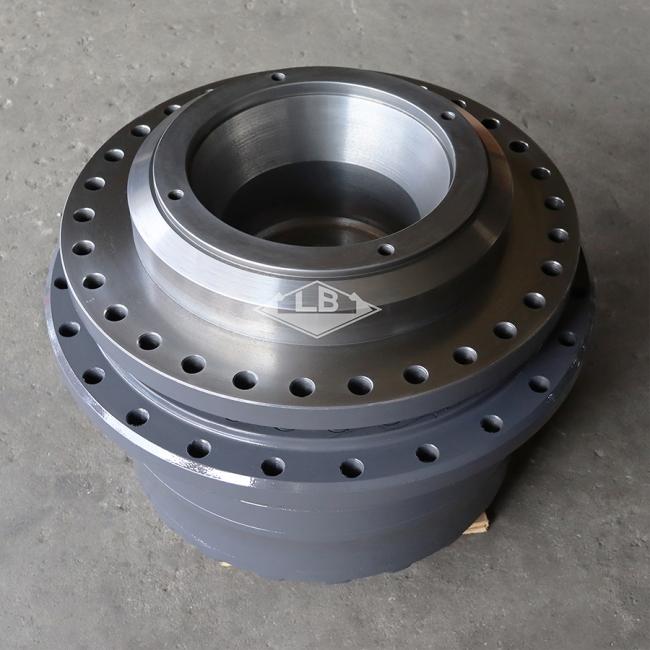

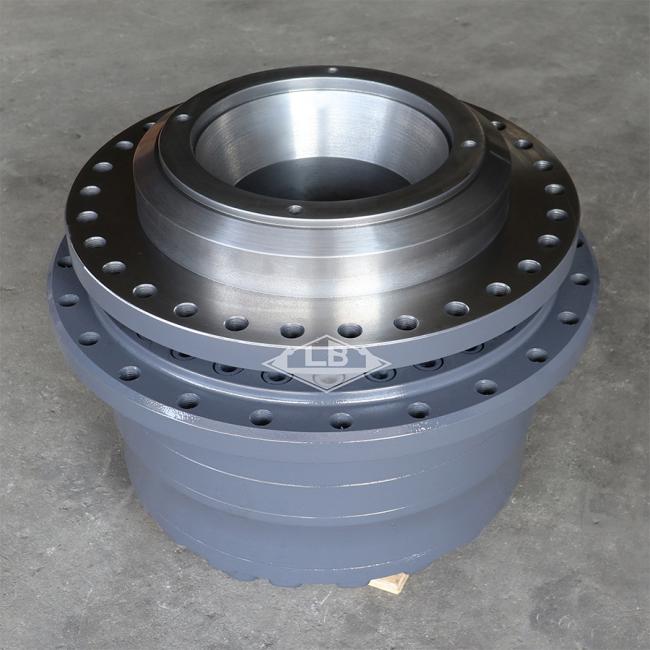

CASE800 CX800 TRAVEL REDUCTION GEAR Final drive without motor KUA10580 KUA10590 CX800 Travel gearbox

PRODUCT PARAMETERS

Part name	CX800 Travel gearbox
Equipment	Apply to CASE EXCAVATOR
Part no.	KUA10580 KUA10590
Frame holes	24
Sprocket holes	30
Item condition	New
Logo	LB
Gross weight	938KG
MOQ	1 pc

Product Description

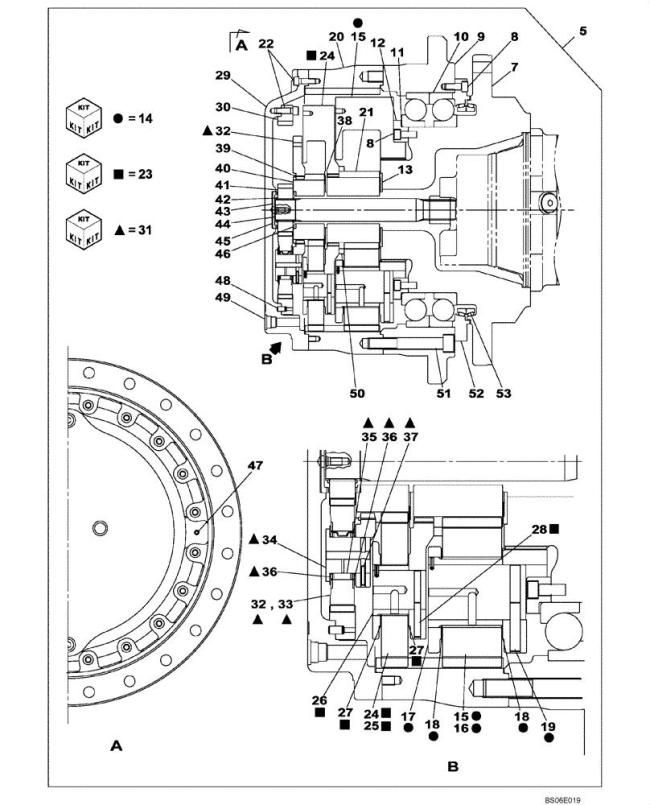

Parts on group (CX800) - CRAWLER EXCAVATOR TIER 3 (NA) (3/06-12/08):

Pos.	Part No	Qty	Parts name	Comments
5.	KUA10580	[1]	REDUCER	SUM Incl. 7 - 53
7.	KUA10550	[1]	HOUSING	SUM
8.	862-14035	[60]	HEX SOC SCREW,M14 x 35mm, Cl 12.9	SUM Superseded by part number: 108R014Y035R
9.	KUA0016	[1]	BEARING HOUSING	SUM
10.	KUA0020	[2]	BEARING, BALL	SUM
11.	KUA0030	[1]	SHIM	SUM
12.	KUA10500	[1]	RETAINER CUP	SUM
13.	163918A1	[1]	PLATE	SUM
14.	KUA10570	[1]	GEAR SET	SUM Incl. 15 - 19
15.	NSS	[1]	NOT SOLD SEPARAT	CON Carrier, Planetary
16.	NSS	[5]	NOT SOLD SEPARAT	CON Gear, Planetary
17.	NSS	[5]	NOT SOLD SEPARAT	CON Pin
18.	KUA0029	[10]	PLATE	SUM
19.	NSS	[5]	NOT SOLD SEPARAT	CON Pin, Spring
20.	KUA10060	[1]	RING GEAR	SUM
21.	KUA10290	[1]	SUN GEAR	SUM
22.	862-12035	[32]	HEX SOC SCREW,M12 x 35mm, Cl 12.9	SUM
23.	KUA10330	[1]	GEAR SET	SUM Incl. 24 - 28
24.	NSS	[1]	NOT SOLD SEPARAT	CON Carrier, Planetary
25.	NSS	[4]	NOT SOLD SEPARAT	CON Gear, Planetary
26.	NSS	[4]	NOT SOLD SEPARAT	CON Pin
27.	163922A1	[8]	PLATE	SUM
28.	NSS	[4]	NOT SOLD SEPARAT	CON Pin, Spring
29.	KUA10190	[1]	COVER	SUM
30.	KUA10050	[1]	RING GEAR	SUM
31.	KUA10320	[1]	GEAR SET	SUM Incl. 32 - 37
33.	NSS	[3]	NOT SOLD SEPARAT	CON Gear, Planetary
34.	NSS	[3]	NOT SOLD SEPARAT	CON Pin
35.	NSS	[3]	NOT SOLD SEPARAT	CON Bearing, Needle
36.	NSS	[6]	NOT SOLD SEPARAT	CON Plate
37.	338W060Z025B	[3]	COTTER PIN	SUM
38.	KUA0026	[1]	PLATE, THRUST	SUM
39.	163924A1	[1]	RING	SUM
40.	KUA10260	[1]	SUN GEAR	SUM
41.	KUA10230	[1]	SUN GEAR	SUM
42.	800-1150	[2]	SNAP RING,M50, Ext	CAS Superseded by part number: 8603209
43.	KUA10510	[1]	THRUST PLATE	SUM
44.	KUA10220	[1]	GEAR SHAFT	SUM
45.	163929A1	[1]	SHIM	SUM
46.	163917A1	[1]	PLATE	SUM
47.	152K012Y025B	[2]	SET SCREW	SUM M12 x 25
48.	151627A1	[4]	PIN	SUM
49.	150829A1	[3]	PLUG	SUM
50.	KUA0027	[1]	PLATE, THRUST	SUM
51.	108R024Y160R	[30]	BOLT	CAS M24 x 160
52.	KUA10490	[1]	RETAINER	SUM
53.	KUA0022	[1]	PACKAGE	SUM
