VOE14599921 EC300 Travel Gear Box VOLVO EC300D EC250D EC250E EC300E Final Drive
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
VOLVO EC300D EC250D EC250E EC300E Final drive without motor VOE14599921 EC300 Travel gearbox
PRODUCT PARAMETERS
| Part name | EC300D EC250D EC250E EC300E Travel gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14599921 | |||||
| Frame holes | 22 | |||||
| Sprocket holes | 22 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 345KG | |||||
| MOQ | 1 pc | |||||
Product Description

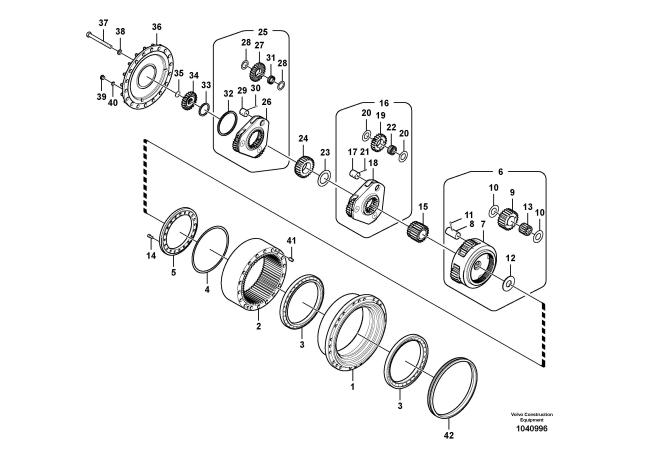

Parts on group Travel gearbox:
Parts on group Travel gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14599921 | [1] | Travel gearbox | ||
| 1. | VOE14599922 | [1] | Housing | |
| 2. | VOE14599932 | [1] | Gear | |
| 3. | SA14599923 | [2] | Bearing | |
| 4. | VOE14599927 | [1] | Shim | THICK = 0,6 MM |
| 4. | VOE14599928 | [1] | Shim | THICK = 0,8 MM |
| 4. | VOE14599929 | [1] | Shim | THICK = 1,0 MM |
| 4. | VOE14599930 | [1] | Shim | THICK = 0,7 MM |
| 4. | VOE14599931 | [1] | Shim | THICK = 0,9 MM |
| 4. | VOE14607977 | [1] | Shim | THICK = 1,1 MM |
| 5. | VOE14599926 | [1] | Retainer | |
| 6. | VOE14599933 | [1] | Planet carrier | |
| 7. | None14599934 | [1] | Carrier | |
| 8. | VOE14566415 | [4] | Pin | |
| 9. | VOE14599935 | [4] | Planetary Gear | |
| 10. | VOE14566414 | [8] | Washer | |
| 11. | SA9325-06012 | [4] | Spring pin | |
| 12. | SA1036-00300 | [1] | Ring | |
| 13. | VOE14566412 | [4] | Needle bearing | |
| 14. | VOE983919 | [16] | Hex. socket screw | |
| 15. | VOE14599938 | [1] | Gear | |
| 16. | VOE14599939 | [0001] | Planet carrier | |
| 17. | VOE14599944 | [3] | Pin | |
| 18. | None14599940 | [1] | Carrier | |
| 19. | VOE14599941 | [3] | Planetary Gear | |
| 20. | VOE14599943 | [6] | Washer | |
| 21. | SA9325-06012 | [3] | Spring pin | |
| 22. | VOE14599942 | [3] | Needle Bearing | |
| 23. | VOE14566433 | [1] | Thrust washer | |
| 24. | VOE14599945 | [1] | Gear | |
| 25. | VOE14599946 | [1] | Planet carrier | |
| 26. | None14599947 | [1] | Carrier | |
| 27. | VOE14599948 | [3] | Planetary Gear | |
| 28. | VOE14599950 | [6] | Washer | |
| 29. | VOE14599951 | [3] | Pin | |
| 30. | VOE951955 | [3] | Spring pin | |
| 31. | VOE14599949 | [3] | Needle Bearing | |
| 32. | VOE14569232 | [1] | Ring | |
| 33. | VOE14566417 | [1] | Ring | |
| 34. | VOE14599952 | [1] | Gear | |
| 35. | VOE9541-01038 | [1] | Snap Ring | |
| 36. | VOE14599953 | [1] | Cover | |
| 37. | VOE982211 | [18] | Hexagon screw | |
| 38. | SA9213-20000 | [18] | Spring washer | |
| 39. | VOE14883847 | [2] | Plug | |
| 40. | VOE990557 | [2] | O-ring | |
| 41. | VOE9324-21617 | [4] | Pin | |
| 42. | VOE14599925 | [1] | Seal |
