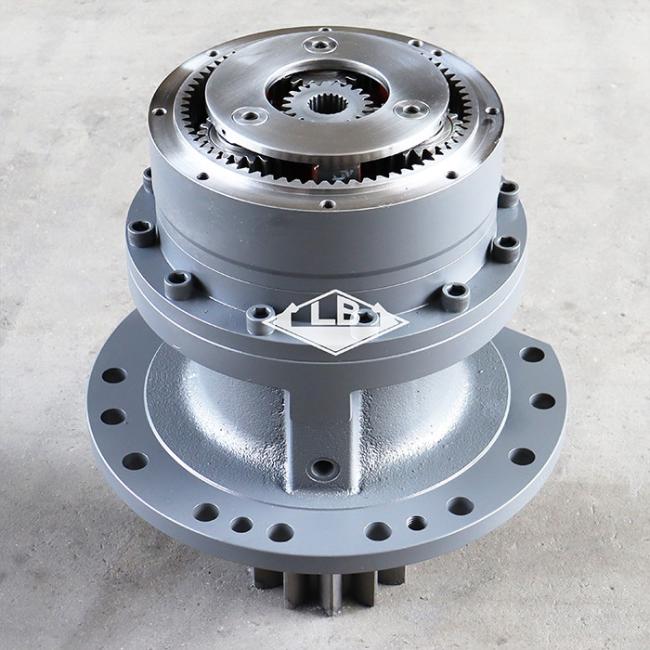

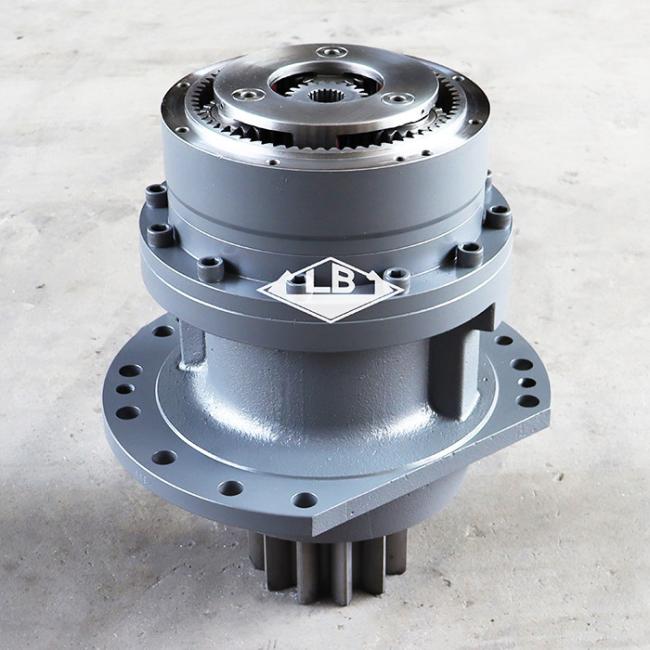

ZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearbox
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS
| Part name | ZX470-5G swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9300512 | |||||

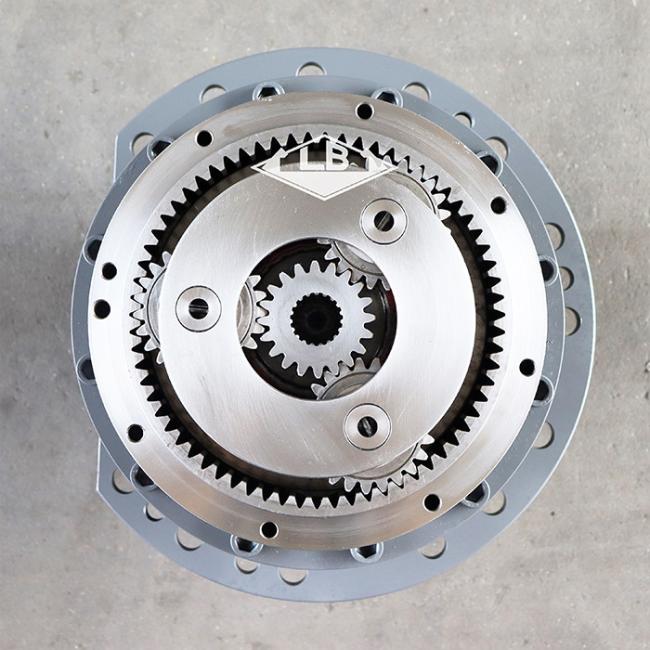

| NO.1 sun gear spline teeth | 19 splines | |||||
| Swing pinion shaft teeth | 12T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 205 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group SWING DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00-46. | 9300512 | [1] | SWING DEVICE | |
| 00-46. | 9300512 | [1] | SWING DEVICE | |
| 00. | 1036082 | [1] | HOUSING | |
| 00. | 1036082 | [1] | HOUSING | |
| 01. | 2043694 | [1] | SHAFT;PROP. | |
| 01. | 2043694 | [1] | SHAFT;PROP. | |
| 04. | 3085412 | [1] | SLEEVE | |
| 04. | 3085412 | [1] | SLEEVE | |
| 05. | A811120 | [1] | O-RING | |
| 05. | A811120 | [1] | O-RING | |
| 06. | 4402481 | [1] | BRG.;ROL. | |
| 06. | 4402481 | [1] | BRG.;ROL. | |
| 09. | 3099830 | [1] | NUT | |
| 09. | 3099830 | [1] | NUT | |
| 10. | 4474191 | [1] | PLATE;LOCK | |
| 10. | 4474191 | [1] | PLATE;LOCK | |
| 11. | J901016 | [2] | BOLT | |
| 11. | J901016 | [2] | BOLT | |
| 12. | 4667150 | [1] | BRG.;ROL. | |
| 12. | 4667150 | [1] | BRG.;ROL. | |
| 13. | 4422691 | [1] | SEAL;OIL | |
| 13. | 4422691 | [1] | SEAL;OIL | |
| 15. | 1034189 | [1] | CARRIER | |
| 15. | 1034189 | [1] | CARRIER | |
| 16. | 4187590 | [1] | PLATE;THRUST | |
| 16. | 4187590 | [1] | PLATE;THRUST | |
| 17. | 3099815 | [3] | GEAR;PLANETARY | |
| 17. | 3099815 | [3] | GEAR;PLANETARY | |
| 18. | 4336929 | [3] | PLATE;THRUST | |
| 18. | 4336929 | [3] | PLATE;THRUST | |
| 20. | 4027427 | [3] | PIN;SPRING | |
| 20. | 4027427 | [3] | PIN;SPRING | |
| 21. | 4713899 | [6] | BRG.;NEEDLE | |
| 21. | 4713899 | [6] | BRG.;NEEDLE | |
| 22. | 3099795 | [1] | GEAR;SUN | |
| 22. | 3099795 | [1] | GEAR;SUN | |
| 23. | 4488904 | [3] | PIN | |
| 23. | 4488904 | [3] | PIN | |
| 26. | 1032548 | [1] | GEAR;RING | |
| 26. | 1032548 | [1] | GEAR;RING | |
| 27. | M341645 | [12] | BOLT;SOCKET | |
| 27. | M341645 | [12] | BOLT;SOCKET | |
| 30. | 1031817 | [1] | CARRIER | |
| 30. | 1031817 | [1] | CARRIER | |
| 32. | 4403371 | [1] | PLATE;THRUST | |
| 32. | 4403371 | [1] | PLATE;THRUST | |
| 33. | 3102045 | [3] | GEAR;PLANETARY | |
| 33. | 3102045 | [3] | GEAR;PLANETARY | |
| 34. | 4404506 | [3] | BRG.;NEEDLE | |
| 34. | 4404506 | [3] | BRG.;NEEDLE | |
| 35. | 4403082 | [3] | PLATE;THRUST | |
| 35. | 4403082 | [3] | PLATE;THRUST | |
| 37. | 4051262 | [3] | PIN;SPRING | |
| 37. | 4051262 | [3] | PIN;SPRING | |
| 39. | 3115868 | [1] | GEAR;SUN | |
| 39. | 3115868 | [1] | GEAR;SUN | |
| 40. | 4336923 | [3] | PIN | |
| 40. | 4336923 | [3] | PIN | |
| 42. | 4194712 | [1] | COCK | |
| 42. | 4194712 | [1] | COCK | |
| 43. | 94-2024 | [1] | PLUG | |
| 43. | 94-2024 | [1] | PLUG | |
| 44. | 4422479 | [4] | MAGNET | |
| 44. | 4422479 | [4] | MAGNET | |
| 45. | M470513 | [4] | SCREW | |
| 45. | M470513 | [4] | SCREW | |
| 46. | 431578 | [2] | CORK | |
| 46. | 431578 | [2] | CORK |
