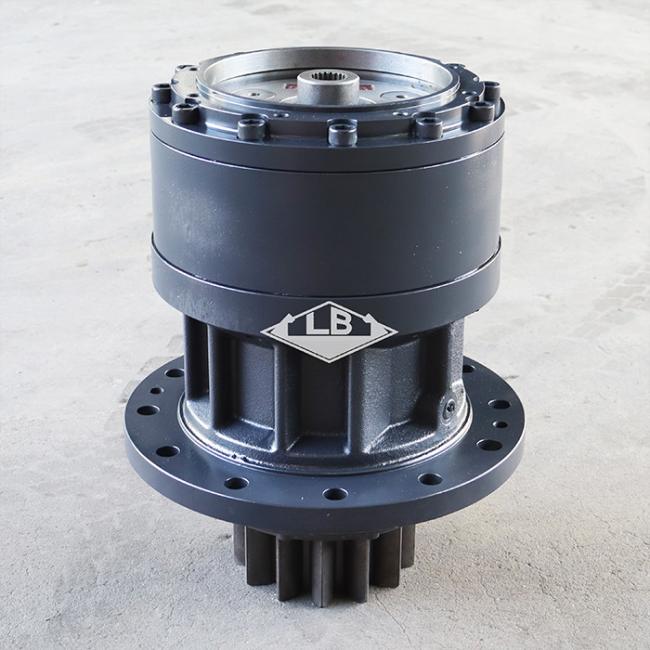

EC210 SWING REDUCER VOE14541069 SA7118-30100 EC210 SWING GEARBOX
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS
| Part name | EC210 swing gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14541069 SA7118-30100 | |||||
| NO.1 sun gear spline teeth | 19 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 200 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group Swing gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14541069 | [1] | Swing gearbox | ||
| 1. | VOE14528929 | [1] | Shaft | |
| 2. | VOE14540405 | [1] | Collar | |
| 3. | VOE14509281 | [1] | Cover | |
| 4. | VOE990596 | [1] | O-ring | |
| 5. | VOE14508911 | [1] | Seal | |
| 6. | VOE993025 | [10] | Hexagon screw | |
| 7. | VOE14640027 | [1] | Roller bearing | |
| 8. | VOE14558674 | [1] | Roller bearing | |
| 9. | SA9541-01090 | [1] | Retaining ring | |
| 10. | VOE950677 | [4] | Pin | |
| 11. | VOE984363 | [12] | Hex. socket screw | |
| 12. | SA7118-30370 | [1] | Plate | |
| 13. | SA7118-30380 | [1] | Thrust ring | |
| 14. | SA7118-30390 | [1] | Gear | |
| 15. | SA7118-30480 | [1] | Washer | |
| 16. | SA7118-30490 | [1] | Sun gear | |
| 17. | VOE14540733 | [1] | Pipe | |
| 18. | VOE14722461 | [1] | Draining valve | |
| 19. | VOE949329 | [1] | Gasket | |
| 20. | SA7118-30200 | [1] | Planet carrier | No.2 |
| 21. | SA7118-30210 | [1] | Planet carrier | |
| 22. | SA7118-30220 | [3] | Planetary gear | |
| 23. | SA7118-30230 | [3] | Pin | |
| 24. | SA7118-30260 | [6] | Washer | |
| 25. | SA9325-08010 | [3] | Spring pin | |
| 26. | VOE14528725 | [1] | Planet carrier | No.1 |
| 27. | SA7118-30410 | [1] | Planet carrier | |
| 28. | SA7118-30420 | [3] | Planetary gear | |
| 29. | VOE14528726 | [3] | Pin | |
| 30. | VOE14550879 | [3] | Needle bearing | |
| 31. | SA7118-30450 | [3] | Washer | |
| 32. | SA7118-30460 | [3] | Washer | |
| 33. | SA9541-01042 | [3] | Retaining ring | |
| 34. | SA9325-08010 | [3] | Spring pin | |
| 35. | SA7118-30350 | [1] | Ring gear | |
| 36. | SA7118-30340 | [1] | Case | |
| 100. | VOE14526214 | [1] | Overhaul kit |
