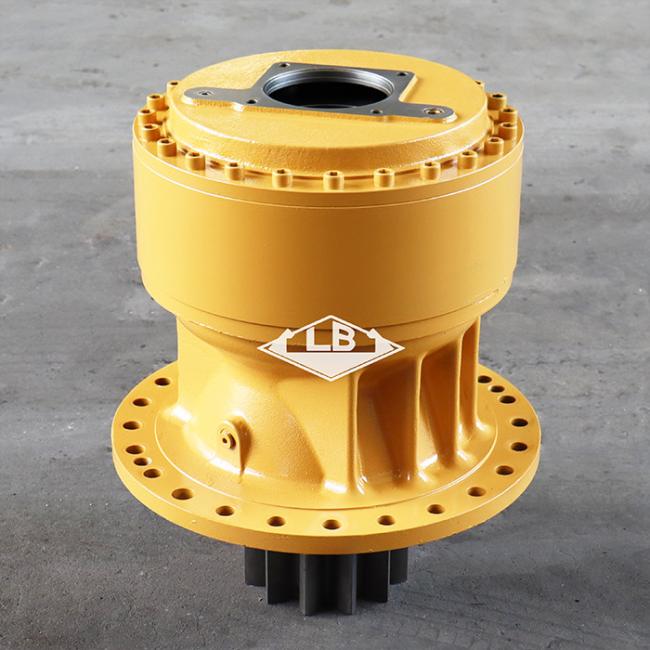

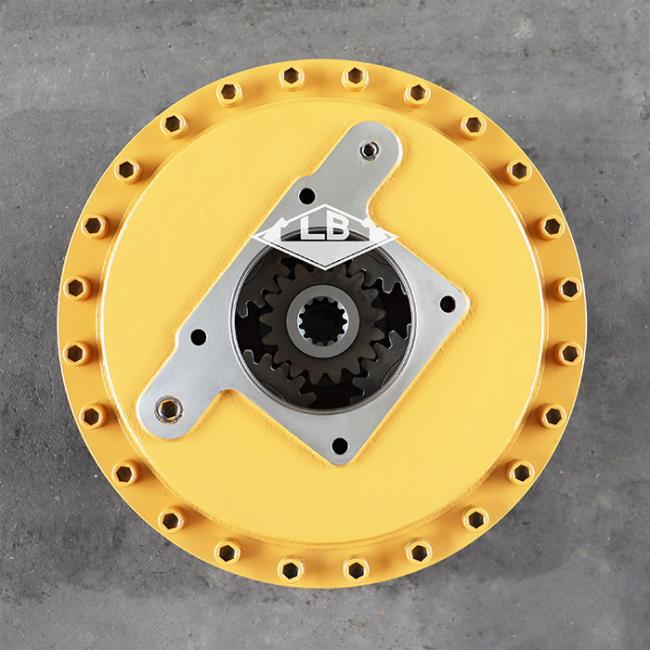

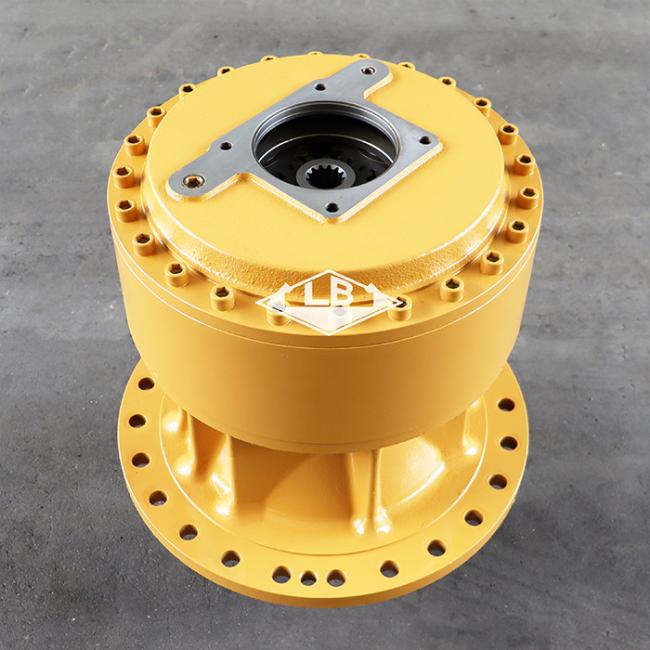

E 336D 330D SWING DRIVE WITHOUT MOTOR 333-2959 199-4539 3332959 1994539 E336D SWING GEARBOX
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS
| Part name | E 336D 330D Swing gearbox | |||||
| Equipmen | Apply to E EXCAVATOR | |||||
| Part no. | 333-2959 199-4539 | |||||
| NO.1 sun gear spline teeth | 13 splines | |||||
| Swing pinion shaft teeth | 12T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 540 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts for your 336D L EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 4H-6112 | [1] | BREATHER (SWING DRIVE) | |
| 2. | 6V-7238 | [1] | VALVE-SHUTOFF (SWING DRIVE) | |
| 3. | 7I-7611 | [1] | CAGE | |
| 4. | 7I-7619 | [1] | BEARING-ROLLER | |
| 5. | 7I-7684 M | [2] | SPACER (50X79.6X6-MM THK) | |
| 6. | 9U-8693 | [1] | BEARING-ROLLER | |
| 7. | 093-1730 | [1] | RING-RETAINING | |
| 8. | 094-1528 | [8] | WASHER (53X84X1-MM THK) | |
| 9. | 096-1441 | [1] | RING-RETAINING | |
| 10. | 110-7149 | [1] | RING-RETAINING | |
| 11. | 114-1322 | [1] | RING-RETAINING | |
| 12. | 114-1398 | [1] | GAUGE-OIL LEVEL (SWING DRIVE) | |
| 13. | 114-1399 | [1] | PIPE-GAUGE | |
| 14. | 127-3872 I | [1] | HOSE AS | |
| 15. | 136-2802 | [2] | CONNECTOR | |
| 16. | 136-2803 | [2] | CLIP | |
| 17. | 148-4600 | [1] | GEAR-SUN (17-TEETH) | |
| 18. | 148-4601 | [1] | GEAR-SUN (17-TEETH) | |
| 19. | 148-4602 | [4] | GEAR-PLANETARY (24-TEETH) | |
| 20. | 148-4603 | [4] | GEAR-PLANETARY (24-TEETH) | |
| 21. | 148-4604 | [1] | GEAR-RING (67-TEETH) | |
| 22. | 148-4605 | [1] | SHAFT-PINION | |
| 23. | 418-6218 | [1] | CARRIER-PLANETARY | |
| 24. | 148-4608 | [4] | SHAFT-PLANETARY | |
| 25. | 148-4609 | [4] | SHAFT-PLANETARY | |
| 26. | 148-4611 | [8] | WASHER (71.3X112X1-MM THK) | |
| 27. | 171-9413 | [1] | SPACER (140.5X160X103.2-MM THK) | |
| 28. | 191-2511 | [1] | CARRIER-PLANETARY | |
| 29. | 191-2513 | [4] | BEARING AS-ROLLER | |
| 30. | 191-2514 | [8] | BEARING AS | |
| 31. | 191-2524 | [1] | HOUSING | |
| 32. | 199-4540 | [1] | COVER-HOUSING | |
| 33. | 227-6215 | [1] | BOSS (1/4-18-THD) | |
| 34. | 099-5194 | [8] | PIN-SPRING | |
| 35. | 128-9170 | [2] | SEAL-LIP TYPE | |
| 36. | 3K-0360 | [1] | SEAL-O-RING | |
| 37. | 5M-4454 | [1] | SEAL-O-RING | |
| 38. | 453-3447 M | [10] | BOLT (M12X1.75X40-MM) | |
| 39. | 451-2182 | [12] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 40. | 8T-4244 M | [1] | NUT (M12X1.75-THD) | |
| 41. | 8T-4956 M | [1] | BOLT (M12X1.75X35-MM) | |
| 42. | 453-4169 M | [24] | BOLT (M16X2X200-MM) | |
| 43. | 451-2175 | [24] | WASHER-HARD (17.5X30X3.5-MM THK) |
