China SK200-3 SWING REDUCER 24100J11091F2 24100J11091F3 SK200-3 SWING GEARBOX for sale

SK200-3 SWING REDUCER 24100J11091F2 24100J11091F3 SK200-3 SWING GEARBOX

Name: SK200-3 SWING REDUCER 24100J11091F2 24100J11091F3 SK200-3 SWING GEARBOX
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

PRODUCT PARAMETERS

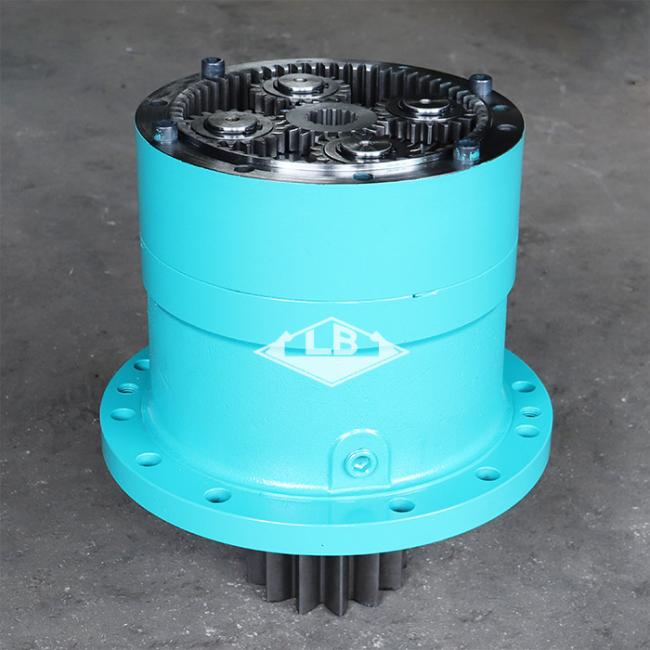

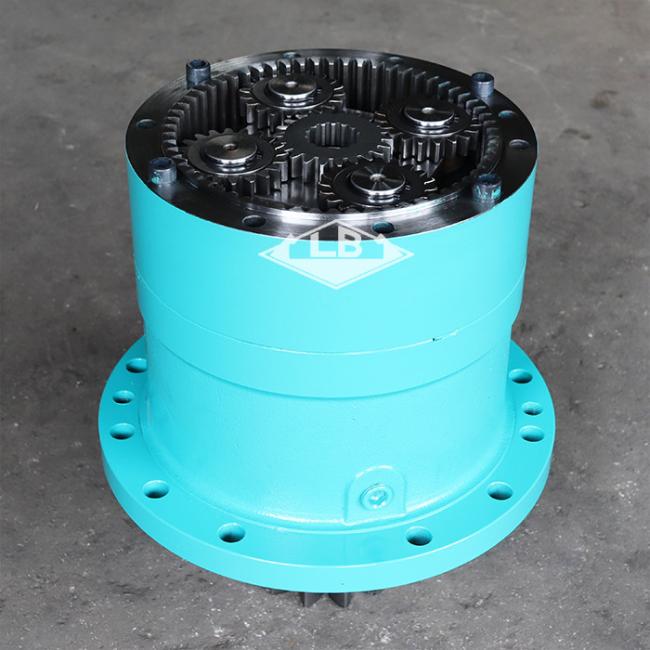

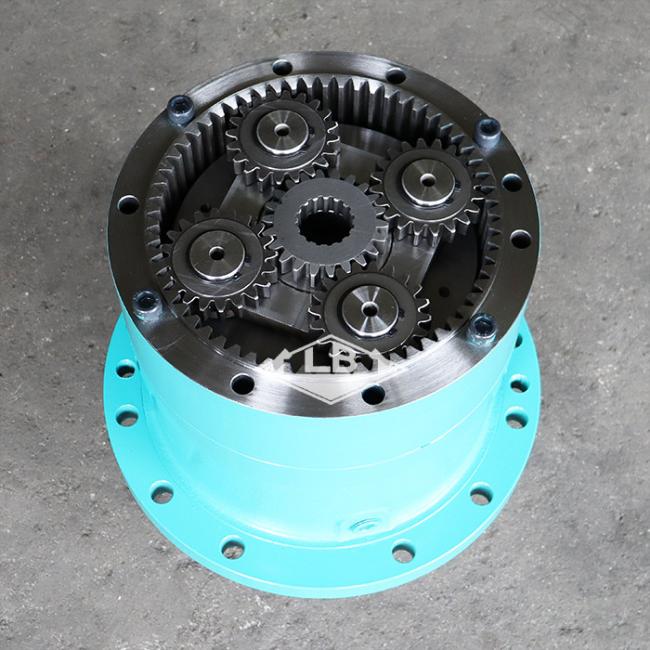

Part name	SK200-3 swing gearbox
Equipment	Apply to Kobelco EXCAVATOR
Part no.	24100J11091F2 24100J11091F3
NO.1 sun gear spline teeth	16 splines
Swing pinion shaft teeth	13T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Descriptio

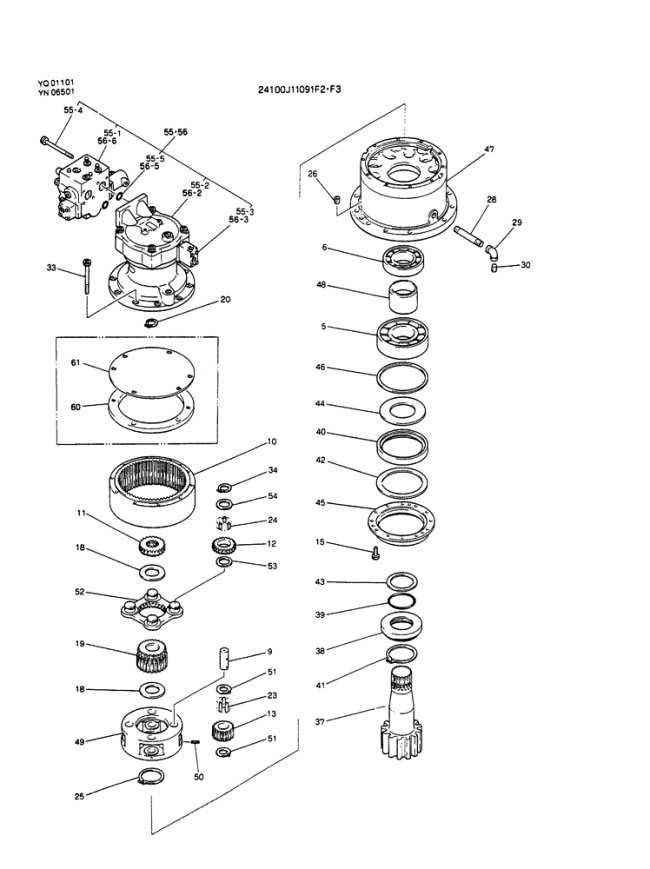

Parts on group (SK200) - MARK III EXCAVATOR SN YN07922 (1/91-12/99):

Pos.	Part No	Qty	Parts name	Comments
. .	24100J11091F2	[1]	HYDRAULIC MOTOR	KOB SWING YQ01101, Serial Range: -YQ01458 Superseded by part number: 24100J11091F10
5.	R25P0047D8	[1]	BEARING	KOB ROLLER
. .	24100J11091F3	[1]	MOTOR ASSY, SWING, Start Serial: YQ01458-	MOTOR ASSY, SWING, Start Serial: YQ01458-
6.	25Z494D11	[1]	BEARING	KOB
9.	2410T340	[4]	ROLLER SHAFT	KOB
10.	2401N468	[1]	RING GEAR	KOB
11.	2401P1276	[1]	SUN GEAR	KOB
12.	2401P1277	[4]	PINION	KOB
13.	2401P1279	[4]	KIT	KOB RY Superseded by part number: 24001T71F2
15.	ZS23C08030	[12]	SCREW,Hex Socket Head, M8 x 30mm	KOB M08x1.25x30mm Superseded by part number: ZS28C08030
18.	2418P20198D3	[2]	SPACER	KOB (4.0)
19.	2401P1278	[1]	SUN GEAR	KOB Superseded by part number: 2401P1434
20.	ZR16X04500	[1]	RING	KOB Retaining -- ID 45 x OD 58 x Th 1.8mm
23.	2425T383	[76]	PLUG WRENCH	PLUG WRENCH
24.	2425T384	[140]	NEEDLE BEARING	KOB
25.	ZR16X08500	[1]	LOCKING RING	KOB
26.	ZS83C20020	[2]	SCREW	KOB Set -- M20x2.50x20mm
28.	2420T6698D3	[1]	RIGID TUBE	KOB
29.	ZG31U12000	[1]	ELBOW	KOB 90°
30.	ZE82T12000	[1]	PLUG	KOB 3/4" PT
33.	ZS23C14140	[10]	SCREW,Hex Socket Head, M14 x 140mm	KOB M14x2.0x140mm
34.	ZR16X04000	[4]	RING	KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
37.	2410N519	[1]	FINGER ASSY.	KOB
38.	2418P22798	[1]	SLEEVE, Serial Range: YN06501--YN06503
39.	ZD11P09500	[1]	O-RING	KOB ID 94.6 ± 0.81 x OD 105mm
40.	2418R259	[1]	OIL SEAL	KOB
. .	2418P23538	[1]	HOSE	KOB , Start Serial: YQ01101-
41.	2418R2D60	[1]	SNAP RING	KOB SNAP
43.	2418T20987	[1]	PLATE	KOB
42.	2418T20985	[1]	PLATE YN06501-, Serial Range: -YN06503
44.	2418T20986	[1]	PLATE	KOB
45.	2418P22799	[1]	RETAINER	KOB
42.	2418T21667	[1]	PLATE	KOB , Start Serial: YQ01101-
46.	2418T20988	[1]	SPACER	KOB (4.0)
47.	2414J2298	[1]	HOUSING	KOB
48.	2418T20989	[1]	SPACER	KOB
49.	2413J381	[1]	DIFF. SPIDER	KOB
50.	ZP26D08025	[4]	PIN	KOB Roll -- OD 08 x 25mm Long
51.	2418T20963	[8]	THRUST WASHER	KOB Superseded by part number: 2418T25314
52.	2413N462F1	[1]	SPIDER	KOB
53.	2418T20962	[4]	THRUST WASHER	KOB
54.	2418T19775D3	[4]	THRUST WASHER	KOB
55-1.	2436U1431F2	[1]	VALVE, CONTROL	VALVE, CONTROL
55.	2441U819F1	[1]	MOTOR SWING, Serial Range: YQ01101-YQ01458	MOTOR SWING, Serial Range: YQ01101-YQ01458
55-2.	2441U804F1	[1]	HYDRAULIC MOTOR	KOB
55-3.	2436U1283F1	[1]	VALVE PRESSURE RELIE	KOB
55-4.	2420T4473D1	[6]	SCREW	KOB BOLT
55-5.	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOB ID 34.40 ± 0.33 x OD 40mm
56.	2441U819F2	[1]	HYDRAULIC MOTOR	KOB MOTOR, SWING, Start Serial: YQ01458- Superseded by part number: 2441U819F3
56-2.	2441U804F1	[1]	HYDRAULIC MOTOR	KOB
56-3.	2436U1283F1	[1]	VALVE PRESSURE RELIE	KOB
56-6.	2436U1431F4	[1]	CONTROL VALVE	KOB VALVE, CONTROL Superseded by part number: 2436U1431F6
. .	24100J13639F1	[1]	HYDRAULIC MOTOR	KOB CONSISTS OF REF 5,6,9 TO 13,15,18,19 TO 23,26,30,33,34,37 TO 54 Superseded by part number: 24100J13639F4
. .	24025T2F1	[19]	KIT SERVICE CONSISTS OF REF NO 23
. .	24025T2F2	[35]	SERVICE KIT	KOB KIT SERVICE CONSISTS OF REF NO 24
60.	2418T23087	[1]	SPACER
61.	2418T5028	[1]	PLATE COVER	PLATE COVER
