China Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX for sale

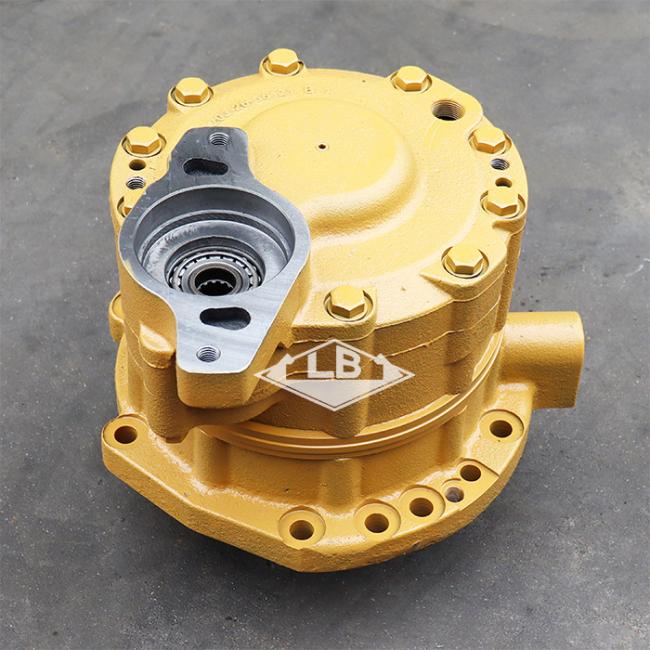

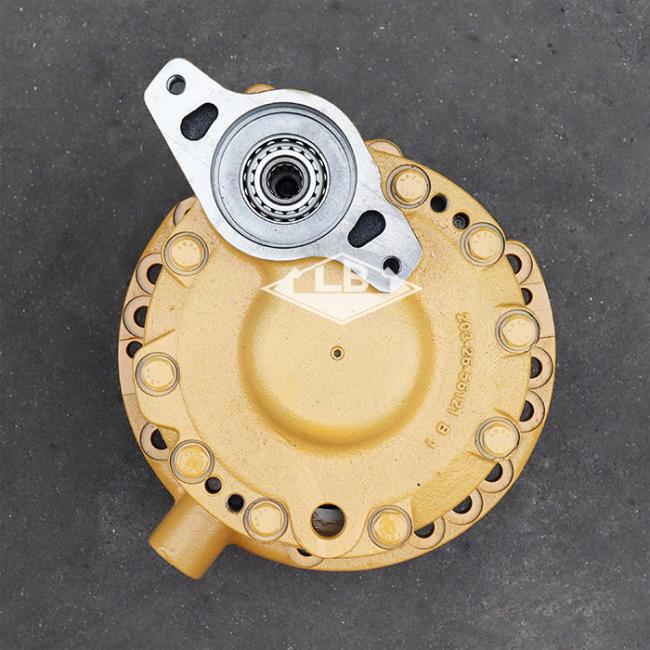

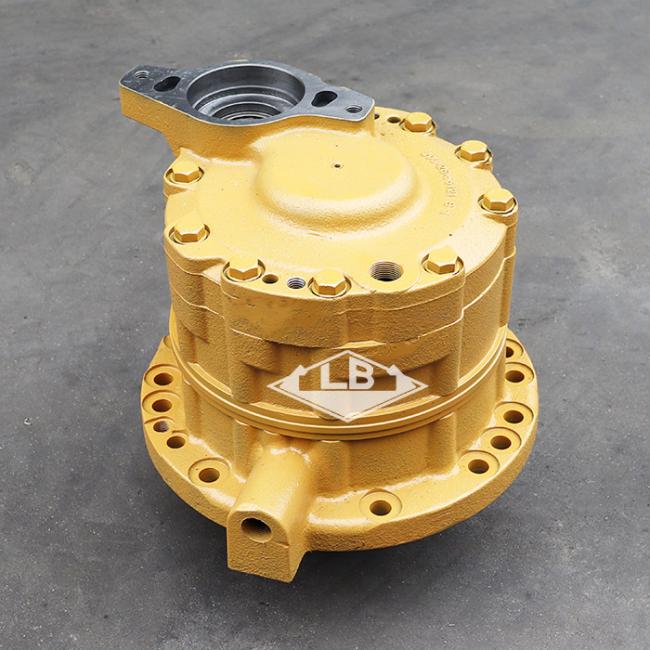

Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX

Name: Komatsu PC100-5 PC120-5 SWING MACHINERY 203-26-00112 2032600112 PC120-5 SWING GEARBOX
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

PRODUCT PARAMETERS

Part name	PC100-5 PC120-5 Swing gearbox
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	203-26-00112
NO.1 sun gear spline teeth	13 splines
Swing pinion shaft teeth	12T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

Pos.	Part No	Qty	Parts name	Comments
	203-26-00112	[1]	SWING MACHINERY A. Komatsu China
			["SN: 36601-UP"] \|$0.
1.	203-26-56130	[1]	CASE Komatsu China
			["SN: 36601-UP"]
2.	07323-30600	[1]	ELBOW Komatsu	0.15 kg.
			["SN: 36601-UP"]
3.	07042-30617	[1]	PLUG Komatsu China
			["SN: 36601-UP"]
4.	07049-01620	[2]	PLUG Komatsu	0.002 kg.
			["SN: 36601-UP"]
5.	06030-22316	[1]	BEARING Komatsu China	6.26 kg.
			["SN: 36601-UP"]
6.	04071-00170	[1]	RING,SNAP Komatsu	0.2 kg.
			["SN: 36601-UP"]
7.	203-26-51142	[1]	CARRIER Komatsu China
			["SN: 36601-UP"]
8.	07043-00415	[1]	PLUG Komatsu	0.03 kg.
			["SN: 36601-UP"]
9.	203-26-51521	[3]	GEAR Komatsu	0.9 kg.
			["SN: 36601-UP"]
10.	203-26-41240	[3]	BEARING Komatsu	0.175 kg.
			["SN: 36601-UP"]
11.	203-26-41250	[6]	WASHER,THRUST Komatsu	0.041 kg.
			["SN: 36601-UP"]
12.	203-26-51331	[3]	PIN Komatsu China
			["SN: 36601-UP"]
13.	04260-00635	[3]	BALL Komatsu	0.012 kg.
			["SN: 36601-UP"] analogs:["805750022", "YM24190080001", "21D0986810"]
14.	07012-00100	[1]	SEAL,OIL Komatsu China	0.096 kg.
			["SN: 36601-UP"]
15.	203-26-41191	[1]	GEAR Komatsu	4.81 kg.
			["SN: 36601-UP"]
16.	07000-05065	[1]	O-RING Komatsu China	0.01 kg.
			["SN: 36601-UP"]
17.	20G-26-11250	[1]	HOLDER Komatsu China
			["SN: 36601-UP"]
18.	01011-52015	[1]	BOLT Komatsu	0.346 kg.
			["SN: 36601-UP"] analogs:["0101183015", "0101182015", "0101162015", "0104142015", "0101163015"]
19.	203-26-41350	[1]	RING,SNAP Komatsu China
			["SN: 36601-UP"]
20.	06033-00217	[1]	BEARING Komatsu China
			["SN: 36601-UP"]
21.	203-26-56150	[1]	GEAR Komatsu	5.31 kg.
			["SN: 36601-UP"]
22.	04020-01228	[1]	PIN,DOWEL Komatsu	0.026 kg.
			["SN: 36601-UP"] analogs:["21T3016190"]
23.	203-26-56140	[1]	CASE Komatsu China
			["SN: 36601-UP"]
25.	07043-00312	[1]	PLUG Komatsu	0.015 kg.
			["SN: 36601-UP"] analogs:["YMR000378", "YM23871030000"]
26.	01011-51430	[1]	BOLT Komatsu China
			["SN: 36601-UP"] analogs:["0101131430", "0101161430", "0101181430", "6112216580", "7015061241"]
27.	01643-31445	[1]	WASHER Komatsu	0.019 kg.
			["SN: 36601-UP"] analogs:["0164301432"]
28.	06040-06007	[1]	BEARING Komatsu	0.168 kg.
			["SN: 36601-UP"]
29.	203-26-51553	[1]	GEAR Komatsu	7.6 kg.
			["SN: 36601-UP"]
30.	06030-06209	[1]	BEARING Komatsu China	0.43 kg.
			["SN: 36601-UP"]
31.	203-26-56110	[1]	GEAR Komatsu	0.4 kg.
			["SN: 36601-UP"]
32.	06002-30207	[2]	BEARING Komatsu	0.35 kg.
			["SN: 36601-UP"]
33.	203-26-56121	[1]	COVER Komatsu China
			["SN: 36601-UP"]
34.	07042-30108	[1]	PLUG Komatsu	0.008 kg.
			["SN: 36601-UP"] analogs:["0704220108"]
35.	07049-01822	[4]	PLUG Komatsu	0.002 kg.
			["SN: 36601-UP"]
36.	01010-51265	[1]	BOLT Komatsu	0.074 kg.
			["SN: 36601-UP"] analogs:["0101081265"]
37.	01643-31232	[1]	WASHER Komatsu	0.027 kg.
			["SN: 36601-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
38.	01011-51465	[9]	BOLT Komatsu	0.22 kg.
			["SN: 36601-UP"] analogs:["0101161465", "0101181465"]
40.	203-26-56160	[1]	FILLER Komatsu China
			["SN: 36601-UP"]
41.	20X-26-21322	[1]	GAUGE Komatsu	0.09 kg.
			["SN: 36601-UP"]
42.	04020-01638	[2]	PIN,DOWEL Komatsu	0.064 kg.
			["SN: 36601-UP"]
43.	01010-51655	[12]	BOLT Komatsu	0.119 kg.
			["SN: 36601-UP"] analogs:["0101061655", "801015613", "0101031655", "0101081655"]
44.	01643-31645	[12]	WASHER Komatsu	0.072 kg.
			["SN: 36601-UP"] analogs:["802170005", "0164301645"]
