China SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox for sale

SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox

Name: SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

PRODUCT PARAMETERS

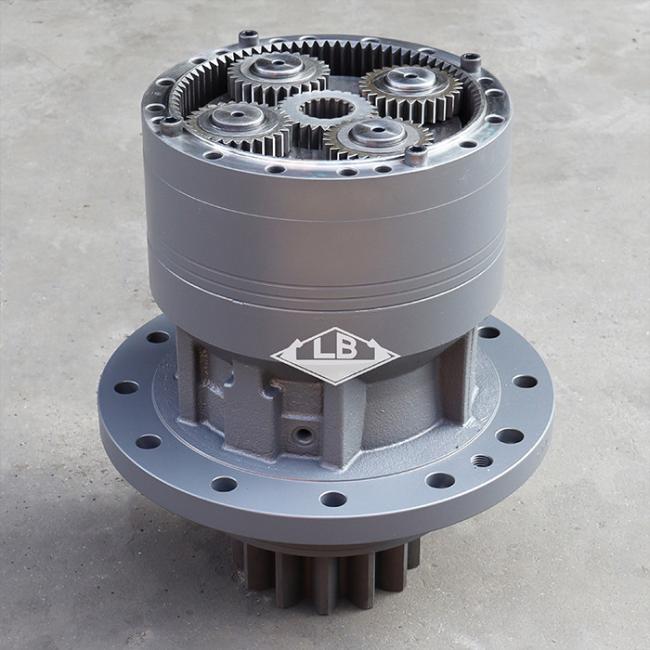

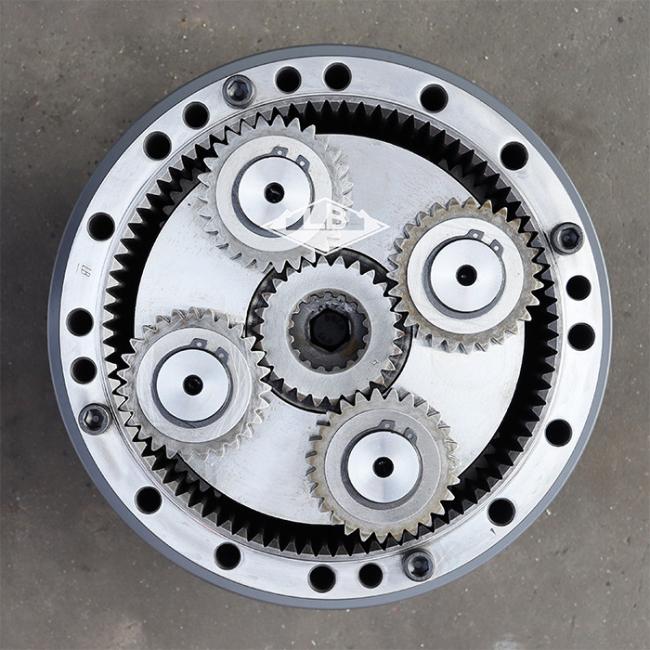

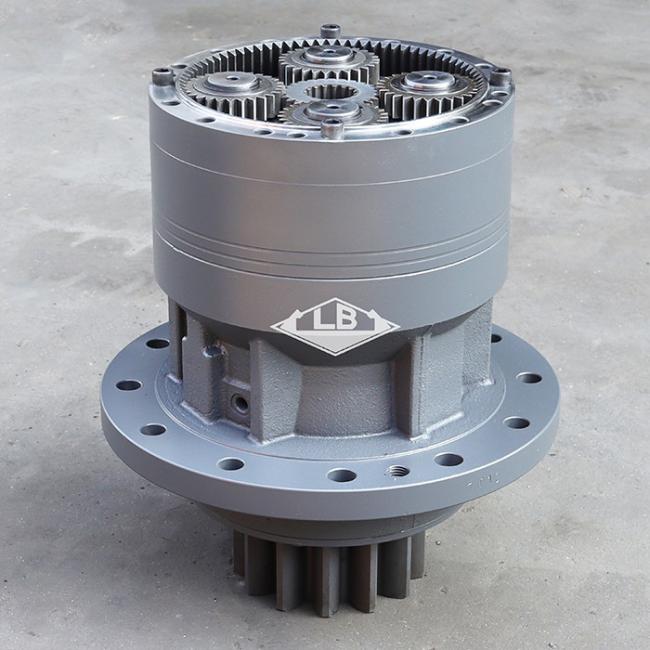

Part name	SOLAR225 DX225 DH225 Swing gearbox
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	K1004160A 130426-00004 K1038203 404-00097C
NO.1 sun gear spline teeth	16 splines
Swing pinion shaft teeth	13T
Item condition	New
Logo	LB
Gross weight	180 KG
MOQ	1 pc

Product Description

Pos.	Part No	Qty	Parts name
-.	404-00097C	[1]	REDUCTION GEAR ASS'Y
1.	K1001235	[1]	CASING
10.	230-00061	[1]	CARRIER NO.2
11.	2114-1901A	[4]	WASHER;THRUST NO.2
12.	104-00050	[4]	GEAR;PLANET NO.2
13.	110-00219	[4]	BUSH NO.2
14.	123-00437A	[4]	PIN NO.2
15.	S5741341	[4]	PIN;SPRING
16.	S0121061	[1]	BOLT
17.	114-00548	[1]	WASHER;THRUST NO.3
18.	104-00048	[1]	GEAR;SUN NO.2
19.	2705-1030	[4]	PIN;KNOCK
2.	2112-1248E	[1]	SHAFT;DRIVE
20.	230-00060A	[1]	CARRIER NO.1
21.	114-00527	[3]	WASHER;THRUST NO.1
22.	104-00049A	[3]	GEAR;PLANET NO.1
23.	123-00435A	[3]	PIN ASS'Y NO.1
24.	S2217471	[16]	BOLT;SOCKET
25.	104-00047A	[1]	GEAR;SUN NO.1
26.	S6500450	[1]	RING;SNAP
27.	2181-1116D2	[2]	PLUG
28.	2181-1116D4	[1]	PLUG
29.	2140-1406	[1]	PIPE;LEVEL GAUGE
3.	2412-1040	[1]	PLATE
30.	2119-1065	[1]	GAUGE;LEVEL
31.	S5231090	[1]	WASHER;DOUBLE TAP
32.	140-01374A	[4]	PIPE
33.	120-00144	[8]	BOLT
4.	2109-9033	[1]	BEARING;ROLLER
5.	2891-1421B	[1]	PLATE;COVER
6.	S6500380	[3]	RING;SNAP
7.	2180-1254	[1]	SEAL;OIL
8.	109-00174	[1]	BEARING;ROLLER
9.	104-00051A	[1]	GEAR;RING
