SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 swing gearbox for excavator

Name: SK60-3 SK60 - MARK III SWING ASSY 24100J11943F2 24100J11943F1 SK60-3 swing gearbox for excavator
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

PRODUCT PARAMETERS

Part name	SK60-3 swing gearbox
Equipment	Apply to Kobelco EXCAVATOR
Part no.	24100J11943F2 24100J11943F1
NO.1 sun gear spline teeth	16 splines
Swing pinion shaft teeth	10T
Item condition	New
Logo	LB
Gross weight	60 KG
MOQ	1 pc

Product Descriptio

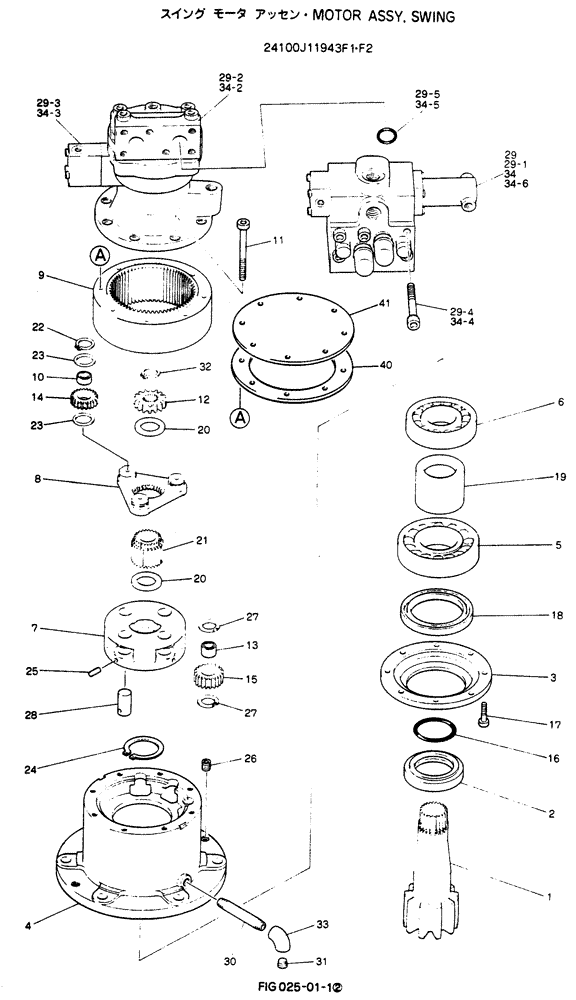

Pos.	Part No	Qty	Parts name	Comments
. .	24100J11943F1	[1]	HYDRAULIC MOTOR	KOB Superseded by part number: 24100J11943F2
. .	24100J11943F2	[1]	MOTOR	KOB SWING
1.	2401N559	[1]	FINGER ASSY.	KOB
3.	2418N1914	[1]	RETAINER	KOB
2.	2418T8471	[1]	SLEEVE	KOB
4.	2414J1304	[1]	HOUSING	KOB
5.	R25P0046D1	[1]	ROLLER BEARING	KOB
6.	25Z627D9	[1]	BEARING	KOB
7.	2413N460	[1]	DIFF. SPIDER	KOB
8.	2413N459F1	[1]	SPIDER	KOB
9.	2401N476	[1]	RING GEAR	KOB
10.	2425Z543	[3]	NEEDLE BEARING	KOB
11.	ZS23C10110	[8]	SCREW,Hex Socket Head, M10 x 110mm	KOB M10x1.50x110mm
12.	2401P1319	[1]	SUN GEAR	KOB
13.	2425Z544	[4]	NEEDLE BEARING	KOB
14.	2401P1320	[3]	PINION	KOB
15.	2401P1322	[4]	PINION	KOB
16.	ZD11G07000	[1]	O-RING,69.40mm ID x 75.60mm OD x 3.10mm	KOB ID 69.40 ± 0.61 x OD 75mm
17.	ZS23C08025	[8]	SCREW,Hex Socket Head, M8 x 25mm	KOB M08x1.25x25mm
18.	ZD21T10500	[1]	OIL SEAL	KOB Superseded by part number: 2418R7D6
19.	2418T8472	[1]	SPACER	KOB
20.	2418T8473	[2]	SPACER	KOB
21.	2401P1321	[1]	SUN GEAR	KOB
22.	2418T20860	[3]	LOCKING RING	KOB
23.	2418T20857	[6]	THRUST WASHER	KOB
24.	ZR16X05500	[1]	RING	KOB
25.	ZP26D08016	[4]	ROLL PIN	KOB
26.	ZS83C16018	[2]	SCREW	KOB M16x2.0x18mm
27.	2418T20856	[8]	THRUST WASHER	KOB
28.	2410T359	[4]	SHAFT	KOB
29.	2441U834F1	[1]	MOTOR ASSY, SWING MOTOR, APPLICABLE: LE14101-15264, Remarks: (34)	MOTOR ASSY, SWING MOTOR, APPLICABLE: LE14101-15264, Remarks: (34)
29-1.	2436U1431F1	[1]	CONTROL VALVE	KOB VALVE, CONTROL, Remarks: SEE(C.P.M) Superseded by part number: 2436U1431F5
29-2.	2441U814F1	[1]	HYDRAULIC MOTOR	KOB MOTOR, Remarks: SEE(C.P.M)
29-3.	2436U1283F1	[1]	VALVE PRESSURE RELIE	KOB REDUCTION VALVE, Remarks: SEE(C.P.M)
29-4.	ZS23C12135	[6]	SCREW,Hex Socket Head, M12 x 135mm	KOB M12x1.75x135mm
29-5.	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOB ID 34.40 ± 0.33 x OD 40mm
30.	2420T6698D6	[1]	PIPE	KOB
31.	ZE82T12000	[1]	PLUG	KOB 3/4" PT
32.	ZR16X03000	[1]	SNAP RING	KOB
33.	ZG31U12000	[1]	ELBOW	KOB
34.	2441U834F2	[1]	MOTOR, APPLICABLE: LE15265-
34-2.	2441U814F1	[1]	HYDRAULIC MOTOR	KOB SEE(C.P.M)
34-3.	2436U1283F1	[1]	VALVE PRESSURE RELIE	KOB SEE(C.P.M)
34-4.	ZS23C12135	[6]	SCREW,Hex Socket Head, M12 x 135mm	KOB M12x1.75x135mm
34-5.	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOB ID 34.40 ± 0.33 x OD 40mm
34-6.	2436U1431F2	[1]	VALVE, CONTROL SEE(C.P.M)	VALVE, CONTROL SEE(C.P.M)
. .	24010P3F16	[1]	KIT, SHAFT CONSISTS OF ITEM 28	KIT, SHAFT CONSISTS OF ITEM 28
. .	24100J14170F1	[1]	HYDRAULIC MOTOR	KOB CONSISTS OF ITEM 1~28, 31, 40, & 41
40.	2418T23617	[1]	SPACER
41.	2414T5113	[1]	COVER
