KTC0185 KTC10240 KTC10150 Swing Gearbox SH460 CX460 Swing Reducer

Name: KTC0185 KTC10240 KTC10150 Swing Gearbox SH460 CX460 Swing Reducer
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

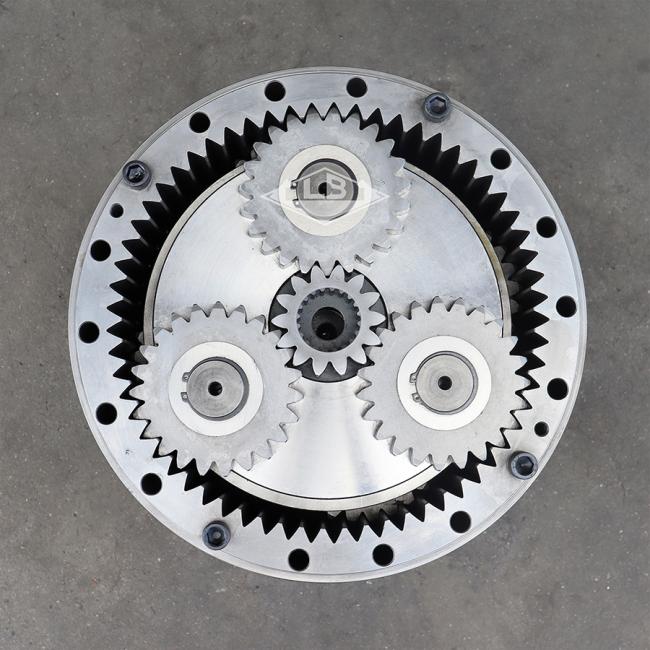

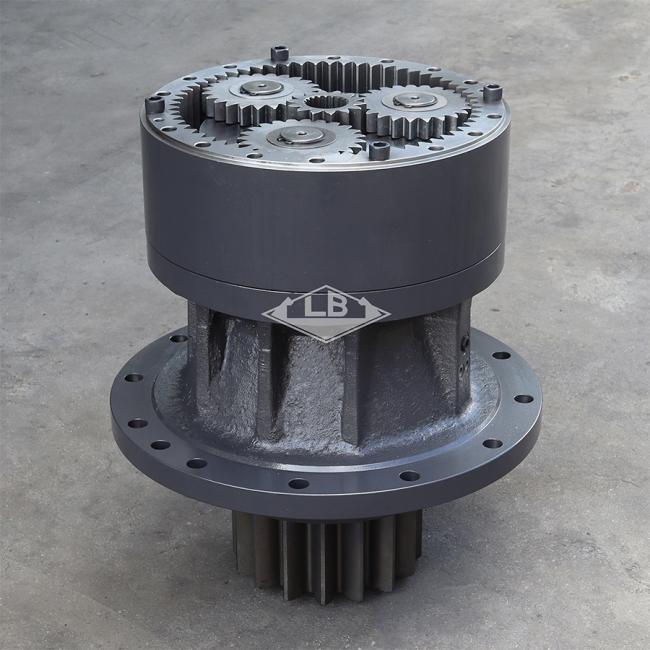

SH460 CX460 SWING REDUCER KTC0185 KTC10240 KTC10150 SWING GEARBOX

PRODUCT PARAMETERS

Part name	SH460 CX460 Swing gearbox
Equipment	Apply to Sumitomo, Case EXCAVATOR
Part no.	KTC0185 KTC10240 KTC10150
NO.1 sun gear spline teeth	20 splines
Swing pinion shaft teeth	16T
Item condition	New
Logo	LB
Gross weight	474 KG
MOQ	1 pc

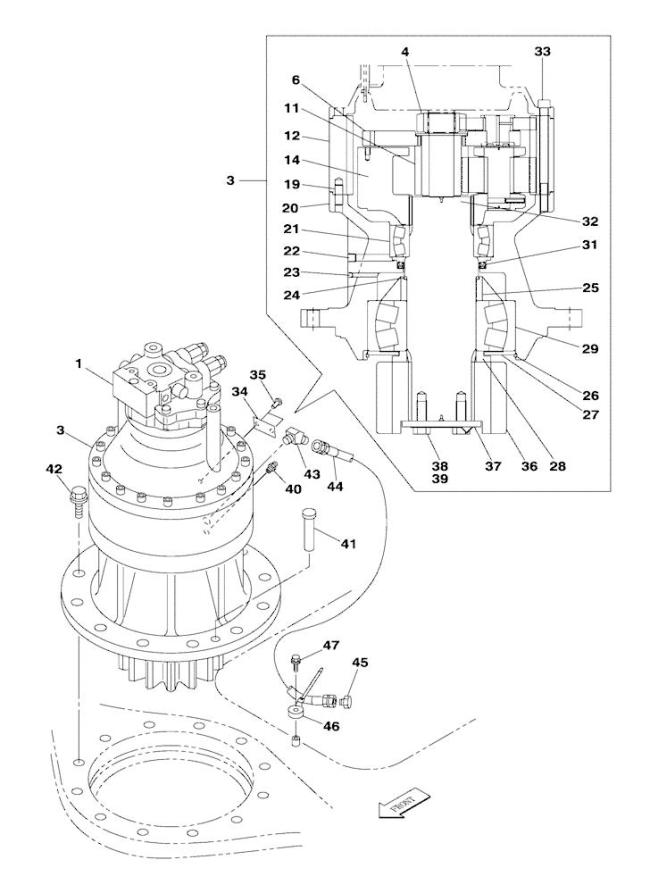

Parts on group (CX470C) - CRAWLER EXCAVATOR - TIER 4 (NA) (9/11-7/16):

Pos.	Part No	Qty	Parts name	Comments
1.	KTC0171	[1]	MOTOR, HYDRAULIC	SUM
1.	KTC0171R	[1]	REMAN-HYD MOTOR	RAC CX470C CRAWLER EXCAVATOR, TIER 4 (NA) (9/11-)
1.	KTC0171C	[1]	CORE-MOTOR HYDRAULIC	RAC Return Number
3.	KTC10150	[1]	GEAR REDUCTION UNIT	SUM Superseded by part number: KTC10240
3.	KTC10240R	[1]	REMAN-REDUCTION UNIT	RAC CX470C CRAWLER EXCAVATOR - TIER 4 (NA) (9/11-), Reman for New PN KTC10150
3.	KTC10240C	[1]	CORE-REDUCTION UNIT	RAC Return Number
4.	KTC10070	[1]	SUN GEAR	SUM (NO 1)
5.	KTC10090	[1]	SHAFT, PLANETARY CAR	SUM CARRIER, PLANETARY, NO 1, Incl 6 - 10
6.	NSS	[1]	NOT SOLD SEPARAT	CON CARRIER, PINION, PLANETARY NO 1
7.	NSS	[3]	NOT SOLD SEPARAT	CON GEAR, NO 1
8.	NSS	[3]	NOT SOLD SEPARAT	CON PIN, PLANETARY NO 1
9.	KTC0156	[3]	PLATE	SUM WASHER, GEAR PLANETARY Superseded by part number: KTC10210, KTC0182
10.	NSS	[1]	NOT SOLD SEPARAT	CON WASHER, THRUST
11.	KTC10080	[1]	SUN GEAR	SUM (NO 2)
12.	KTC0166	[1]	RING GEAR	SUM
14.	KTC10210	[1]	PINION CARRIER	SUM CARRIER, PLANETARY, NO 2, Incl 15 - 19
15.	NSS	[4]	NOT SOLD SEPARAT	CON CARRIER, PINION, PLANETARY NO 2
16.	NSS	[4]	NOT SOLD SEPARAT	CON GEAR, NO 2
17.	NSS	[4]	NOT SOLD SEPARAT	CON PIN, PLANETARY NO 2
18.	338W100Z040B	[4]	COTTER PIN	SUM
19.	KTC0155	[4]	PIN	SUM
20.	KTC0170	[1]	HOUSING	SUM
21.	KTC0150	[1]	BEARING,130mm ID x 210mm OD x 64mm W	SUM
22.	150824A1	[1]	PLUG	SUM
23.	158352A1	[2]	PLUG	SUM
24.	KTC0158	[1]	RETAINING WIRE	SUM
25.	KTC0151	[1]	SPACER	SUM
26.	KTC0159	[1]	RETAINING WIRE	SUM
27.	KTC0152	[1]	BEARING COVER	SUM
28.	KTC0154	[1]	SPACER	SUM
29.	KTC0190	[1]	BEARING,140mm ID x 300mm OD x 102mm W	SUM
30.	KHP1406	[1]	Grease
31.	KTC0153	[1]	OIL SEAL	SUM
32.	KTC0184	[1]	SHAFT ASSY.	SUM
33.	150237A1	[18]	BOLT,Hex Skt	SUM
34.	NSS	[1]	NOT SOLD SEPARAT	CON Name plate
35.	301-1413	[2]	DRIVE SCREW,Drive, #2 x 3/16"	CAS Superseded by part number: 86542114
36.	KTC0149	[1]	GEAR	SUM
37.	195A160RN	[1]	WASHER	SUM
38.	167071A1	[1]	RETAINER	SUM
39.	627-20050	[2]	BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd	CAS Superseded by part number: 9843590
40.	153630A1	[1]	LUBE NIPPLE	SUM
41.	150317A1	[1]	HEADED PIN,24mm OD x 90mm L	SUM
42.	166477A1	[12]	BOLT,Sems, M24 x 90mm	SUM
43.	150915A1	[1]	ADAPTER	SUM
44.	KRJ5902	[1]	HYDRAULIC HOSE,12.70 mm ID x 360.00 mm	SUM
45.	KHP0578	[1]	PLUG	SUM
46.	KHR2584	[1]	CLAMP	SUM
47.	KHJ1215	[1]	BOLT,Spcl	SUM
