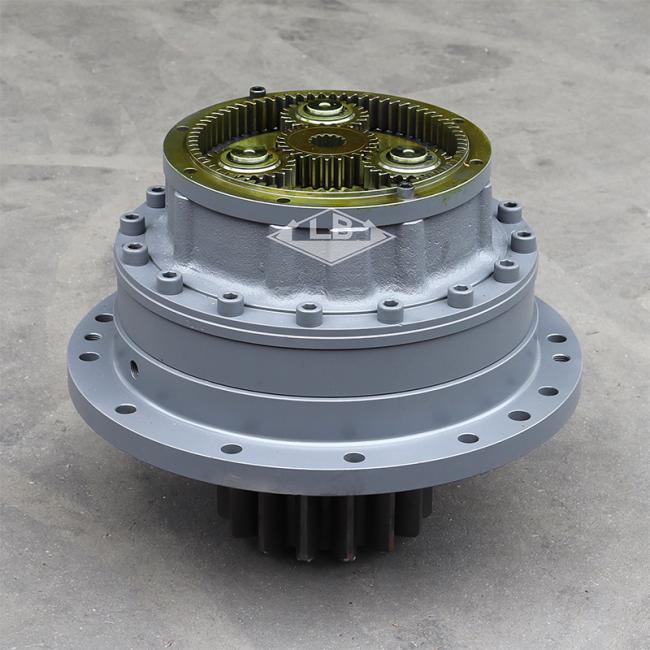

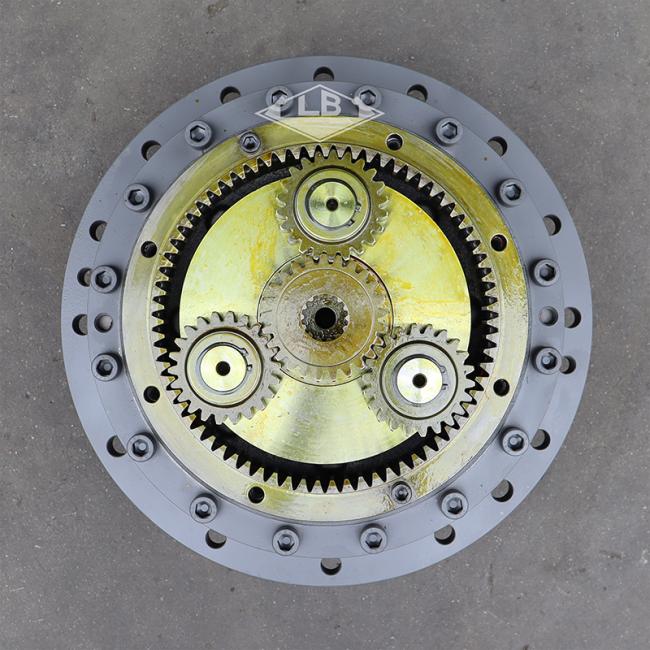

VOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction Gearbox

Name: VOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction Gearbox
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

VOLVO EC240 swing reduction gearbox VOE14503783 VOE14542163 VOE7118-34100 EC240 swing gearbox

PRODUCT PARAMETERS

Product Descriptio

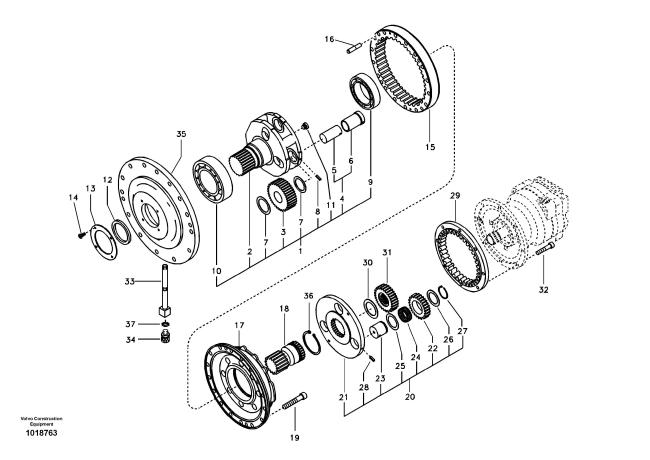

Pos.	Part No	Qty	Parts name	Comments
	VOE14542163	[1]	Gearbox
1.	VOE14518703	[1]	Carrier
2.	SA1036-00530	[1]	Crankshaft
3.	SA1036-00550	[3]	Planetary Gear
4.	SA1036-00610	[3]	Pin
5.	SA7118-34231	[3]	Pin
6.	SA7118-34260	[3]	Bushing
7.	SA1036-00620	[6]	Washer
8.	SA9325-10012	[3]	Spring pin
9.	VOE14640028	[1]	Bearing
10.	SA1036-00710	[1]	Bearing
11.	SA1036-00630	[1]	Knob
12.	VOE14558605	[1]	Seal	SER NO 10001-13402 SER NO 80001-81085
	VOE14558605	[1]	Seal	SER NO 13403- SER NO 81086-
13.	SA7118-01560	[1]	Plate
14.	SA7114-12590	[4]	Screw
15.	VOE14504206	[1]	Gear
16.	SA1036-00700	[4]	Pin
17.	SA7118-34340	[1]	Casing
18.	VOE14510986	[1]	Sun gear
19.	VOE984369	[16]	Hex. socket screw
20.	VOE14550896	[1]	Carrier
21.	SA7118-34410	[1]	Carrier
22.	SA7118-34420	[3]	Planetary Gear
23.	VOE14550897	[3]	Pin
24.	SA7118-34440	[3]	Needle bearing
25.	SA7118-34450	[3]	Washer
26.	SA7118-34460	[3]	Washer
27.	SA9541-01085	[3]	Retaining ring
28.	SA9325-08010	[3]	Spring pin
29.	SA7118-34470	[1]	Gear
30.	SA7118-34480	[1]	Washer
31.	SA7118-34490	[1]	Sun gear
32.	VOE984354	[8]	Hex. socket screw
33.	VOE14514384	[1]	Pipe	SER NO 10001-12701 SER NO 30001-30199
	VOE14540597	[1]	Pipe	SER NO 12702- SER NO 30200-
34.	SA1012-01500	[1]	Valve
35.		[1]	Casing
36.	SA9541-01085	[1]	Retaining ring
37.	VOE949329	[1]	Gasket
100.	VOE14526215	[1]	Overhaul kit
200.	VOE14627726	[1]	Housing	inc 15,16,35
