9262017 9277217 ZX120 Swing Gearbox ZX120 Swing Reduction Assy
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

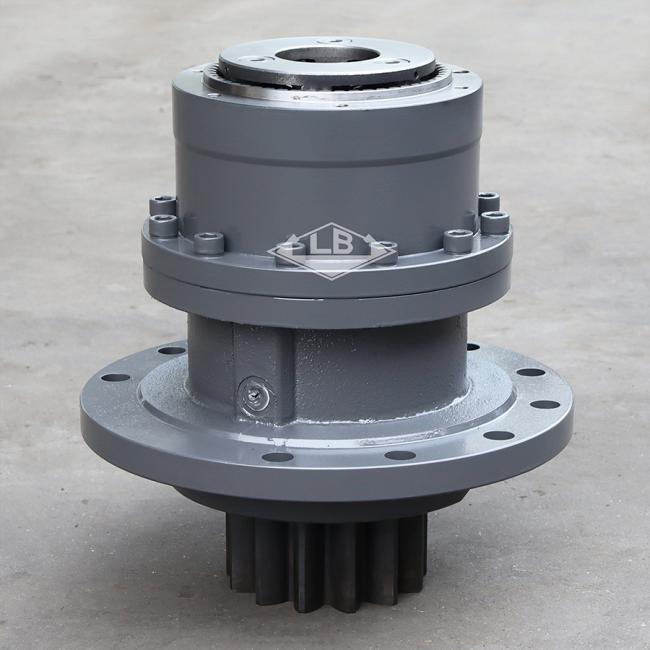

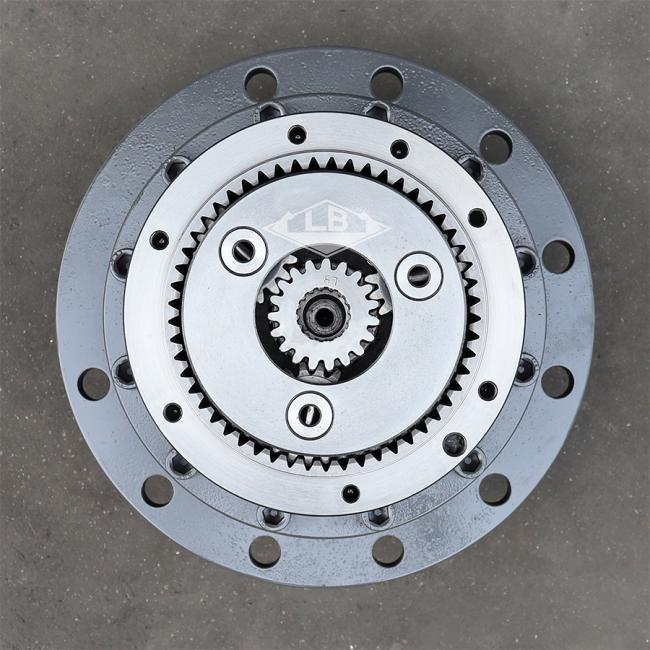

ZX120 swing reduction assy 9262017 9277217 ZX120 Swing gearbox
PRODUCT PARAMETERS
| Part name | ZX120 swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9262017 9277217 | |||||
| NO.1 sun gear spline teeth | 16 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 105 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio

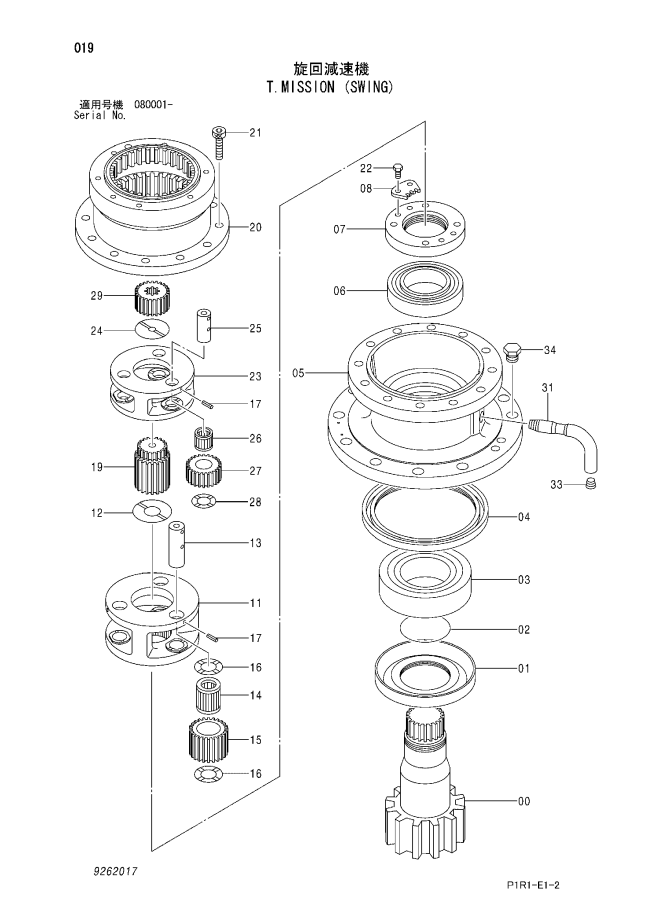

Parts on group T.MISSION (SWING):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9262017 | [1] | T.MISSION (SWING) | I 9277217 <for assembly of machine> | |
| (9277217) | [1] | T.MISSION (SWING) | <for transportation> | |
| 00. | 2053848 | [1] | SHAFT;PROP. | |
| 01. | 3083710 | [1] | SLEEVE | |
| 02. | A811095 | [1] | O-RING | |
| 03. | 4430041 | [1] | BRG.;ROL. | |
| 04. | 4411143 | [1] | SEAL;OIL | |
| 05. | 1033421 | [1] | HOUSING | |
| 06. | 4408119 | [1] | BRG.;ROL. | |
| 07. | 3083674 | [1] | NUT | |
| 08. | 4407745 | [1] | PLATE;LOCK | |
| 11. | 2042965 | [1] | CARRIER | |
| 12. | 4176070 | [1] | PLATE;THRUST | |
| 13. | 4408102 | [3] | PIN | |
| 14. | 4414855 | [3] | BRG.;NEEDLE | |
| 15. | 3084940 | [3] | GEAR;PLANETARY | |
| 16. | 4414833 | [6] | PLATE;THRUST | |
| 17. | 4116308 | [6] | PIN;SPRING | |
| 19. | 3092035 | [1] | GEAR;SUN | |
| 20. | 2045146 | [1] | GEAR;RING | |
| 21. | M341440 | [12] | BOLT;SOCKET | |
| 22. | J901016 | [2] | BOLT | |
| 23. | 2042964 | [1] | CARRIER | |
| 24. | 4244904 | [1] | PLATE;THRUST | |
| 25. | 4408122 | [3] | PIN | |
| 26. | 4430040 | [3] | BRG.;NEEDLE | |
| 27. | 3083741 | [3] | GEAR;PLANETARY | |
| 28. | 4408002 | [3] | PLATE;THRUST | |
| 29. | 3083740 | [1] | GEAR;SUN | |
| 31. | 3087949 | [1] | PIPE | |
| 33. | 94-2012 | [1] | PLUG | |
| 34. | 4445352 | [1] | PLUG |
