31NA-10150 31NA-10151 31NA-10152 Swing Drive Gearbox R375-7 R385-9 R380-9 Swing Reducer

Name: 31NA-10150 31NA-10151 31NA-10152 Swing Drive Gearbox R375-7 R385-9 R380-9 Swing Reducer
Brand: Jiangmen Liba euipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

R375-7 R385-9 R380-9 R360-7 Swing Reducer 31NA-10150 31NA-10151 31NA-10152 31QA-10140 31QA-10141 R360 SWING GEARBOX

PRODUCT PARAMETERS

Part name	R375-7 R385-9 R380-9 R360-7 Swing gearbox
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	31NA-10150 31QA-10140
NO.1 sun gear spline teeth	20 splines
Swing pinion shaft teeth	15T
Item condition	New
Logo	LB
Gross weight	345 KG
MOQ	1 pc

Product Description

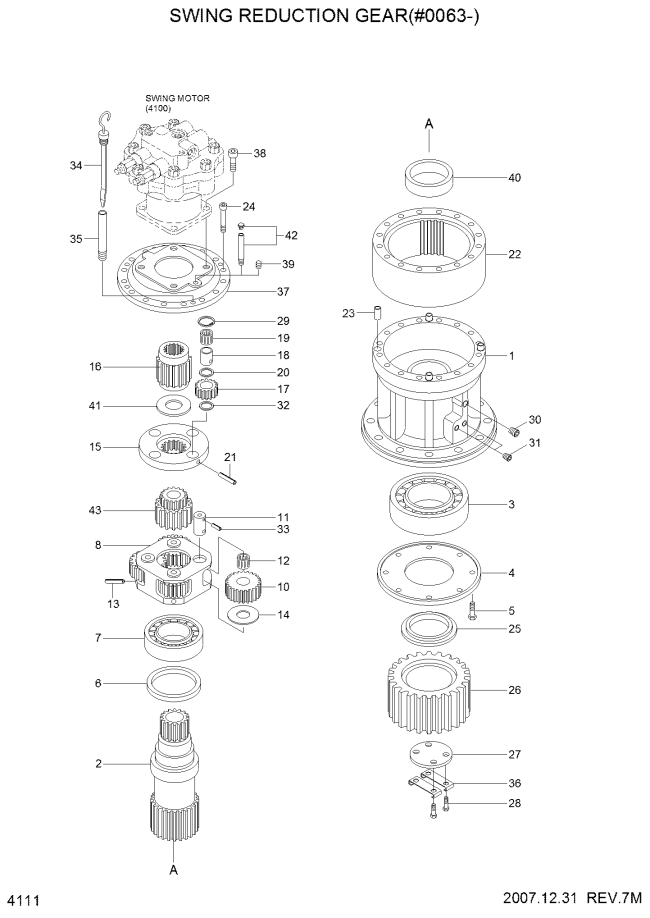

Parts on group SWING REDUCTION GEAR(#0063-):

Pos.	Part No	Qty	Parts name	Comments
*-2.	31NA-10150	[1]	SWING REDUCTION GEAR
1.	XKAQ-00144	[1]	CASING
2.	XKAQ-00145	[1]	SHAFT-DRIVE
2.	XKAQ-00300	[1]	SHAFT-DRIVE	SEE ILLUST
3.	XKAQ-00146	[1]	BEARING-ROLLER
4.	XKAQ-00147	[1]	PLATE-COVER
5.	XKAQ-00148	[8]	BOLT-HEX
6.	XKAQ-00149	[1]	SEAL-OIL
7.	XKAQ-00027	[1]	BEARING-ROLLER
*.	XKAQ-00263	[1]	CARRIER ASSY-NO 2
*.	XKAQ-00264	[1]	CARRIER ASSY-NO 2	SEE ILLUST
8.	XKAQ-00150	[1]	CARRIER 2
8.	XKAQ-00251	[1]	CARRIER 2	SEE ILLUST
10.	XKAQ-00152	[4]	GEAR-PLANET 2
10.	XKAQ-00253	[4]	GEAR-PLANET 2	SEE ILLUST
11.	XKAQ-00153	[4]	PIN ASSY 2
11.	XKAQ-00254	[4]	PIN 2	SEE ILLUST
N12.	@	[4]	BUSHING
N12.	@	[4]	BUSHING	SEE ILLUST
N33.	@	[4]	PIN-SPRING
13.	XKAQ-00050	[4]	PIN-SPRING
14.	XKAQ-00156	[4]	WASHER-THRUST
*.	XKAQ-00261	[1]	CARRIER ASSY-NO 1
*.	XKAQ-00262	[1]	CARRIER ASSY-NO 1	SEE ILLUST
15.	XKAQ-00157	[1]	CARRIER 1
15.	XKAQ-00325	[1]	CARRIER 1
16.	XKAQ-00158	[1]	GEAR-SUN 1
16.	XKAQ-00257	[1]	GEAR-SUN 1	SEE ILLUST
17.	XKAQ-00774	[4]	GEAR-PLANET 1
18.	XKAQ-00019	[4]	PIN 1
19.	XKAQ-00030	[4]	CAGE-NEEDLE
20.	XKAQ-00040	[4]	PLATE-SIDE 2
21.	XKAQ-00048	[4]	PIN-SPRING
22.	XKAQ-00160	[1]	GEAR-RING
22.	XKAQ-00258	[1]	GEAR-RING	SEE ILLUST
23.	XKAQ-00072	[4]	PIN-KNOCK
24.	XKAQ-00161	[16]	BOLT-SOCKET
24.	XKAQ-00259	[16]	BOLT-SOCKET	SEE ILLUST
25.	XKAQ-00162	[1]	SPACER
26.	XKAQ-00163	[1]	GEAR-PINION
27.	XKAQ-00164	[1]	PLATE-LOCK
27.	XKAQ-00299	[1]	PLATE-LOCK	SEE ILLUST
28.	XKAQ-00042	[2]	BOLT-HEX
28.	XKAQ-00042	[4]	BOLT-HEX	SEE ILLUST
29.	XKAQ-00041	[1]	RING-STOP
30.	XKAQ-00273	[1]	PLUG
31.	XKAQ-00274	[2]	PLUG
32.	XKAQ-00057	[4]	PLATE-SIDE 1
34.	XKAQ-00166	[1]	BAR-GAUGE
35.	XKAQ-00167	[1]	PIPE-GAUGE
36.	XKAQ-00168	[1]	WASHER-LOCK
36.	XKAQ-00292	[2]	WASHER-LOCK	SEE ILLUST
37.	XKAQ-00169	[1]	COVER
38.	XKAQ-00170	[4]	BOLT-SOCKET
39.	XKAQ-00155	[1]	PLUG-SOCKET
40.	XKAQ-00171	[1]	RING-SPACER
41.	XKAQ-00076	[1]	PLATE-THRUST
41.	XKAQ-00260	[1]	RING-THRUST	SEE ILLUST
42.	XKAQ-00143	[1]	POST-AIR BREATHER
43.	XKAQ-00151	[1]	GEAR-SUN 2
43.	XKAQ-00252	[1]	GEAR-SUN 2	SEE ILLUST
N.	@	[1]	NOT SUPPLIED PARTS
