Volvo EC700 Swing Gearbox VOE14609494 VOE14619958 VOE14633288
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

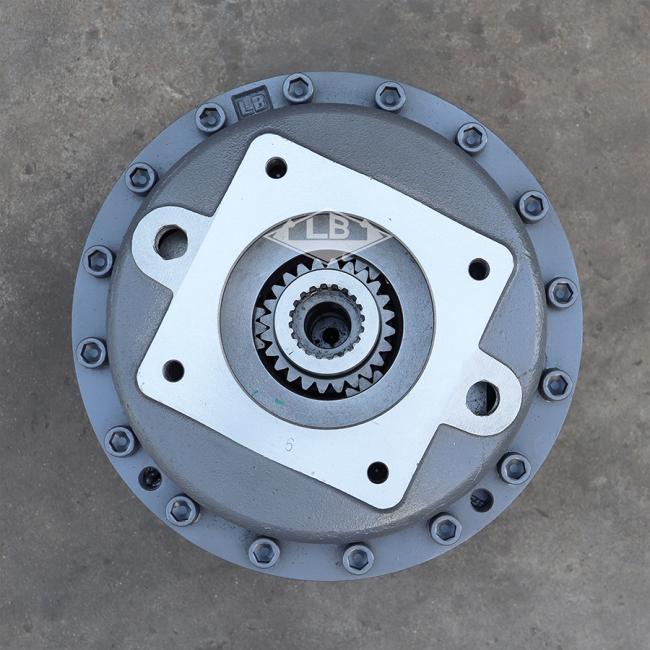

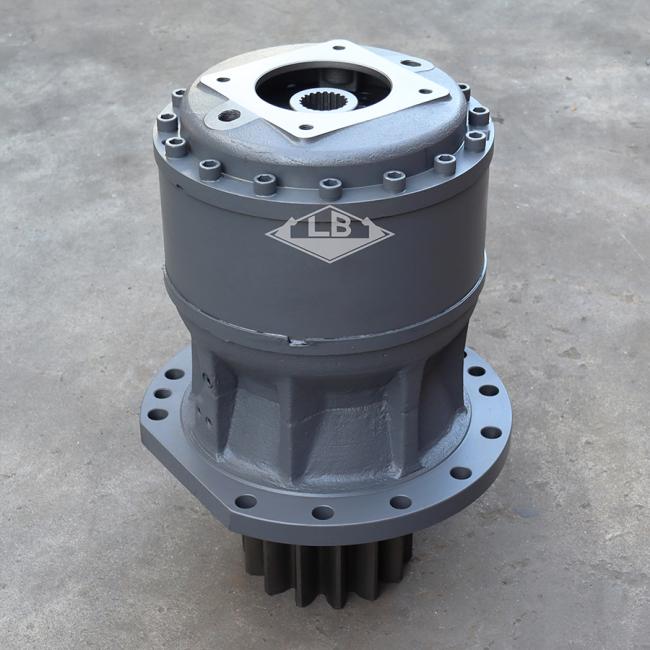

VOE14609494 VOE14619958 VOE14633288 Volvo EC700 Swing gearbox
PRODUCT PARAMETERS
| Part name | EC700 Swing gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14609494 VOE14619958 VOE14633288 | |||||
| NO.1 sun gear spline teeth | 20 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 325 KG | |||||
| MOQ | 1 pc | |||||

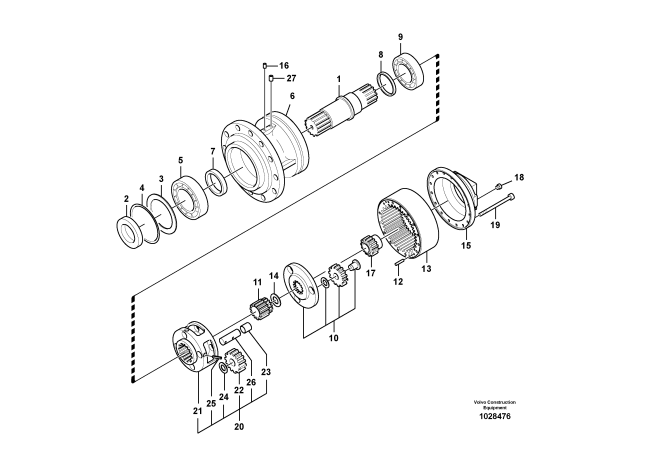

Parts on group Swing gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14609494 | [1] | Swing gearbox | ||
| 1. | VOE14596604 | [1] | Shaft | |
| 2. | VOE14596608 | [1] | Collar | |
| 3. | VOE14596607 | [1] | Plate | |
| 4. | VOE14596610 | [1] | Ring | |
| 5. | VOE14547261 | [1] | Bearing | |
| 6. | VOE14535296 | [1] | Case | |
| 7. | VOE14596605 | [1] | Collar | |
| 8. | VOE14596611 | [1] | Seal | |
| 9. | VOE14640028 | [1] | Bearing | |
| 10. | VOE14609496 | [1] | Planet Carrier | |
| 11. | VOE14596620 | [1] | Gear | |
| 12. | SA9324-21317 | [4] | Pin | |
| 13. | VOE14596613 | [1] | Gear | |
| 14. | VOE14596621 | [1] | Thrust washer | |
| 15. | VOE14596630 | [1] | Cover | |
| 16. | SA9415-43012 | [1] | Plug | |
| 17. | VOE14609499 | [1] | Gear | |
| 18. | SA9415-43052 | [1] | Plug | |
| 19. | VOE993162 | [16] | Hex. socket screw | |
| 20. | VOE14596614 | [1] | Planet carrier | |
| 21. | SA8230-22660 | [1] | Planet carrier | |
| 22. | VOE14596616 | [4] | Gear | |
| 23. | VOE14596617 | [4] | Bushing | |
| 24. | VOE14596618 | [4] | Washer | |
| 25. | VOE952004 | [4] | Spring pin | |
| 26. | VOE14596619 | [4] | Pin | |
| 27. | SA9415-43042 | [1] | Plug | |
| 100. | VOE14568717 | [1] | Overhaul kit |
